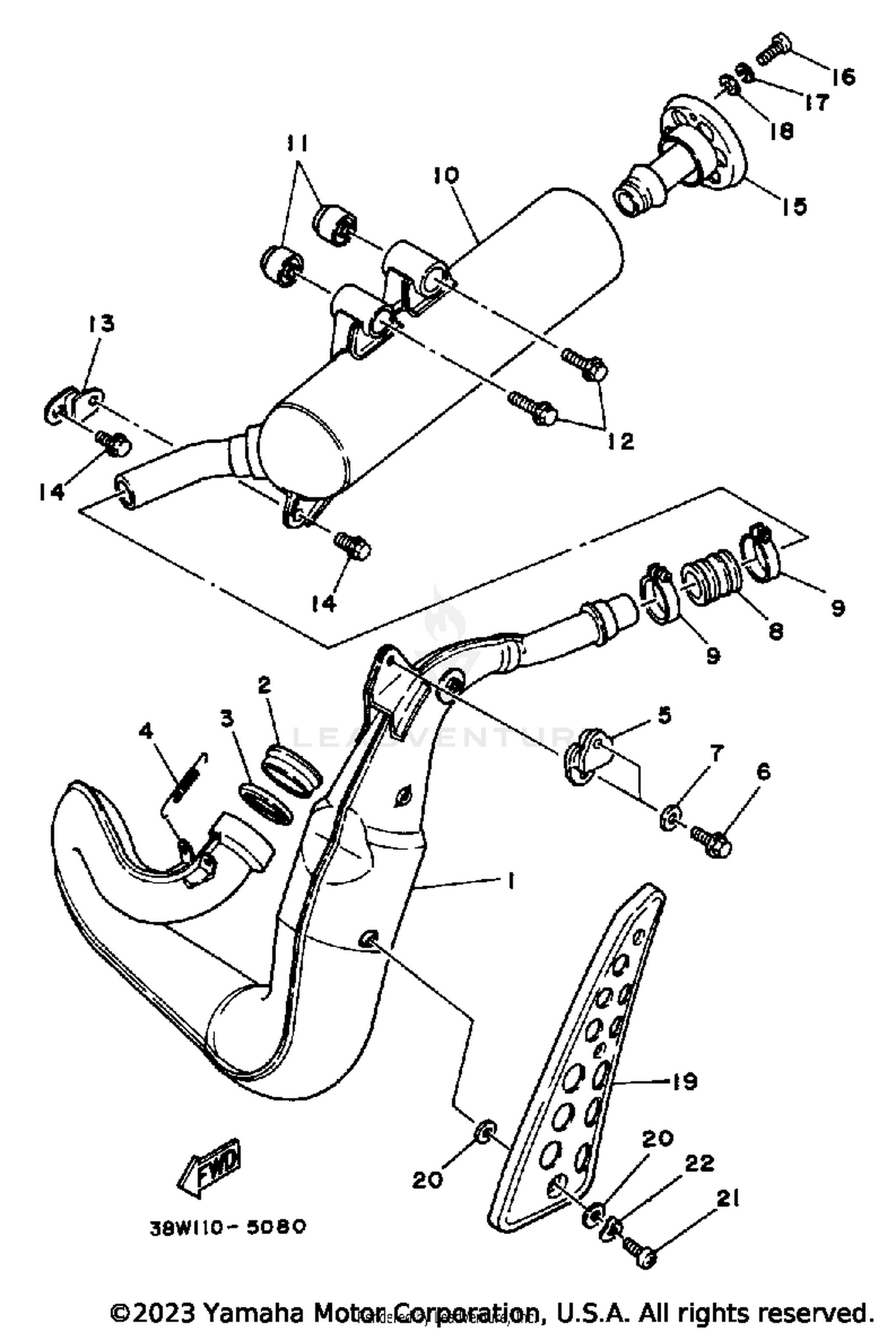

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
38W-14610-00-00
|
$386.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXST PIPE
38W-14613-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#3
GASKET, EXHAUST PIPE
3R4-14613-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, MUFFLER 1
24Y-14771-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#6
BOLT,FLANGE (JN5)
95816-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-081H4-00
Superseded by 90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, MUFFLER
1M1-14714-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE (38W)
90460-44272-00
|
$20.99 | ||
|
Unavailable |
|||
|
#10
SILENCER, EXHAUST
38W-14753-00-00
|
$182.99 | ||
|
Unavailable |
|||
|
#11
DAMPER, FOOTREST
29L-27414-01-00
Superseded by 29L-27414-02-00
|
$29.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95816-08040-00
Superseded by 95817-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, OUTLET
38W-14752-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#16
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTC, EXHAUST PIPE
38W-14628-00-00
|
$41.64 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
