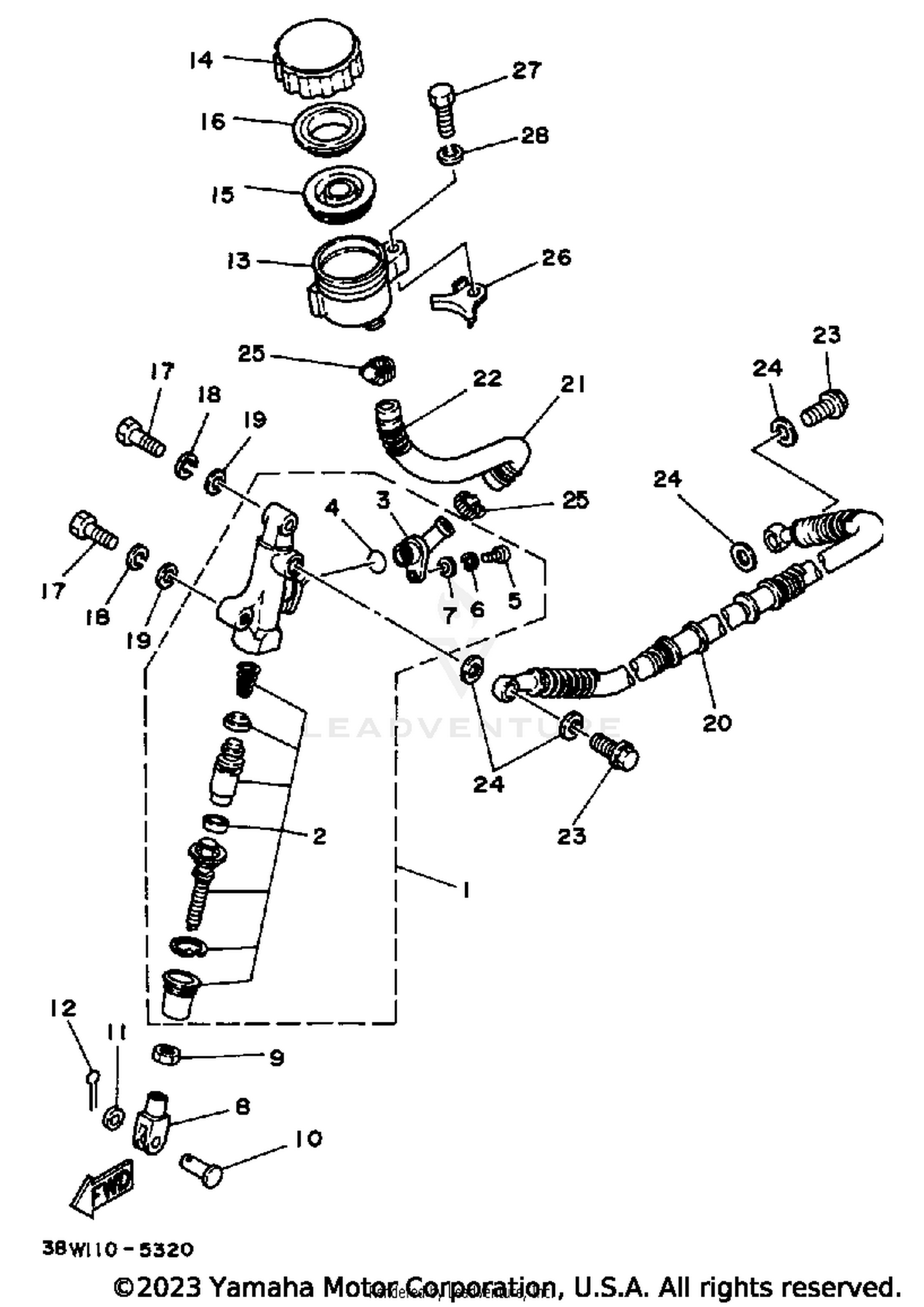

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
29L-25850-51-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
29L-W0042-50-00
Superseded by 4GY-W0042-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT
29L-2582A-50-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#8
JOINT
1J3-27222-01-00
Superseded by 47X-27222-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (91402-16015)
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK, RESERVOIR
38W-25894-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, BRAKE 1
38W-25872-51-00
|
$71.99 | ||
|
Unavailable |
|||
|
#21
HOSE, RESERVOIR
38W-25895-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#22
SPRING, COMPRESSION
90501-103A6-00
|
$2.37 | ||
|
Unavailable |
|||
|
#23
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP, HOSE
90460-12268-00
|
$17.49 | ||
|
Unavailable |
|||
|
#26
HOLDER, RESERVETANK
38W-2582E-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#27
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
