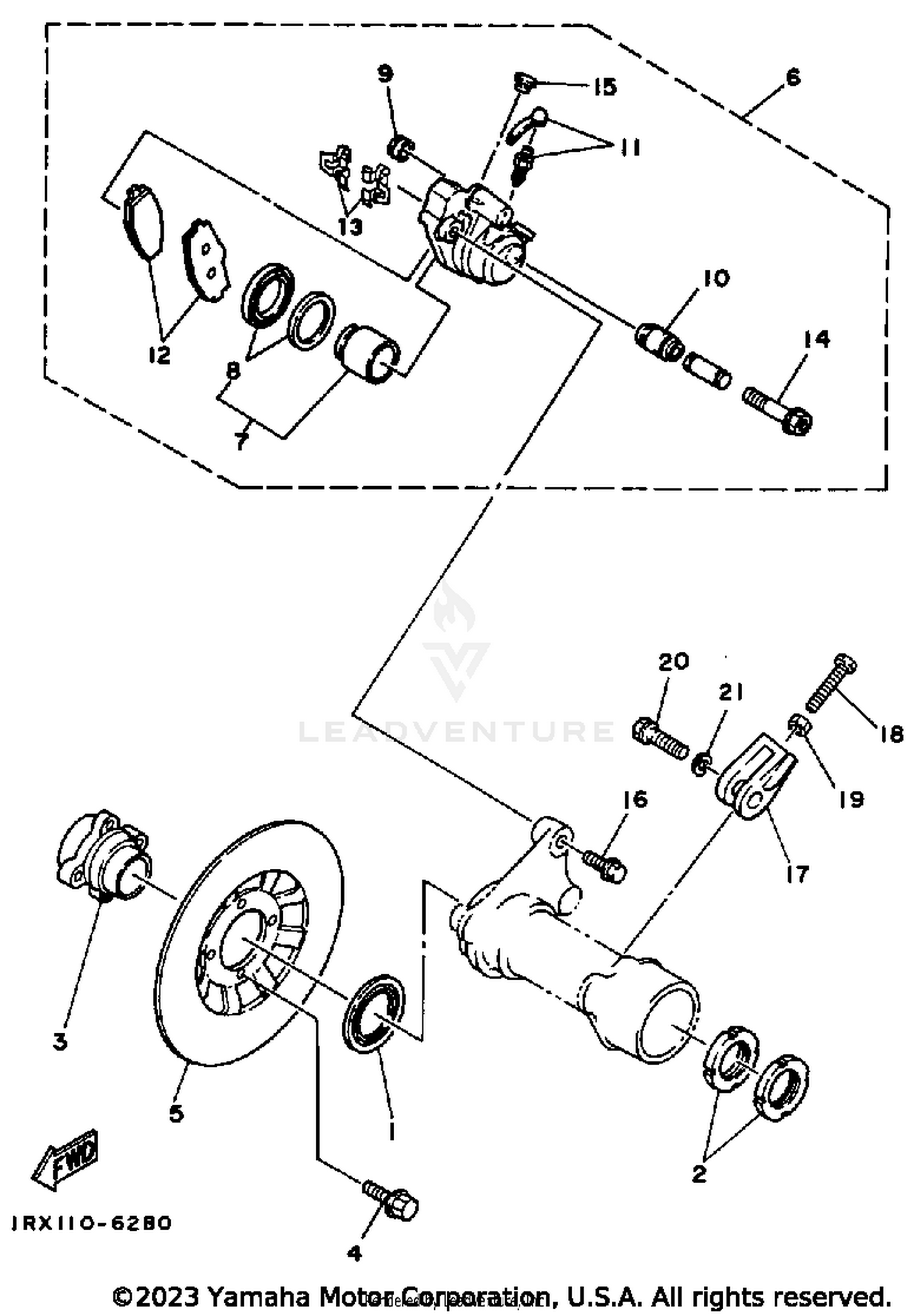

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, HUB DUST
38W-25367-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#2
NUT (38W)
90179-33482-00
|
$7.49 | ||
|
Unavailable |
|||
|
#3
BRACKET, DISC
38W-25712-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#4
BOLT, WASHER BASED
90105-08233-00
|
$4.80 | ||
|
Unavailable |
|||
|
#5
DISC, BRAKE
5G0-25831-00-00
Superseded by 1UY-25831-50-00
|
$129.99 | ||
|
Unavailable |
|||
|
#6
CALIPER ASSEMBLY
34X-2580T-00-00
|
$280.99 | ||
|
Unavailable |
|||
|
#7
PISTON ASSY, CALIPER
34X-W0057-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CALIPER SEAL KIT
34X-W0047-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT 2
34X-25937-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE PAD KIT
34X-W0046-00-00
Superseded by 34X-W0046-02-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUPPORT, PAD
34X-25919-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
2GV-25926-00-00
Superseded by 5KN-25926-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, INDICATOR
34X-25845-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WASHER/BASED
90105-10356-00
|
$3.30 | ||
|
Unavailable |
|||
|
#17
PULLER, CHAIN 1
1UY-25388-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-08615-00
Superseded by 90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT (6L2)
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, W/WASHER (38W)
90119-10109-00
|
$2.95 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-104G0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
