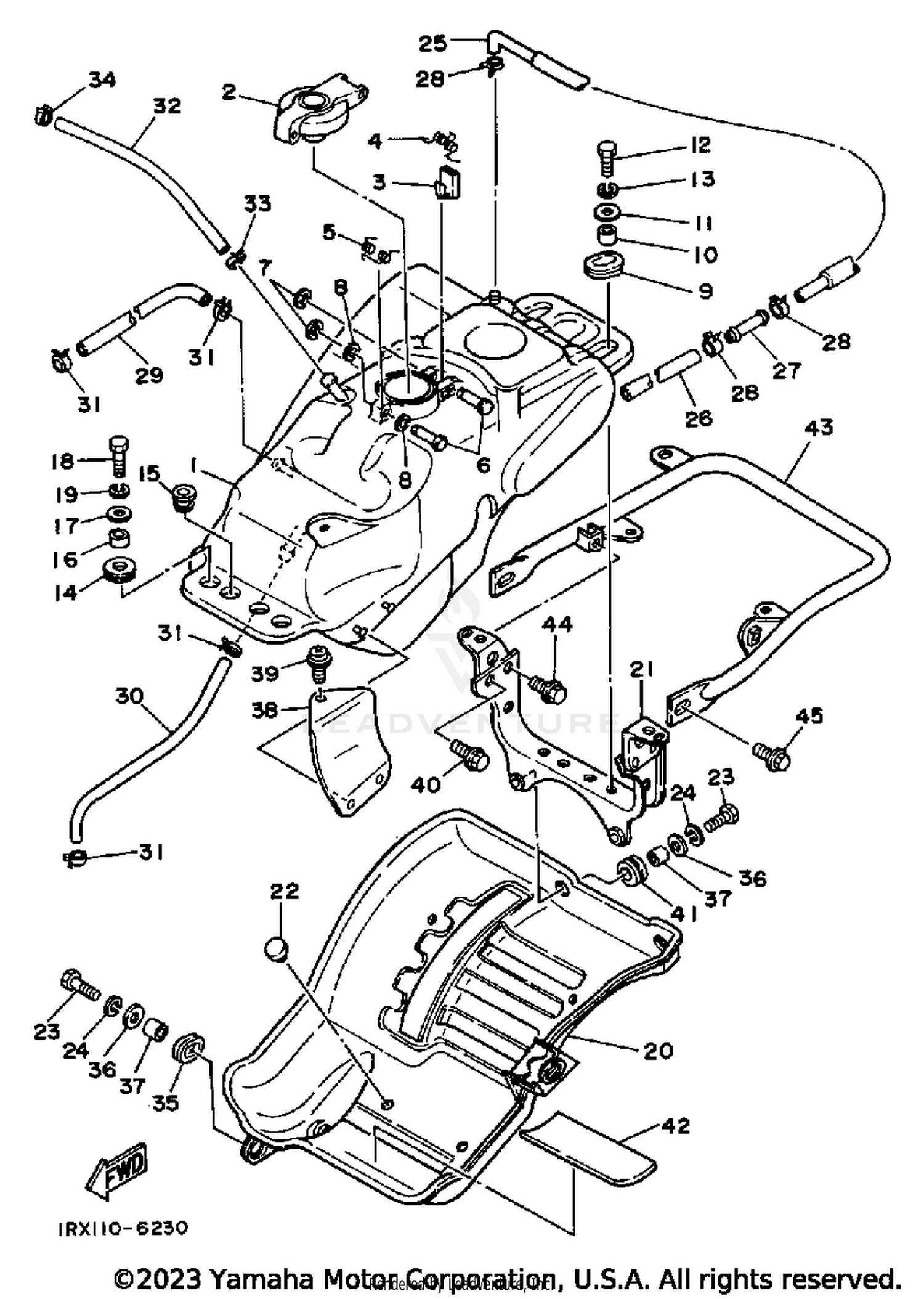

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
38W-24111-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSEMBLY
38W-24610-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#3
HOOK
83M-24628-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-10715-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-08353-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
90249-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, E-TYPE
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-01400-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-18171-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-07598-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Unavailable |
|||
|
#19
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#20
PROTECTOR, FUEL TNK
38W-24141-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#21
BRACKET, FUEL TNK 2
1RX-24192-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#22
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, OVERFLOW
38W-24318-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#26
HOSE (L675)
90445-09120-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, JOINT 1
8H8-24376-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-09026-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE, FUEL 1
38W-24311-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#30
HOSE (L)
90445-11152-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 3
38W-24313-00-00
|
$9.50 | ||
|
Unavailable |
|||
|
#33
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET (38W)
90480-01420-00
|
$2.08 | ||
|
Unavailable |
|||
|
#36
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-060M1-00
Superseded by 90387-06241-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
TRIM, COVER PANEL
38W-2414H-00-00
|
$15.48 | ||
|
Unavailable |
|||
|
#39
SCREW, WITH WASHER
90159-06058-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
GROMMET
90480-16113-00
|
$2.15 | ||
|
Unavailable |
|||
|
#42
DAMPER
38W-2414G-00-00
Superseded by 11H-21747-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#43
BUMPER, REAR 1 (38W-28421-00)
38W-28421-10-00
|
$80.99 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Unavailable |
|||
|
#45
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
