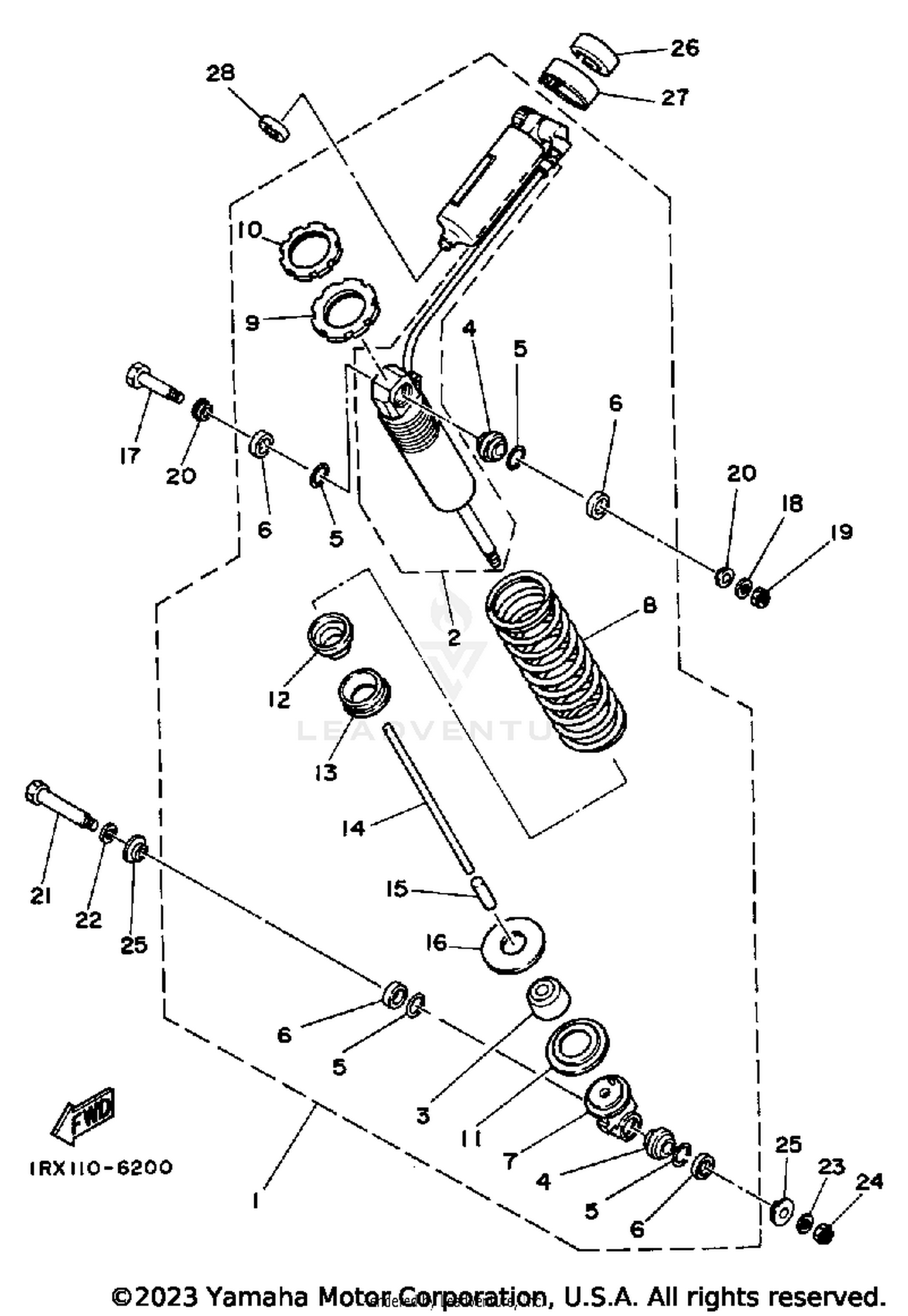

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY REARASSEMBLY,
1RX-22210-00-6W
|
$757.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSEMBLY
1RX-22401-00-00
|
$443.99 | ||
|
Unavailable |
|||
|
#3
BUMP, STOP
50T-22493-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#4
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93104-18077-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, UPPER ASSEMBLY
38W-22209-09-00
|
$90.99 | ||
|
Unavailable |
|||
|
#8
SPRING, SHOCK STD
1RX-22212-00-6W
|
$59.94 | ||
|
Unavailable |
|||
|
#8
SPRING, SHOCK HARD
1RX-22212-20-6W
|
$137.99 | ||
|
Unavailable |
|||
|
#8
SPRING, SHOCK SOFT
1RX-22212-10-6W
|
$73.79 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING LOWER
38W-22223-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, COVER
38W-22215-00-00
Superseded by 1RK-22215-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, SPRING 1
22W-22214-01-00
Superseded by 3P6-22214-10-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL,DUST
23X-22475-00-00
Superseded by 23X-22475-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#13
CAP, CASE
38W-22472-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#14
ROD, PUSH
38W-22489-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL
93605-20204-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
SEAT 1
38W-22424-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#17
BOLT
90109-10704-00
|
$11.49 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-127G8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-102A6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
COLLAR
90387-126H8-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, SUB TANK
24X-22261-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, SUB TANK
24X-22262-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#28
GROMMET
90480-25381-00
|
$5.49 | ||
|
Unavailable |
|||
