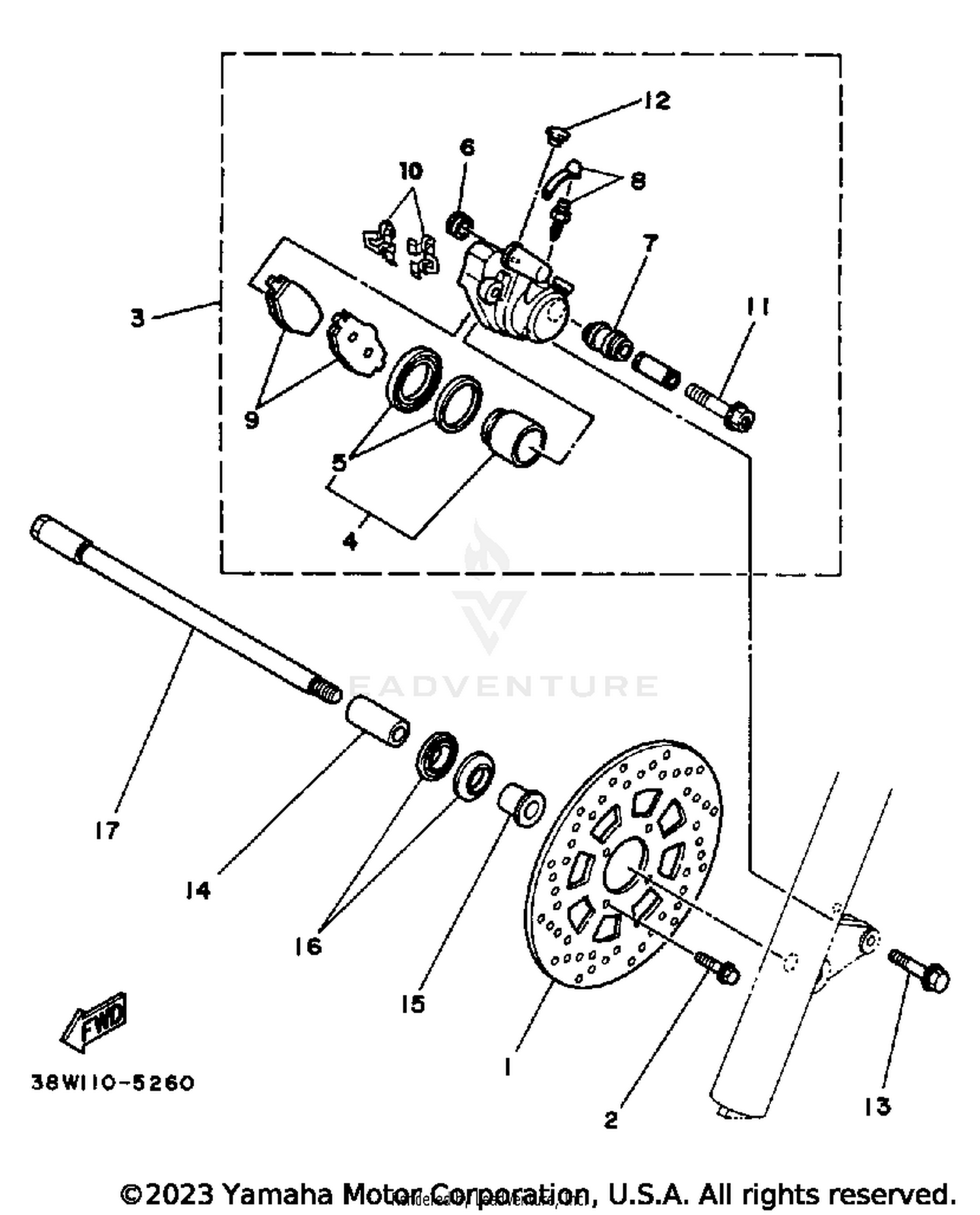

Front Brake-caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC,BRAKE
38W-25831-00-00
Superseded by 3FY-2582W-00-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY
3BN-2580T-01-00
Superseded by 34X-2580T-00-00
|
$280.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSY, CALIPER
34X-W0057-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
34X-W0047-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
34X-25937-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT
3BN-W0045-01-00
Superseded by 3BN-25805-02-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
34X-25919-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
2GV-25926-00-00
Superseded by 5KN-25926-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, INDICATOR
34X-25845-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10316-00
Superseded by 90105-10778-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-151L4-00
|
$4.37 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-151L5-00
|
$11.99 | ||
|
Unavailable |
|||
|
#16
COVER, HUB DUST
38W-25118-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#17
AXLE, WHEEL
38W-25181-00-00
|
$36.99 | ||
|
Unavailable |
|||
