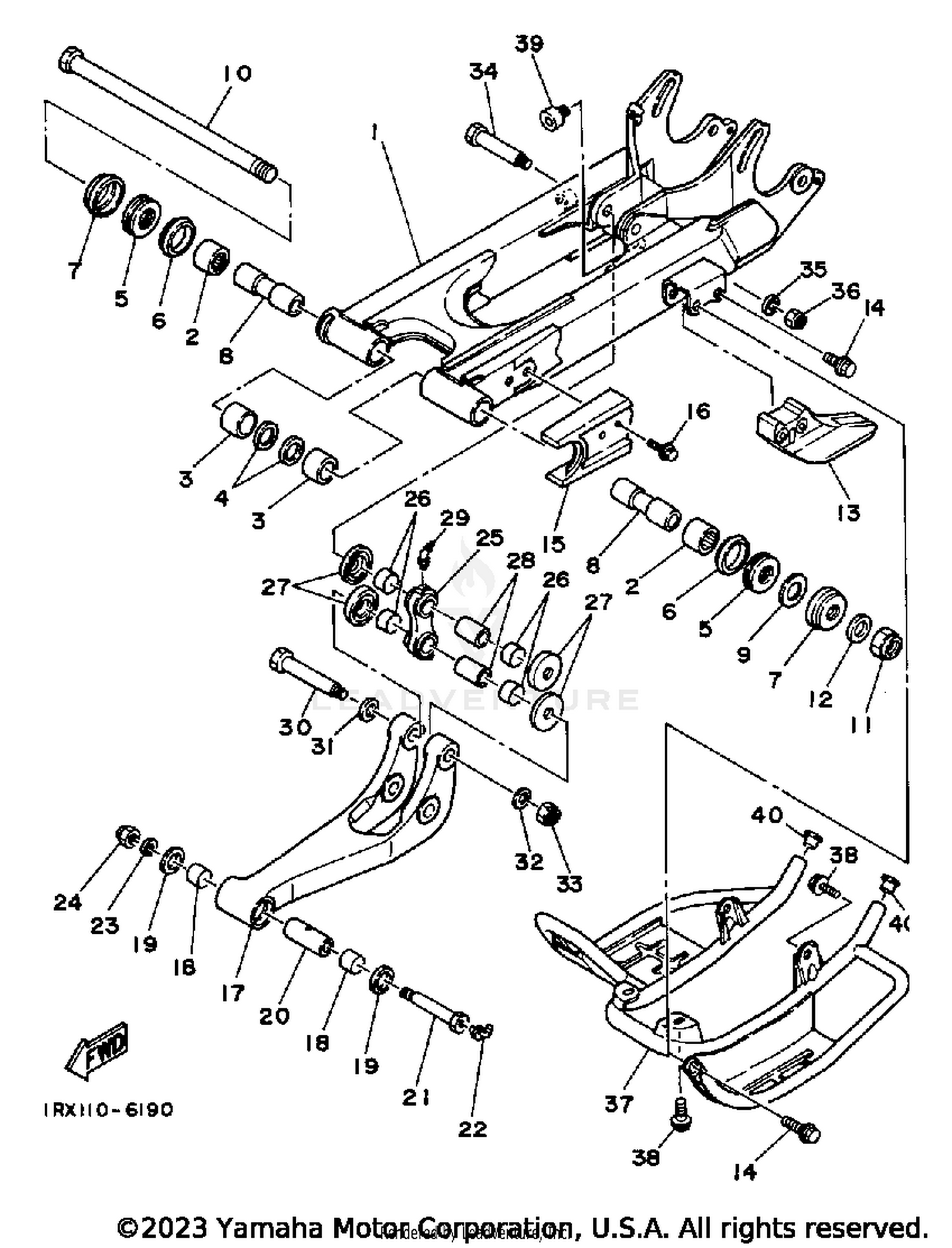

Swing Arm-suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1RX-22110-00-00
|
$239.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93317-32231-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, SOLID
90380-22111-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93342-22208-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, THRUST 2
3R4-22129-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SOLID
90381-16056-00
|
$11.99 | ||
|
Unavailable |
|||
|
#9
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
38W-22141-00-00
Superseded by 2GU-22141-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUPPORT, CHAIN
38W-22199-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-08045-00
Superseded by 95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
PORTECTOR, CHAIN
38W-22147-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM, RELAY
1RX-2217A-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#18
BUSH, FORMED
90383-20033-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-125N9-00
Superseded by 90387-12021-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-10752-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD, CONNECTING 1
1RX-2217F-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#26
BUSH, FORMED
90383-20032-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, THRUST 2
55K-22129-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-125N8-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NIPPLE, GREASE
93700-06009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90109-102A6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
BOLT
90109-102A7-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
COVER
38W-2219X-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
STOPPER, MAIN STAND
4N0-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
GROMMET
1J3-24742-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
