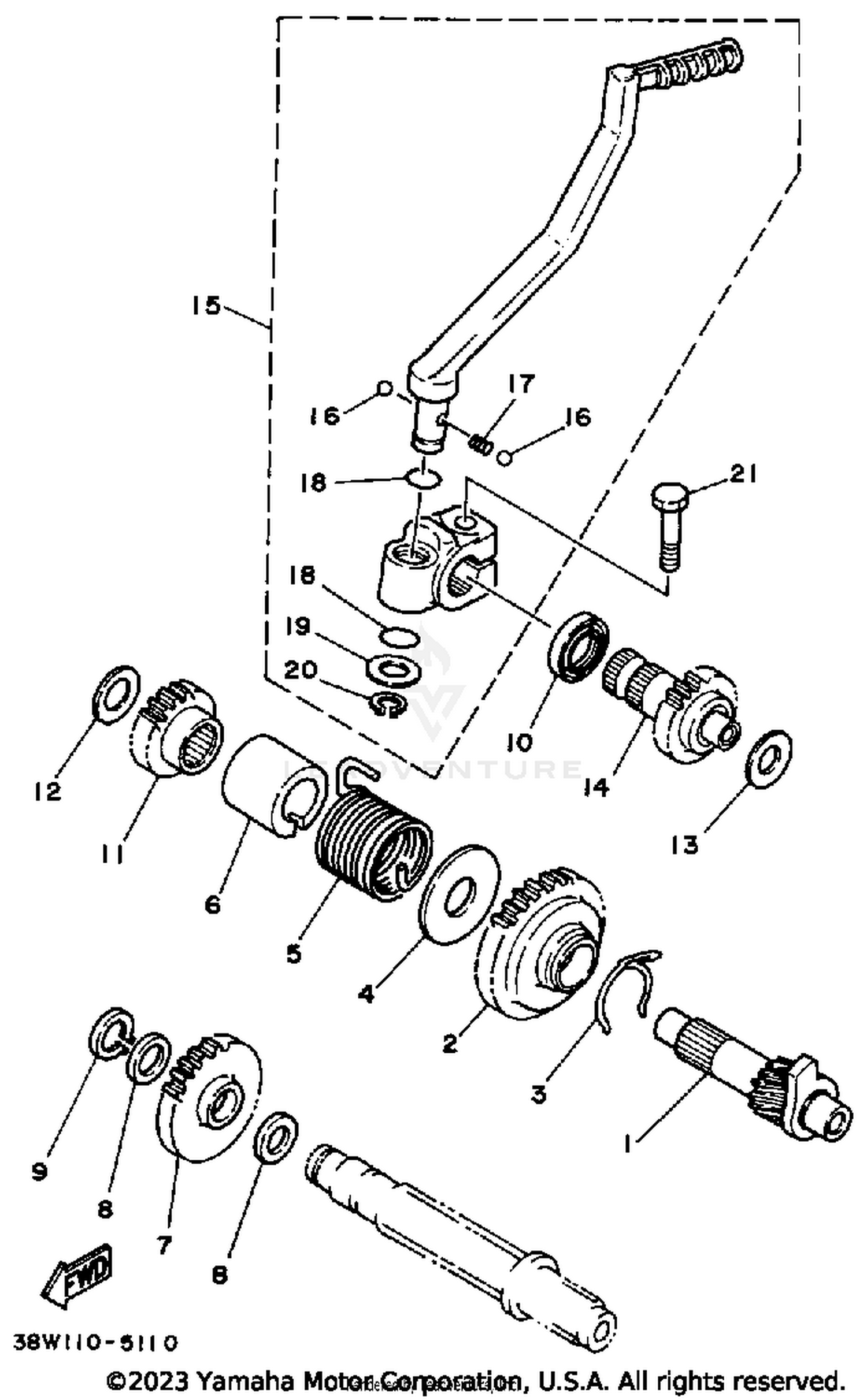

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
38W-15660-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#2
GEAR, KICK
53K-15641-00-00
|
$28.30 | ||
|
Unavailable |
|||
|
#3
CLIP
90468-26048-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-20358-00
|
$4.85 | ||
|
Unavailable |
|||
|
#5
SPRING, TORSION
90508-30422-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, SPRING
3R4-15664-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#7
GEAR, KICK IDLE
3R4-15651-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-17545-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-20309-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, KICK
38W-15641-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-13205-00
|
$4.37 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-150H2-00
Superseded by 90201-150U6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
KICK SHAFT ASSEMBLY
38W-15601-00-00
|
$49.33 | ||
|
Unavailable |
|||
|
#15
KICK CRANK ASSEMBLY
38W-15620-00-00
|
$196.85 | ||
|
Unavailable |
|||
|
#16
BALL 7-32
93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10589-00
|
$1.05 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-15340-00
Superseded by 90201-153A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
