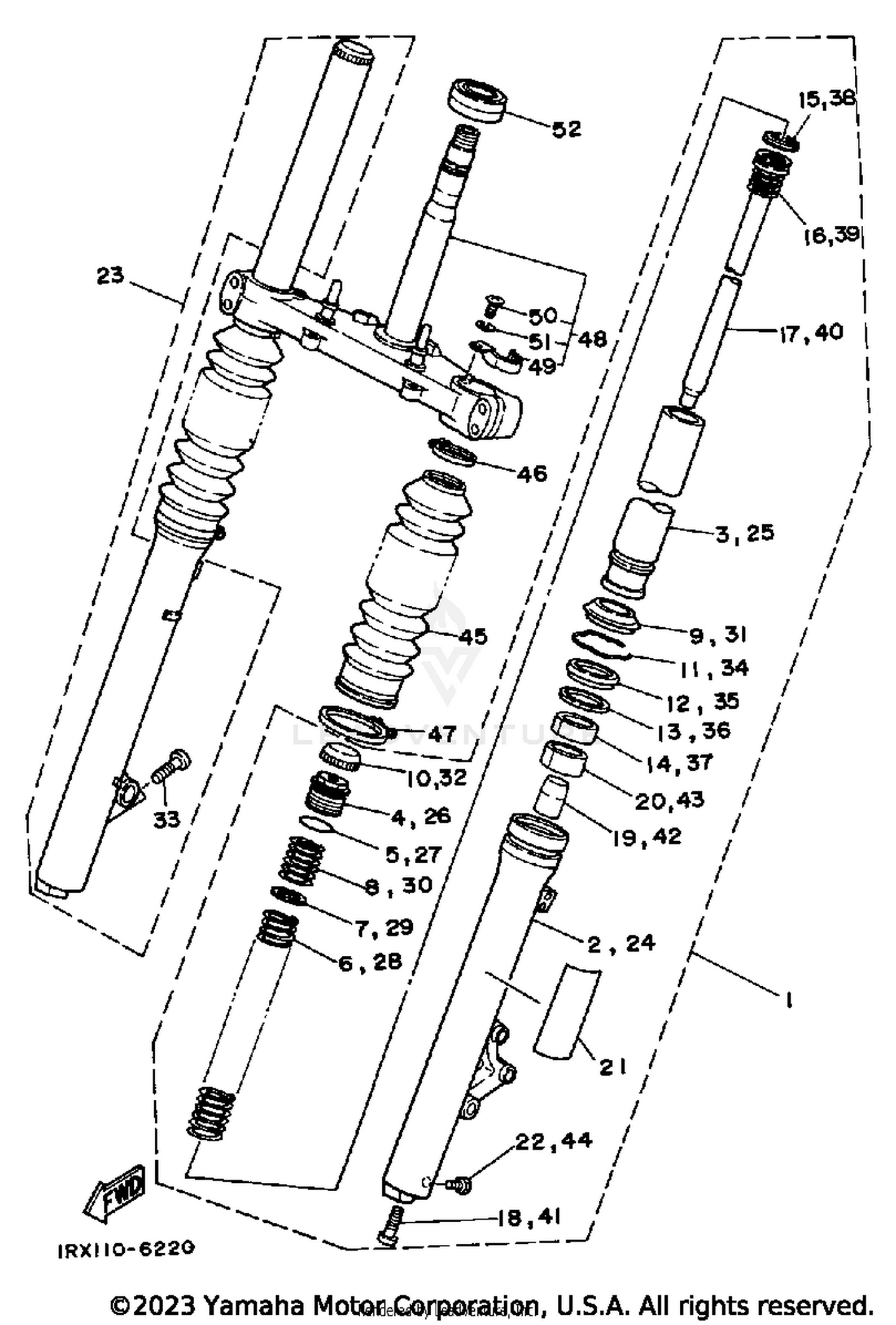

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L (L.H.)
1RX-23102-00-00
|
$509.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1RX-23126-00-00
|
$204.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE 1
1RX-23110-00-00
|
$170.99 | ||
|
Unavailable |
|||
|
#4
BOLT, CAP
1RX-23111-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#5
O-RING
1RX-23147-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
SPRING, FRONT FORK
1RX-23141-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING UPPER
1RX-23142-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#8
SPRING
1RX-23351-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#8
SPRING, FORK HARD
1RX-23351-20-00
|
$26.12 | ||
|
Unavailable |
|||
|
#8
SPRING, FORK SOFT
1RX-23351-10-00
|
$21.56 | ||
|
Unavailable |
|||
|
#9
SEAL, DUST
1KT-23144-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, AIR VALVE
1RX-23184-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#11
CLIP, OIL SEAL
1RX-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
1KT-23145-00-00
Superseded by 3XV-23145-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, OIL SEAL
1RX-23146-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
METAL, SLIDE 1
1KT-23125-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, PISTON FRTFRK
1RX-23157-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#16
SPRING, REBOUND
1RX-23151-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#17
PISTON, FRONT FORK
1RX-23171-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER, OIL LOCK
1RX-23166-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#20
METAL, SLIDE 1
1RX-23135-00-00
Superseded by 3MA-23135-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, CAUTION 2
5G2-23199-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#22
PLUG, DRAIN
2A6-23119-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
FRONT FORK ASSEMBLY R
1RX-23103-00-00
|
$302.99 | ||
|
Unavailable |
|||
|
#24
TUBE, OUTER 2
1RX-23136-00-00
|
$241.99 | ||
|
Unavailable |
|||
|
#25
INNER TUBE 1
1RX-23110-00-00
|
$170.99 | ||
|
Unavailable |
|||
|
#26
BOLT, CAP
1RX-23111-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#27
O-RING
1RX-23147-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#28
SPRING, FRONT FORK
1RX-23141-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#29
SEAT, SPRING UPPER
1RX-23142-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#30
SPRING
1RX-23351-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#30
SPRING, FORK SOFT
1RX-23351-10-00
|
$21.56 | ||
|
Unavailable |
|||
|
#30
SPRING, FORK HARD
1RX-23351-20-00
|
$26.12 | ||
|
Unavailable |
|||
|
#31
SEAL, DUST
1KT-23144-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#32
CAP, AIR VALVE
1RX-23184-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#33
BOLT
38W-23181-00-00
Superseded by 91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, OIL SEAL
1RX-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
OIL SEAL
1KT-23145-00-00
Superseded by 3XV-23145-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#36
WASHER, OIL SEAL
1RX-23146-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#37
METAL, SLIDE 1
1KT-23125-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#38
RING, PISTON FRTFRK
1RX-23157-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#39
SPRING, REBOUND
1RX-23151-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#40
PISTON, FRONT FORK
1RX-23171-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
SPACER, OIL LOCK
1RX-23166-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#43
METAL, SLIDE 1
1RX-23135-00-00
Superseded by 3MA-23135-10-00
|
$49.99 | ||
|
Unavailable |
|||
|
#44
PLUG, DRAIN
2A6-23119-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#45
BOOT, FRONT FORK
1RX-23191-00-00
|
$60.30 | ||
|
Unavailable |
|||
|
#46
BAND
1RX-23192-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#47
BAND
39W-23489-L0-00
Superseded by 3RW-23192-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
UNDER BRACKET
1RX-23340-10-00
|
$123.99 | ||
|
Unavailable |
|||
|
#49
HOLDER, BRAKE HOSE1
38W-25875-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#50
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#52
BEARING
93332-00008-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
