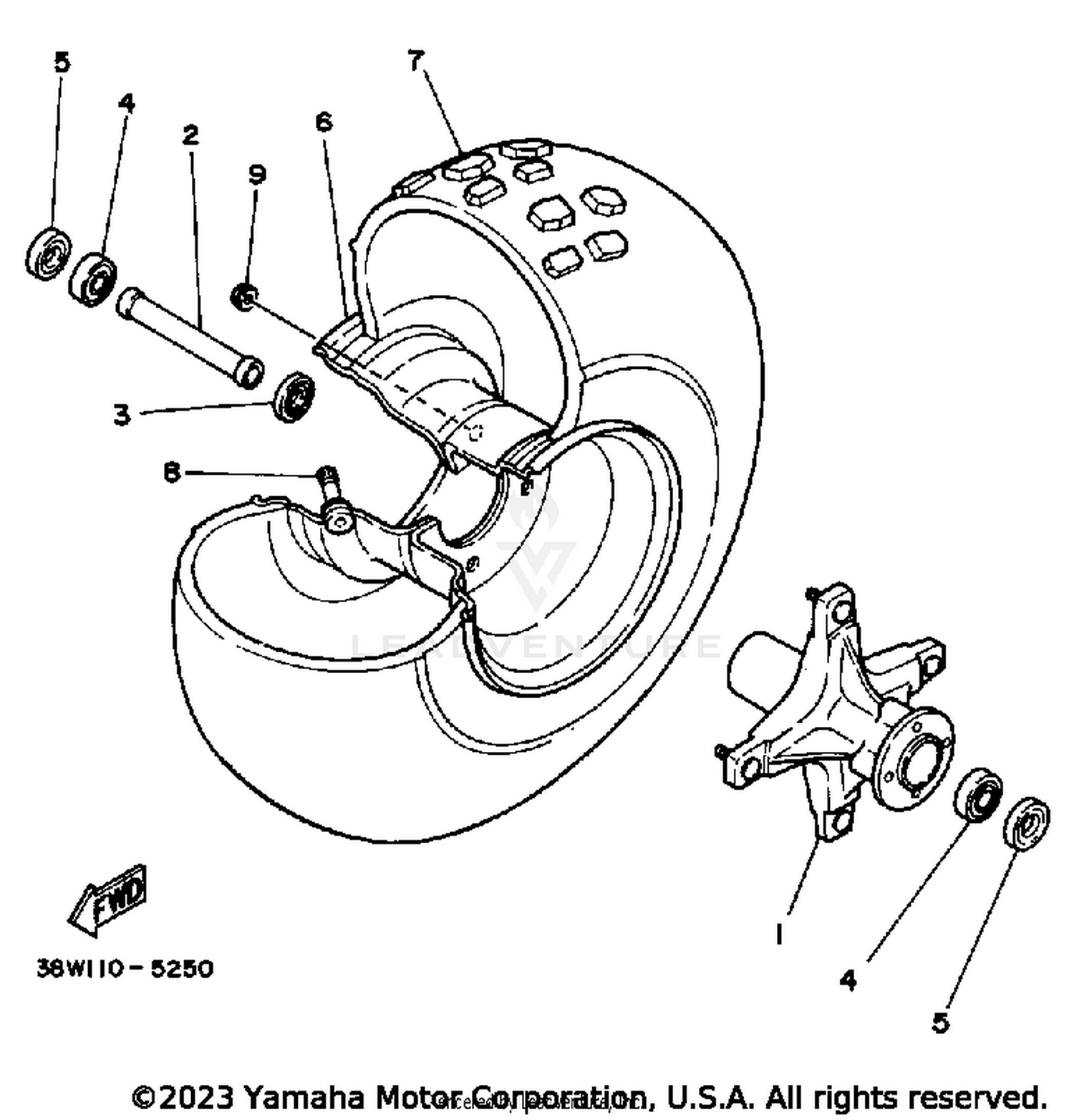

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
38W-25111-00-8L
|
$101.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15262-00
|
$6.67 | ||
|
Unavailable |
|||
|
#3
FLANGE,SPACER 1
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL, SD-TYPE
93102-22014-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRONT WHEEL COMP
38W-25180-10-7H
|
$321.99 | ||
|
Unavailable |
|||
|
#7
23X8-12 KT732 DUN
94108-127H2-00
|
$70.86 | ||
|
Unavailable |
|||
|
#8
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
