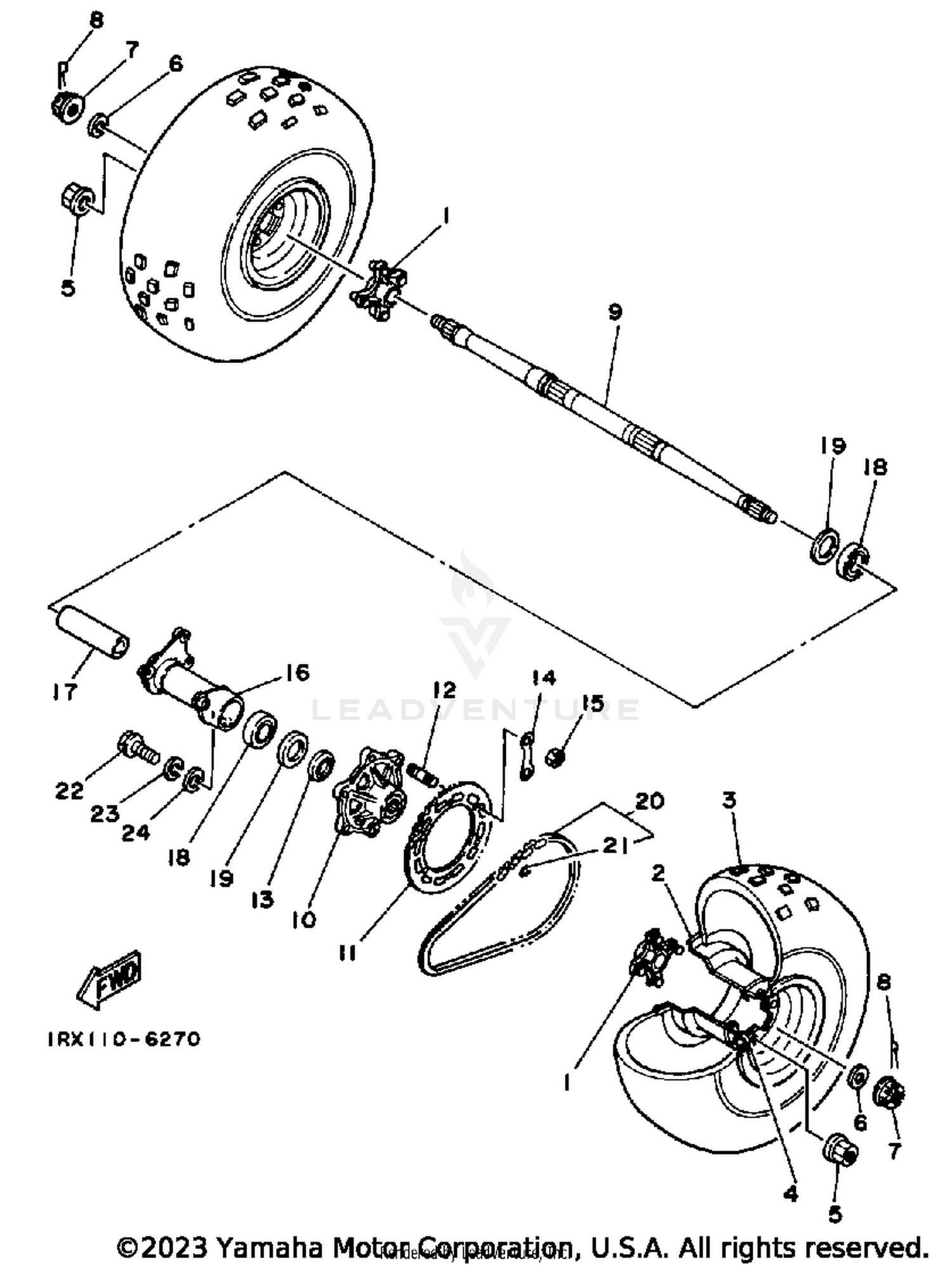

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL
2XJ-25383-00-00
Superseded by 2XJ-25383-50-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WHEEL, REAR
99999-02308-00
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
21X11-9 KT733 DUN
94111-097H1-00
|
$98.45 | ||
|
Unavailable |
|||
|
#4
UNAVAILABLE IN PRICE BOOK (9390
93990-00022-00
|
|||
|
Unavailable |
|||
|
#5
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-140A6-00
|
$4.70 | ||
|
Unavailable |
|||
|
#7
NUT, CASTLE
90171-14037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE, WHEEL
38W-25381-02-00
Superseded by 38W-25381-10-00
|
$527.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPROCKET AXLE
2XJ-25386-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVN 40T
583-25440-10-00
|
$34.99 | ||
|
Unavailable |
|||
|
#11
SPROCKET, DRIVN 42T
583-25442-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#11
SPROCKET, DRIVEN 44T
38W-25444-20-00
|
$46.99 | ||
|
Unavailable |
|||
|
#11
SPROCKET, DRIVN 46T
583-25446-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD
90116-08456-00
Superseded by 90116-08218-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, HUB DUST
38W-25367-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
WASHER
583-25412-00-00
Superseded by 2XJ-25412-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
90170-08193-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
HUB, REAR
38W-25311-00-35
|
$223.99 | ||
|
Unavailable |
|||
|
#17
SPACER
90560-35263-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93306-00705-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-43341-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CHAIN 520DS-98L
94580-40098-00
|
$224.99 | ||
|
Unavailable |
|||
|
#21
JOINT, CHAIN (34L) (D.I.D.50H
94680-50011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
BOLT, WASHER BASED
90105-12353-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
