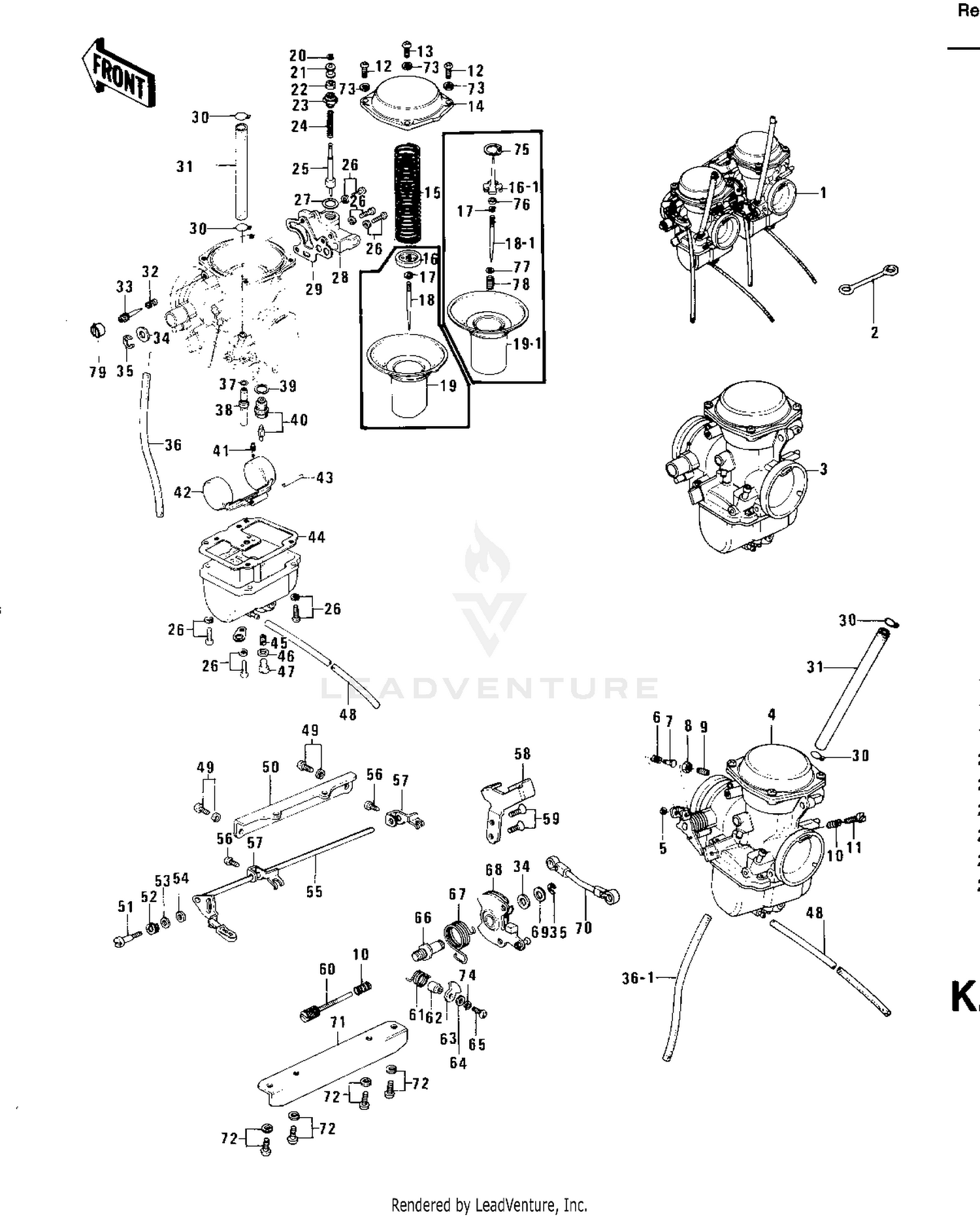

Carburetors (kz750-b4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
16001-249
|
$860.93 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY,
16001-1019
|
$876.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP,OVER FLOW PIPE
92037-134
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR,L.H
16001-284
|
$381.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR,L.H.
16001-1105
|
$400.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H
16001-285
|
$400.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H.
16001-1104
|
$306.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
16008-017
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING,LEVER
16040-019
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
16042-008
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX,5MM
312B0500
Superseded by 312AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,LEVER
16033-025
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,THROTTLE ADJST
16022-010
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
ADJUSTER,THROTTLE LEV
16021-020
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-PAN-CROS,5X14
220B0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-PAN+-
214B0516A
Superseded by 214AA0516
|
$0.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,DIAPHRAGM
16069-003
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,DIAPHRAGM
14030-1003
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,THROTTLE
16006-030
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,DIAPHRAGM
92081-1080
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE,NEEDLE
16055-010
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#16-1
HOLDER,JET NEEDLE
13091-1026
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
16008-014
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET NEEDLE
16009-070
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#18-1
JET NEEDLE,4HL12-3
16009-1016
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM
16059-004
|
$179.85 | ||
|
Available to order. Add to View Price |
|||
|
#19-1
DIAPHRAGM
16028-1001
|
$95.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
16076-003
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
16073-014
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER CAP,STARTER PL
16036-017
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP,STARTER PLUNGER
16012-020
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,STARTER PLUNGER
16013-008
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUNGER,STARTER
16016-019
|
$30.46 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-PAN-WS-CROS
16033-027
Superseded by 223AA0412
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,PLAIN
16039-041
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
UNAVAILABLE IN PRICE BOOK
16029-018
|
|||
|
Unavailable |
|||
|
#28
BODY,STARTER
16012-1004
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET-
16029-011
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE,FUEL
92059-130
|
$23.61 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING,PILOT AIR SCREW
16022-007
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW,PILOT AIR
16014-016
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW,PILOT ADJUST
16014-1008
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
16039-032
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
16008-015
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE,OVER FLOW
92059-085
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#36-1
HOSE,BREATHER,4.5X550
92059-1064
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#37
O RING,NEEDLE JET
16038-021
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#38
NEEDLE JET
16017-091
|
$35.19 | ||
|
Available to order. Add to View Price |
|||
|
#38
NEEDLE JET,Z-2
16017-1023
|
$22.63 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET,FLOAT VALVE
11009-1076
|
$4.78 | ||
|
Unavailable |
|||
|
#40
FLOAT VALVE ASSY
16030-026
|
$84.06 | ||
|
Available to order. Add to View Price |
|||
|
#41
PILOT JET,#45
92064-045
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#41
PILOT JET,#A30
92064-1021
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#42
FLOAT
16031-030
|
$61.82 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN,FLOAT
16032-003
Superseded by 16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#44
GASKET,FLOAT CHAMBER
16019-029
|
$29.41 | ||
|
Available to order. Add to View Price |
|||
|
#45
MAIN JET,#125
92063-143
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET-MAIN #115
92063-141
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#45
MAIN JET,#120
92063-142
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#45
MAIN JET,#130
92063-147
|
$11.26 | ||
|
Available to order. Add to View Price |
|||
|
#45
MAIN JET,#135
92063-148
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER,PLAIN
16039-036
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW
16033-022
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE,FUEL OVERFLOW
92059-127
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW,5X10
16033-028
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHAFT
16041-014
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW
16046-005
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#52
SPRING,F
16040-009
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER
16039-033
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER,PLAIN
16039-019
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#55
SHAFT,CHOKE LEVER
16041-1003
|
$18.66 | ||
|
Available to order. Add to View Price |
|||
|
#55
SHAFT,CHOKE LEVER
16041-1003
|
$18.66 | ||
|
Unavailable |
|||
|
#56
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#57
LEVER,CHOKE ADJUST
92037-1093
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#57
LEVER,CHOKE ADJUST
92037-1093
|
$12.50 | ||
|
Unavailable |
|||
|
#58
BRACKET
16070-004
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW,5X8
16033-024
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#60
THROTTLE ADJUSTER
16021-027
|
$13.14 | ||
|
Available to order. Add to View Price |
|||
|
#61
SPRING
16040-018
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#62
COLLAR
16073-012
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#63
LEVER
16063-010
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#64
WASHER,PLAIN
16039-038
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#65
SCREW-PAN HEAD,4X20
220E0420A
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#66
SHAFT
16041-015
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#67
SPRING,THROTTLE CABLE
16040-017
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#68
PULLY,THROTTLE CABLE
16074-004
|
$44.92 | ||
|
Available to order. Add to View Price |
|||
|
#69
WASHER,PLAIN
16039-037
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#70
JOINT
16046-008
|
$25.96 | ||
|
Available to order. Add to View Price |
|||
|
#71
PLATE
16055-011
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#72
SCREW
16033-026
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#73
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#74
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#75
CIRCLIP
92033-1009
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#76
RING,JET NEEDLE
92027-1115
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#77
WASHER,JET NEEDLE
92022-1123
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#78
SPRING,JET NEEDLE
92081-1126
|
$8.07 | ||
|
Available to order. Add to View Price |
|||
|
#79
CAP,LIMITER
11012-1046
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
