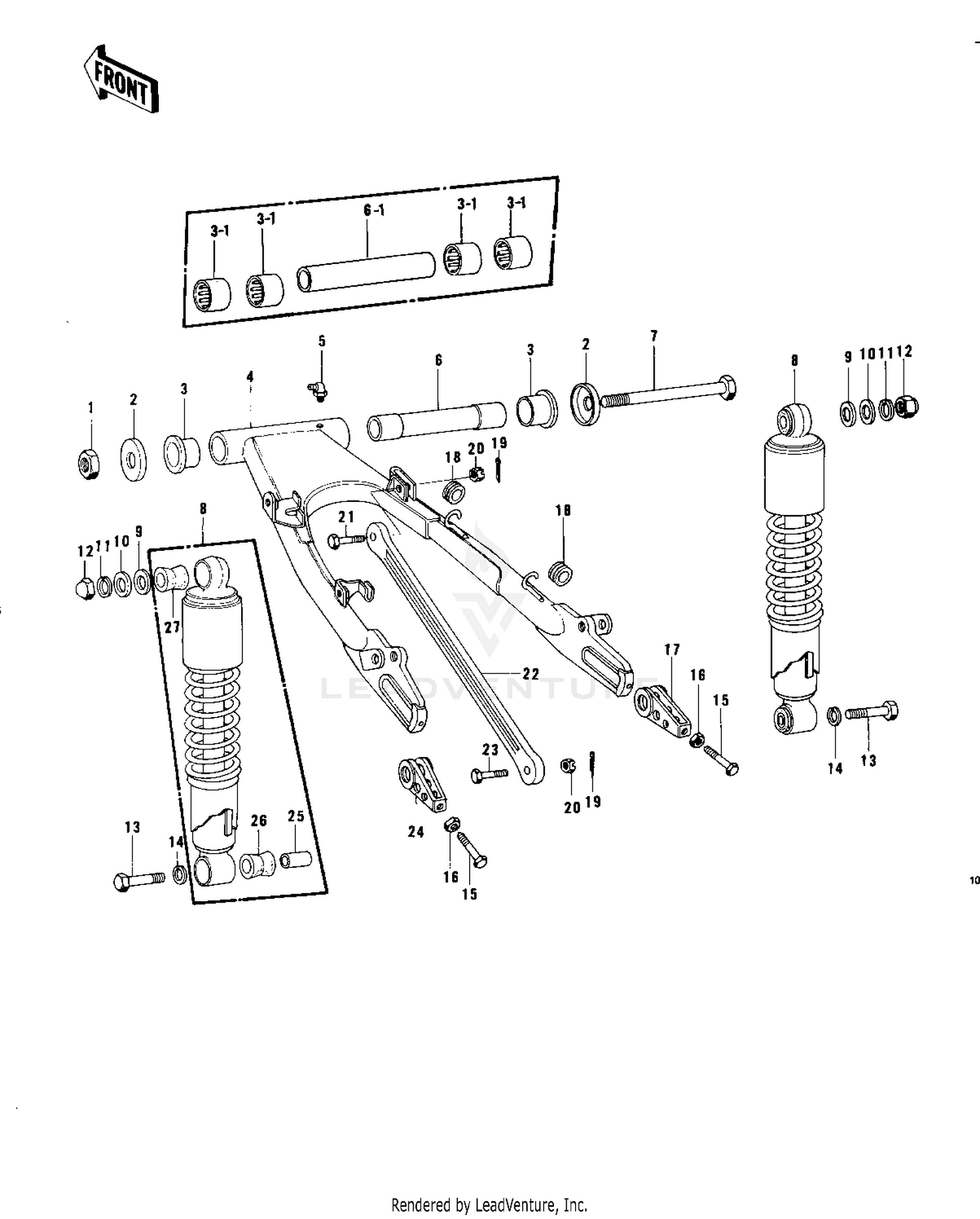

Swing Arm/shock Absorbers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-SELF LOCKING
92019-012
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,SWING ARM
33035-008
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,SWING ARM
33035-009
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING-SWING ARM
33033-009
|
$95.34 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
BEARING-NEEDLE,HK2216
92046-1115
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM,SWING
33001-1004
|
$222.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM,SWING
33001-1012
|
$305.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
GREASE NIPPLE
92005-002
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLEEVE,SWING ARM
33034-022
|
$53.55 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
SLEEVE,SWING ARM
42036-1014
|
$57.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,SWING ARM PIVOT
33032-047
|
$53.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHOCK ABSBR RR
45014-105
|
$479.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,10.5X26X2.3
92022-044
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLN,10X22X3.2
92022-176
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,CAP,10MM
92020-003
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Unavailable |
|||
|
#15
BOLT-CHN ADJUST 10MM
92001-162
Superseded by 92001-143
|
$19.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTER,R.H
33040-069
|
$29.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET,HOSE CLAMP
43064-007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,12MM
42045-021
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FR TORQUE LINK
92003-196
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
TORQUE LINK
43007-047
|
$28.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,RR TORQUE LINK
92003-197
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
ADJUSTER,CHAIN
33040-066
|
$29.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSHING, SHCK ABS RUB
45017-012
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR,SHOCKABSORBER
45016-008
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSHING,SHCK ABS RUB
45017-015
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
