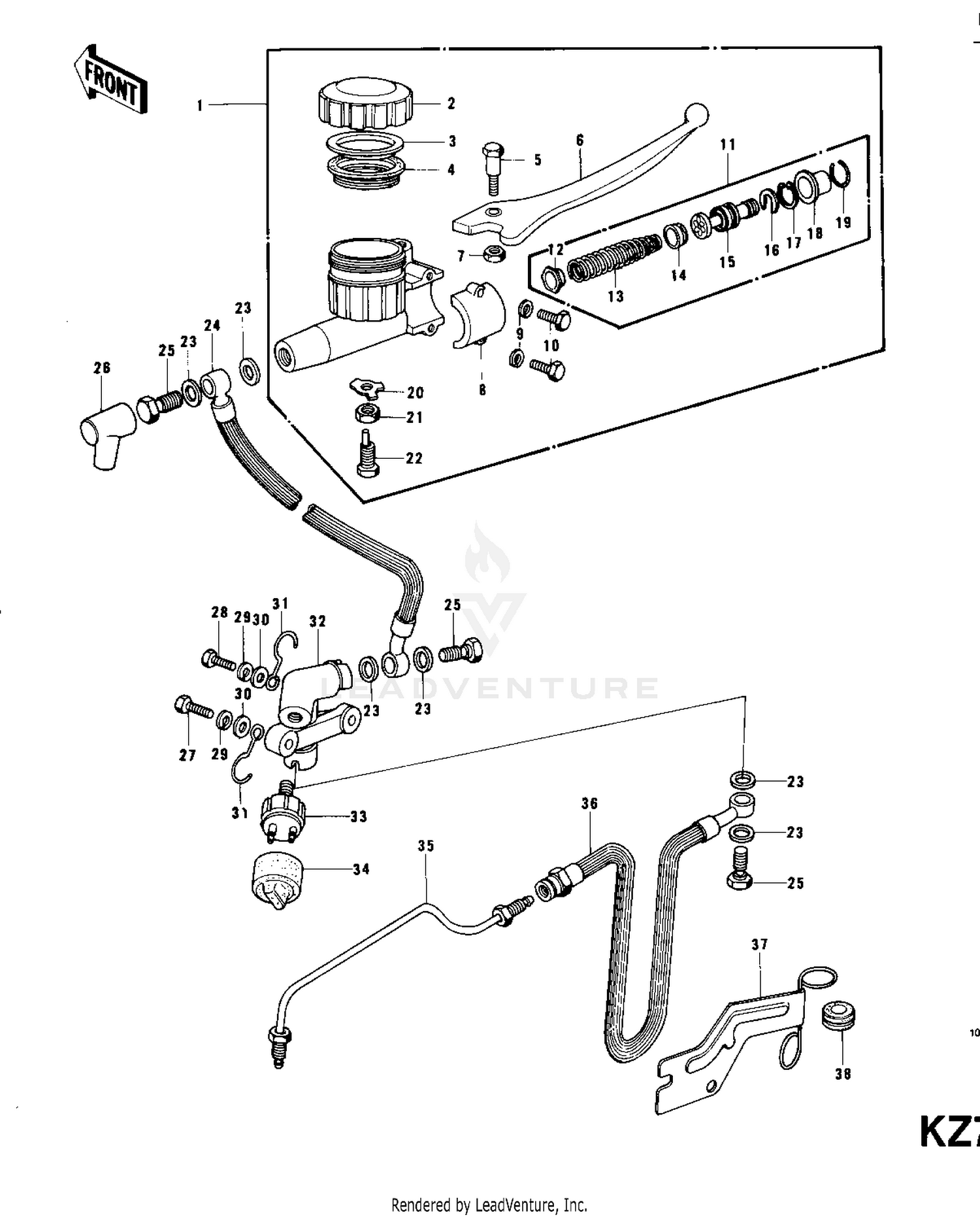

Front Master Cylinder (kz750-b1/b2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYL ASSY,MASTER,FRONT
43015-027
|
$177.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP-BRAKE
43026-003
Superseded by 43026-1054
|
$33.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE-MASTER CYLINDER
43027-001
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
43028-003
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-LEVER FITTING
43033-001
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER,FRONT BRAKE
43029-003
|
$101.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER-MASTER CYL
43034-001
|
$38.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-UPSET
110N0625
Superseded by 112N0625
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
REPAIR SET-MASTER CYL
43073-001
|
$98.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE ASSY-CHECK
43017-001
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING ASSY-RETURN
43018-001
|
$23.86 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUP-PRIMARY
43019-001
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON ASSY
43072-001
|
$24.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER-PISTON
43022-001
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP-TYPE-C,18MM
481J1800
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOTS
43024-001
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER-BOOTS
43025-001
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-LOCK,8MM
43031-001
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,LEVER ADJUSTING
43030-003
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,FRONT BRAKE
43059-007
|
$140.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOOT,DUST
49006-1041
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT-HEX HEAD,6X32
110N0632
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX HEAD 6X22
110N0622
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#31
CLAMP,CABLE
92037-092
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT,THREE WAY
43061-002
|
$52.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
SWITCH-FRONT BRAKE
43065-001
|
$57.90 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP,FRONT BRK SWITCH
11012-1037
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE,BRIDGE
43060-021
|
$37.27 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE-BRAKE,CLUTCH,L=3
43059-1262
Superseded by 43095-1386
|
$87.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET-BRAKE HOSE
43063-001
|
$64.56 | ||
|
Available to order. Add to View Price |
|||
|
#38
GROMMET-HOSE BRACKET
43064-001
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
