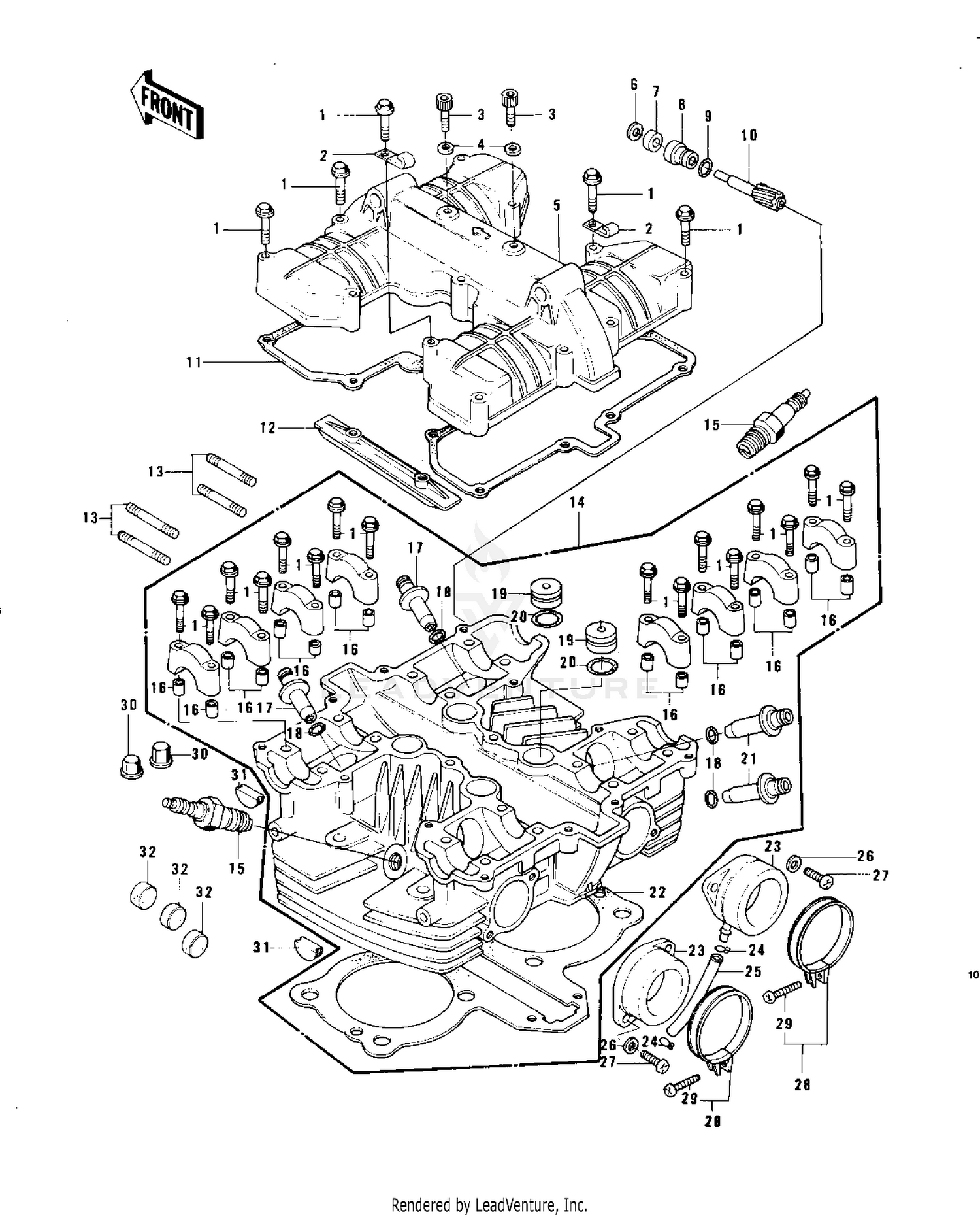

Cylinder Head/cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,HEX HEAD,6X45
92003-092
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP,WIRING HARNESS
21126-008
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-SOCKET,6X14
120P0614
Superseded by 120CA0614
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
92065-096
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,CYLINDER HEAD
11022-008-2H
|
$152.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,TACHOMETER GER
92065-103
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
92050-075
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE,TACHOMETER GEAR
92087-009
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING,9.8X1.9
670B1510
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR,TACHOMETER
13223-013
|
$75.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR,TACHOMETER
13223-013
|
$75.19 | ||
|
Unavailable |
|||
|
#11
GASKET,CYLINDERHEADCO
11023-008
Superseded by 11060-1427
|
$83.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIPPER,CAM CHAIN
12053-016
|
$45.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD,8MM
92004-058
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
HEAD ASSY,CYL,BARREL
11002-5010
|
$876.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG-SPARK-BR8ES-NGK
B8ES
Superseded by 92070-3501-A
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG B6ES
B6ES
|
$3.50 | ||
|
Unavailable |
|||
|
#16
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE,EXHAUST VALVE
12013-011
|
$40.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE,EXHAUST VALVE
12013-011
|
$40.18 | ||
|
Unavailable |
|||
|
#18
O RING,VALVE GUIDE
92055-065
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG,CYLINDER HEAD
92066-052
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING
92055-095
|
$18.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUIDE,INLET VALVE
12013-007
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, HEAD
11004-1055
Superseded by 11004-1267
|
$133.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER,CARBURETOR
16065-036
|
$43.86 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE,BALANCER
92059-122
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-PAN-CROS,6X18
220B0618
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
92037-171
Superseded by 92171-1563
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT,CYLINDER HEAD
92015-076
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG,CAM SHAFT
92066-047
|
$23.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER RUBBER-CYL-HD
92075-109
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
