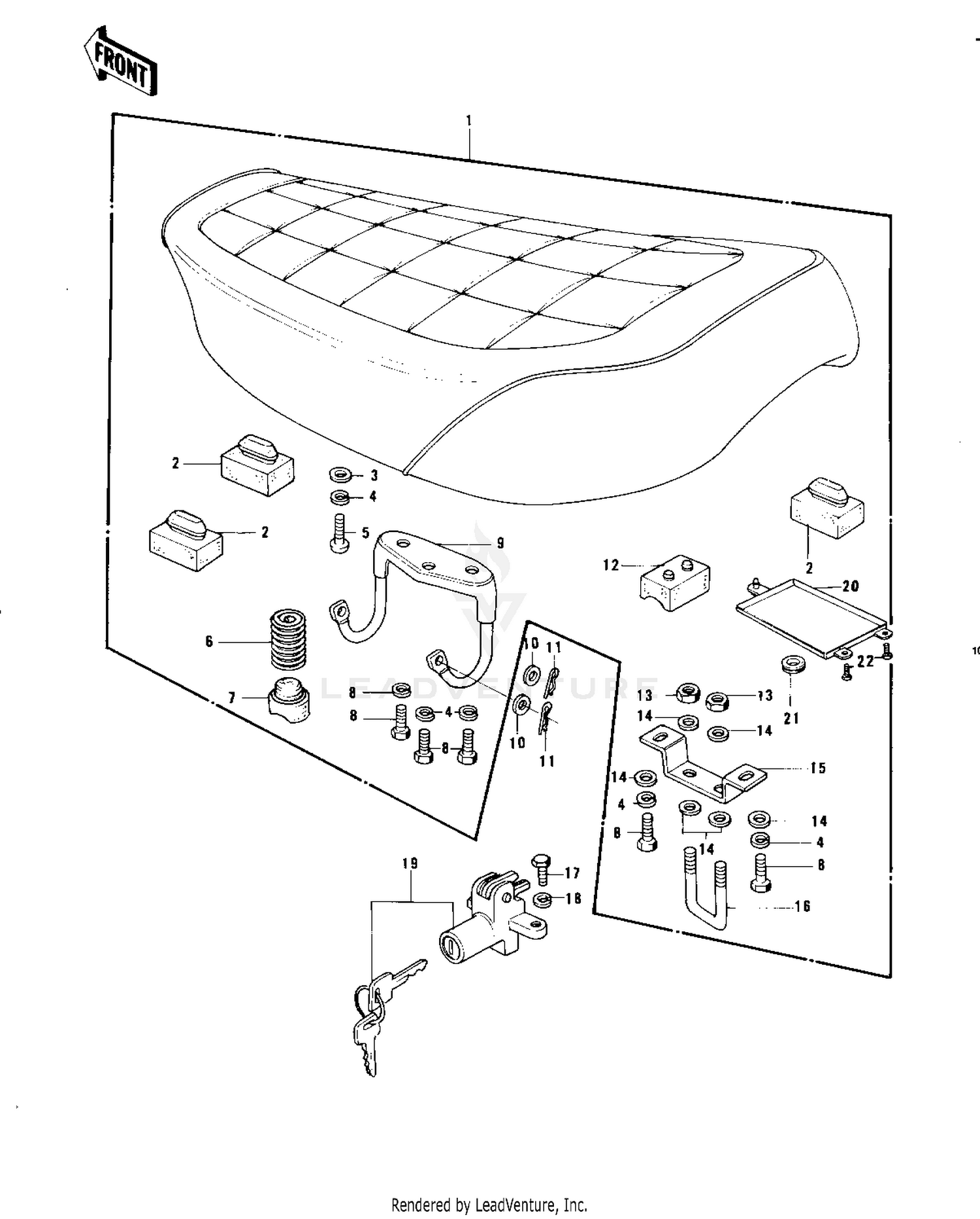

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT-ASSY,DUAL
53001-114
|
$379.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
92081-147
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER RUBBER
92075-276
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
HINGE
53009-029
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER RUBBER,SEAT
92075-139
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET,SEAT CATCH
53058-002
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
CATCH, SEAT
53056-002
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#19
LOCK-ASSY,SEAT
27016-5010
|
$107.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK-ASSY,SEAT
27016-5010
|
$107.80 | ||
|
Unavailable |
|||
|
#20
CASE
32099-011
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
