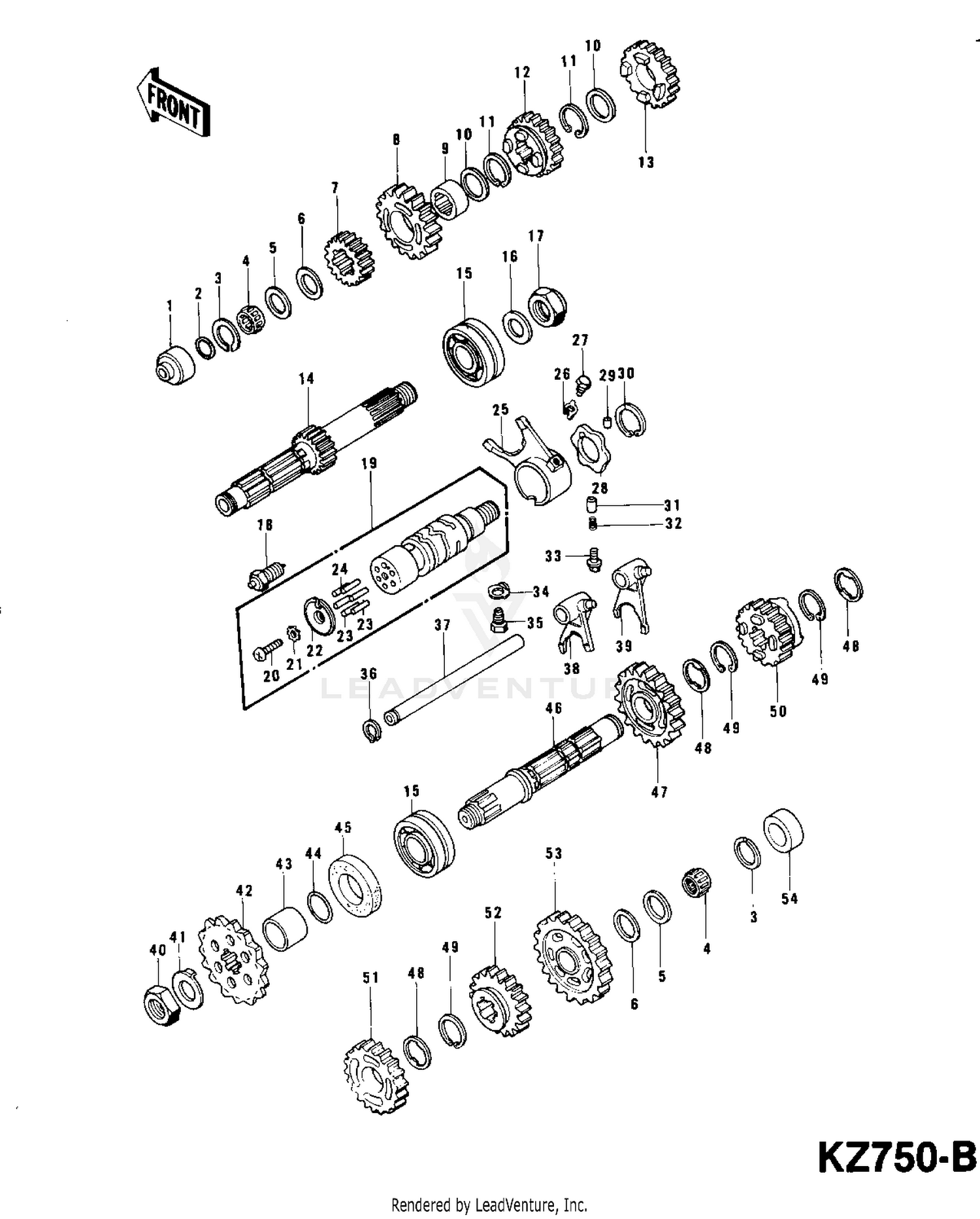

Transmission (kz750-b1/b2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSHING,DRIVE SHAFT
92028-179
|
$88.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING,7MM
670B1507
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING-SNAP,20MM
92033-015
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING,VS20/14A
92046-1030
|
$24.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,20.5X30X1,STEEL
92022-112
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER THRUST
92022-113
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR,INPUT 2ND,19T
13130-041
Superseded by 13260-1511
|
$68.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
TOP GEAR,DRIVE
13136-060
|
$72.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING,DRV SHFT TOP
92028-1007
|
$28.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,25.3X30X1
92022-161
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING-SNAP,24MM
92033-026
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
3RD GEAR,DRIVE
13132-044
|
$99.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
4TH GEAR,DRIVE
13134-029
|
$63.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT,DRIVE
13127-051
|
$136.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING,BALL
92045-035
|
$70.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
92125-002
|
$15.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH,NEUTRAL
13151-5002
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
DRUM ASSY,GEAR SHIFT
13239-021
|
$109.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER LOCK 6MM
464G0600
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER,SHIFT DRUM PIN
13142-018
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN,DOWEL,4X13.8
92042-030
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN,DOWEL,4X15.8
92042-014
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIFT FORK,4TH&TOP
13140-071
|
$68.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER LOCK 10MM
92031-001
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN SELECT FORK GUIDE
92043-016
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAM-CHANGE DRUM
13145-1058
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROLLER,4X6
610A0406
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP-TYPE-C,30MM
480J3000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN
92043-076
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING
92081-112
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT,10MM
92001-131
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER,LOCK
92024-047
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT,CHG DRUM POSITN
92001-112
|
$51.40 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP-TYPE-C,12MM
480J1200
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD-SHIFT
49047-5003
|
$23.48 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHIFT FORK,LOW,2&3RD
13140-1008
|
$105.16 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHIFT FORK,LOW
13140-069
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT,20MM
92016-043
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER,LOCK,20MM
92024-044
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#42
ENGINE SPROCKET,16T
13144-063
|
$84.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPROCKET-OUTPUT,17T(#530)
13144-1009
|
$53.96 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR,ENG SPROCKET
92027-288
|
$37.83 | ||
|
Available to order. Add to View Price |
|||
|
#44
RING-O
92055-035
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#45
SEAL-OIL,HTC 32 52 10
92050-024
Superseded by 92049-1506
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#46
SHAFT,OUTPUT
13128-044
|
$137.25 | ||
|
Available to order. Add to View Price |
|||
|
#47
2ND GEAR,OUTPUT
13131-052
|
$72.72 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER,TOOTHED,30.5X38X1
92024-069
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#49
CIRCLIP-TYPE-C,30MM
480J3000
|
$6.02 | ||
|
Unavailable |
|||
|
#50
TOP GEAR,OUTPUT
13137-039
|
$83.40 | ||
|
Available to order. Add to View Price |
|||
|
#51
3RD GEAR,OUTPUT
13133-041
|
$63.66 | ||
|
Available to order. Add to View Price |
|||
|
#52
4TH GEAR,OUTPUT
13135-030
|
$62.84 | ||
|
Available to order. Add to View Price |
|||
|
#53
LOW GEAR,OUTPUT
13129-056
|
$86.33 | ||
|
Available to order. Add to View Price |
|||
|
#54
BUSHING,26X34X16.6
92028-180
|
$27.70 | ||
|
Available to order. Add to View Price |
|||
