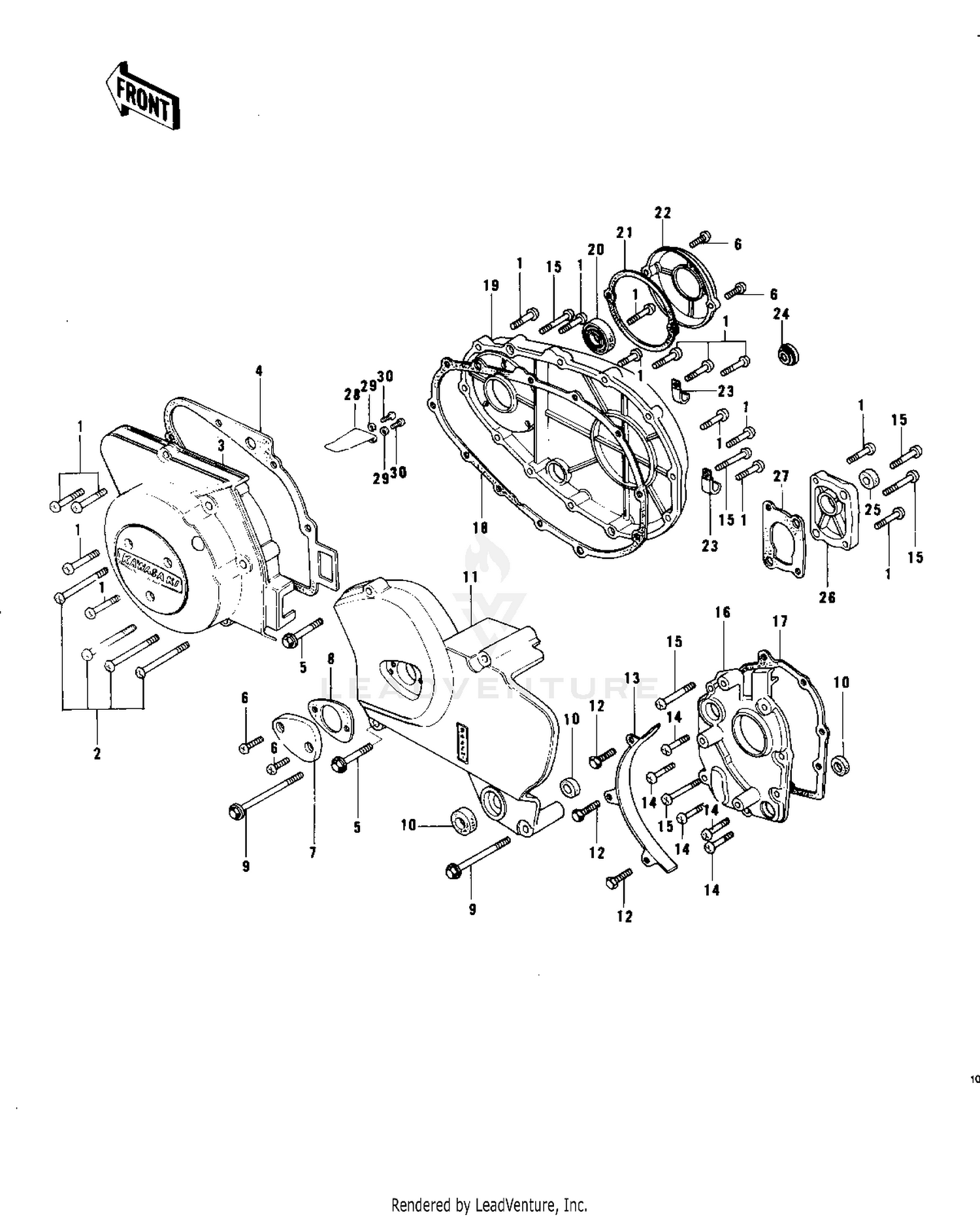

Engine Covers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN HEAD,6X60
220B0660
Superseded by 220AA0660
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,L.H ENGINE
14031-092-80
|
$381.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,GENERATOR
14031-1044
|
$234.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,GENERATORCOVER
11009-1328
Superseded by 11060-1421
|
$25.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEX HEAD, 6X34
92003-159
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-PAN-CROS,6X18
220B0618
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,CLUTCH ADJUST
14028-008-2H
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,CLUTCH ADJUST
14049-007
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-FLANGED
130G0695
Superseded by 130BD0695
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-FLANGED
130G0695
Superseded by 130BD0695
|
$5.41 | ||
|
Unavailable |
|||
|
#10
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,ENGINE SPROCKET
14026-032-80
|
$134.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE,CHAIN
12053-1006
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE,CHAIN
12053-1006
|
$10.58 | ||
|
Unavailable |
|||
|
#14
SCREW-PAN HEAD,6X22
220B0622
Superseded by 220AA0622
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,MISSION
14024-011
|
$137.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET,TRANSMISSION COVER
11060-1056
Superseded by 11061-1524
|
$12.64 | ||
|
Unavailable |
|||
|
#18
GASKET,CLUTCH COVER
14046-033
Superseded by 11060-1590
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER,CLUTCH
14032-1031
|
$311.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL,R.H CRNKSFT
92050-065
|
$22.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, CAP
14050-010
Superseded by 11060-1486
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVERBRK POINT,BUFF
14027-019-80
|
$89.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP,WIRING HARNESS
21126-008
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
GAUGE,OIL LEVEL
52015-004
|
$46.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL-OIL,SC22325
92049-1048
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER,KICK
14032-112-2H
|
$48.46 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET,KICK COVER
14046-034
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP,GENERATOR WIRE
92037-1122
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
