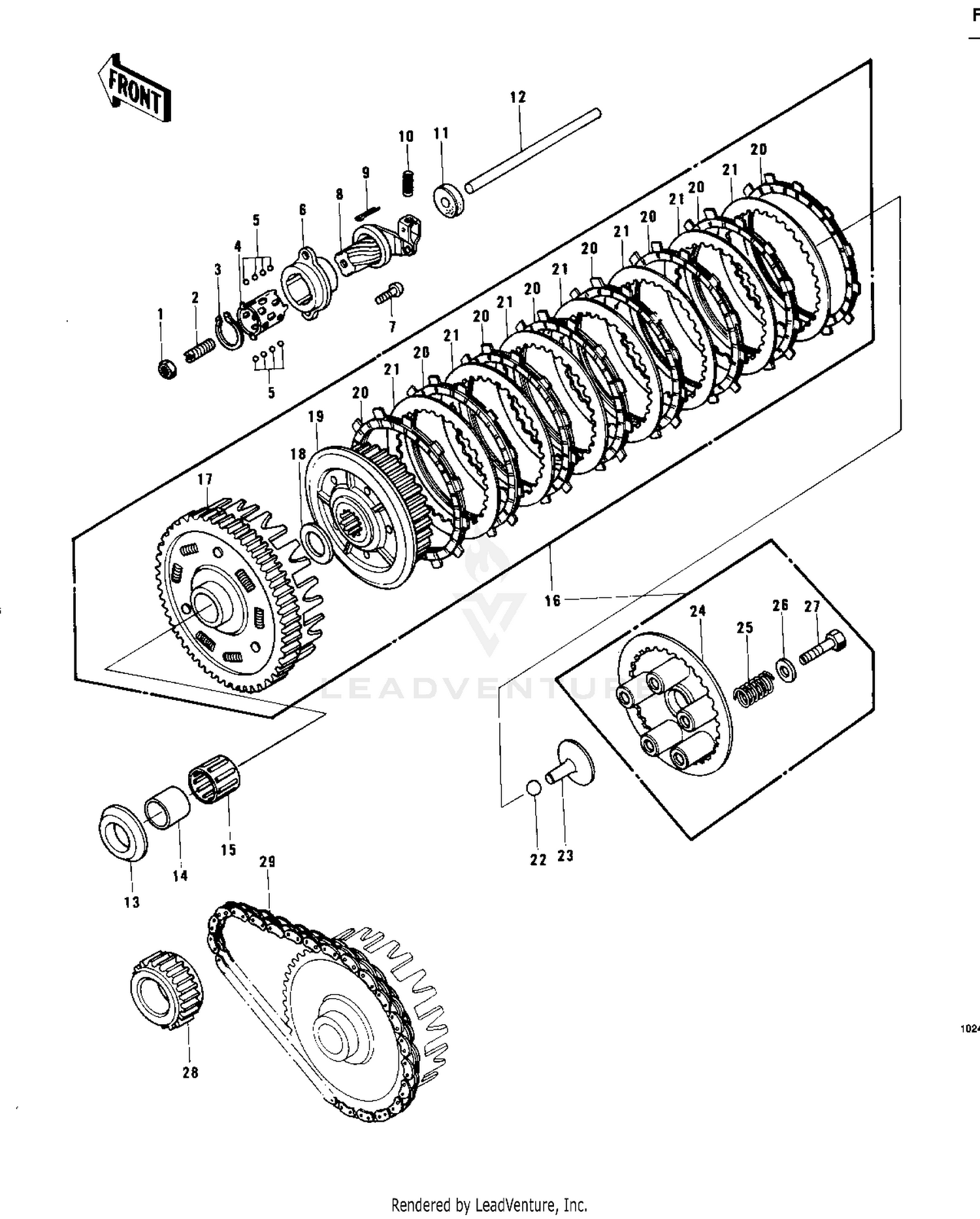

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,SLOTTED,8X25
92014-014
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP-TYPE-C,15MM
480J1500
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER
13197-004
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL,STEEL,1/8"
600A0400
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
OUTER,CLUTCH RELEASE
13118-011
|
$22.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
RELEASE ASSY,CLUTCH
13102-019
Superseded by 13231-014
|
$55.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN-COTTER,1.6X15
550D1615
Superseded by 550AA1615
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
92081-1069
|
|||
|
Unavailable |
|||
|
#11
OIL SEAL,TC7187
92050-048
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD,CLUTCH PUSH
13116-035
|
$47.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD,CLUTCH PUSH
13116-035
|
$47.97 | ||
|
Unavailable |
|||
|
#13
SPACER
92026-123
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
92026-123
|
$10.64 | ||
|
Unavailable |
|||
|
#13
SPACER
92026-123
|
$10.64 | ||
|
Unavailable |
|||
|
#13
SPACER
92026-123
|
$10.64 | ||
|
Unavailable |
|||
|
#13
SPACER
92026-123
|
$10.64 | ||
|
Unavailable |
|||
|
#14
BUSHING,25X32X23.6
92028-178
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING-NEEDLE,KTV323723
92046-028
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLUTCH-ASSY
13081-1006
|
$457.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLUTCH-ASSY
13081-1006
|
$457.24 | ||
|
Unavailable |
|||
|
#17
HOUSING,CLUTCH
13095-050
|
$362.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
HUB-CLUTCH
13087-042
Superseded by 13087-0042
|
$139.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE-FRICTION
13088-040
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE-CLUTCH
13089-027
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSHER,CLUTCH SPRG PL
13116-022
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE,CLUTCH SPRING
13187-008
|
$61.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING,CLUTCH
92081-1033
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER,CLUTCH SPRING
13091-011
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR,PRIMARY
13121-034
|
$84.94 | ||
|
Available to order. Add to View Price |
|||
|
#29
CHAIN,PRIMARY
13122-008
|
$400.64 | ||
|
Available to order. Add to View Price |
|||
