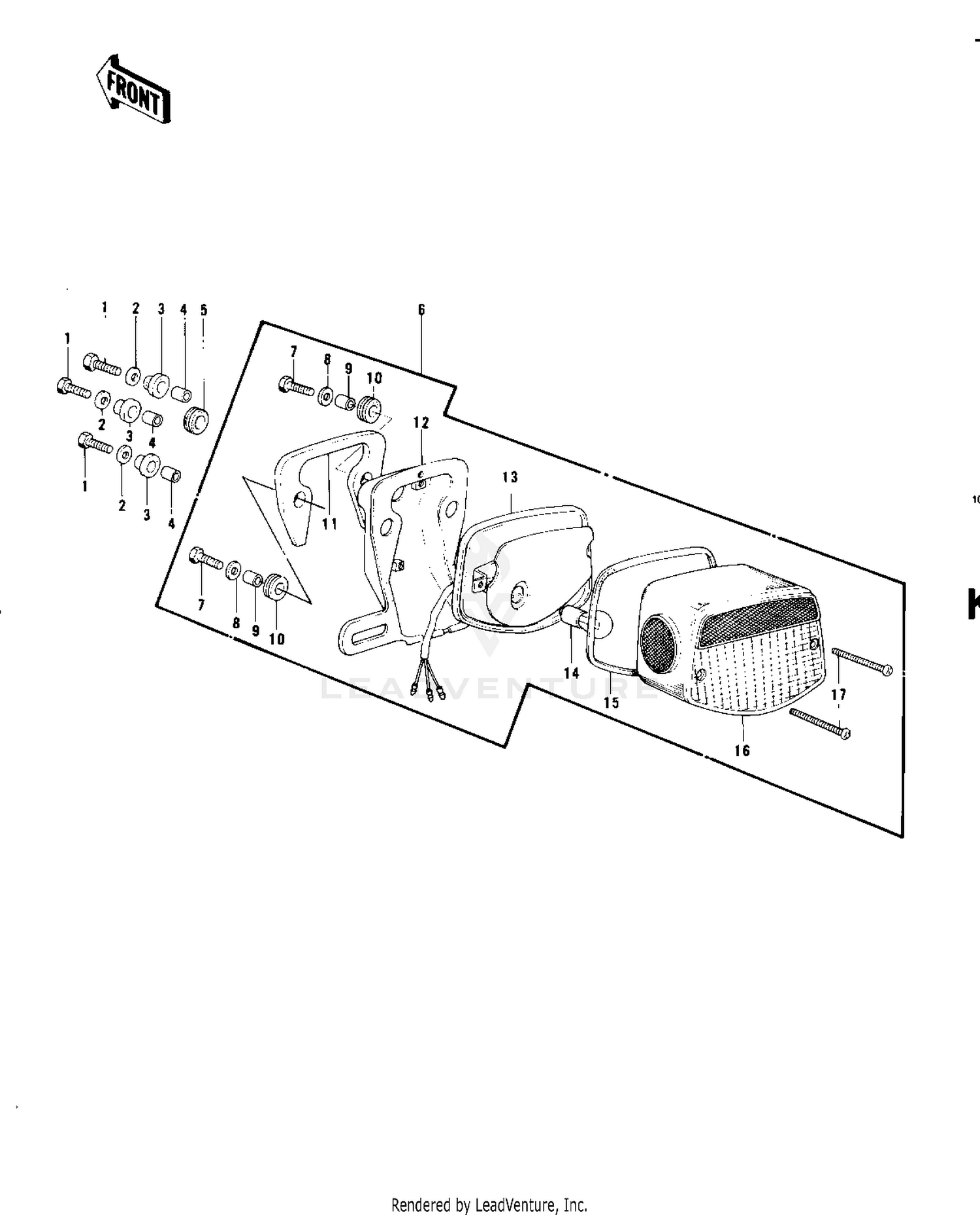

Taillight (kz750-b1/b2/b3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
92075-112
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR,6.8X10X10.5
92027-120
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
92071-059
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
LIGHT ASSY,TAIL
23024-066
|
$135.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Unavailable |
|||
|
#9
COLLAR,6.8X10X8.5
92027-129
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER RUBBER
23066-020
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER RUBBER
23066-019
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,LICENSE PLATE
23036-045
|
$99.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE,TAIL LIGHT
23027-041
|
$122.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB,12V 27/8W
92069-059
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET,TAIL LENS
23028-021
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
LENS,TAIL LAMP
23026-034
|
$74.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN-CROS
220R0460
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
