1977 Kawasaki KZ750B/E Transmission (kz750-b3/b4) OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
< Back to Assembly Types

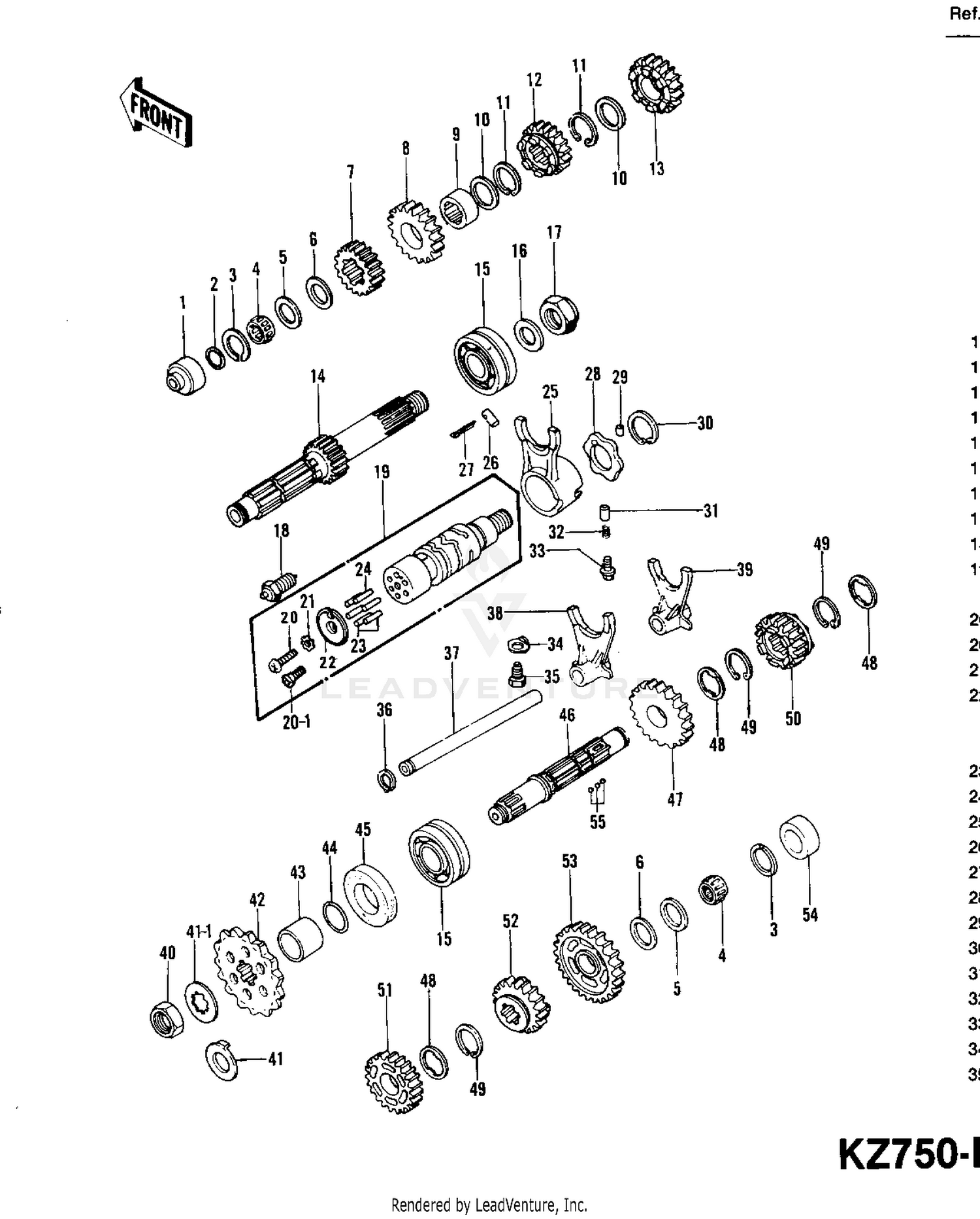

Transmission (kz750-b3/b4) Diagram

Item MSRP Qty
#1 BUSHING,DRIVE SHAFT
92028-179
 $88.67
Available to order.
Add to View Price
#2 O RING,7MM
670B1507
 $1.26
Available to order.
Add to View Price
#3 RING-SNAP,20MM
92033-015
 $4.13
Available to order.
Add to View Price
#4 BEARING,VS20/14A
92046-1030
 $24.53
Available to order.
Add to View Price
#5 WASHER,20.5X30X1,STEEL
92022-112
 $8.55
Available to order.
Add to View Price
#5 SPACER
92022-144
Superseded by 92026-1535
 $7.36
Available to order.
Add to View Price
#5 WASHER,20.3X30X0.7,STEEL
92022-1026
 $5.95
Available to order.
Add to View Price
#6 WASHER THRUST
92022-113
 $11.25
Available to order.
Add to View Price
#7 GEAR,INPUT 2ND,19T
13130-041
Superseded by 13260-1511
 $68.85
Available to order.
Add to View Price
#8 TOP GEAR,DRIVE SHAFT
13129-1045
 $93.66
Available to order.
Add to View Price
#9 BUSHING,DRV SHFT TOP
92028-1007
 $28.52
Available to order.
Add to View Price
#10 WASHER,25.3X30X1
92022-161
 $10.28
Available to order.
Add to View Price
#11 RING-SNAP,24MM
92033-026
 $8.48
Available to order.
Add to View Price
#12 3RD GEAR,DRIVE SHAFT
13129-1032
 $102.14
Available to order.
Add to View Price
#13 4TH GEAR,DRIVE SHAFT
13129-1044
 $150.08
Available to order.
Add to View Price
#14 SHAFT,DRIVE
13127-051
 $136.37
Available to order.
Add to View Price
#15 BEARING,BALL
92045-035
 $70.76
Available to order.
Add to View Price
#16 WASHER
92125-002
 $15.86
Available to order.
Add to View Price
#17 NUT,20MM
92015-1555
 $12.62
Available to order.
Add to View Price
#18 SWITCH,NEUTRAL
13151-5002
 $20.42
Available to order.
Add to View Price
#19 DRUM ASSY,GEAR SHIFT
13239-1017
 $130.85
Available to order.
Add to View Price
#19 DRUM ASSY,GEAR SHIFT
13239-1017
 $130.85
Unavailable
#20 SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
 $1.44
Available to order.
Add to View Price
#20-1 SCREW-CNTSNK HD,6X20
221B0620
Superseded by 221AA0620
 $2.33
Available to order.
Add to View Price
#21 WASHER LOCK 6MM
464G0600
 $2.81
Available to order.
Add to View Price
#22 HOLDER,SHIFT DRUM PIN
13142-018
 $4.75
Available to order.
Add to View Price
#22 HOLDER,CHANGE DRUM PIN
13091-1104
 $25.30
Available to order.
Add to View Price
#22 HOLDER,CHANGE DRUM PIN
13091-1104
 $25.30
Unavailable
#23 PIN,DOWEL,4X13.8
92042-030
 $3.80
Available to order.
Add to View Price
#24 PIN,DOWEL,4X15.8
92042-014
 $0.43
Available to order.
Add to View Price
#25 SHIFT FORK,4TH & TOP
13140-1009
 $105.16
Available to order.
Add to View Price
#26 DOWEL PIN,8X18
92042-021
 $11.10
Available to order.
Add to View Price
#27 PIN-COTTER,3.0X20
550D3020
Superseded by 550AA3020
 $1.73
Available to order.
Add to View Price
#28 CAM-CHANGE DRUM
13145-1058
 $21.91
Available to order.
Add to View Price
#29 ROLLER,4X6
610A0406
 $4.17
Available to order.
Add to View Price
#30 CIRCLIP-TYPE-C,30MM
480J3000
 $6.02
Available to order.
Add to View Price
#31 PIN
92043-076
 $11.30
Available to order.
Add to View Price
#32 SPRING
92081-112
 $5.96
Available to order.
Add to View Price
#33 BOLT,10MM
92001-131
 $19.33
Available to order.
Add to View Price
#34 WASHER,LOCK
92024-047
 $3.15
Available to order.
Add to View Price
#35 BOLT,CHG DRUM POSITN
92001-1052
 $16.58
Available to order.
Add to View Price
#36 CIRCLIP-TYPE-C,12MM
480J1200
 $0.61
Available to order.
Add to View Price
#37 ROD-SHIFT
49047-5003
 $23.48
Available to order.
Add to View Price
#38 SHIFT FORK,LOW,2&3RD
13140-1008
 $105.16
Available to order.
Add to View Price
#39 SHIFT FORK,LOW,2&3RD
13140-1008
 $105.16
Unavailable
#40 NUT,20MM
92016-043
 $16.72
Available to order.
Add to View Price
#40 NUT,20MM
92015-1254
Superseded by 92015-1963
 $14.37
Available to order.
Add to View Price
#41 WASHER,LOCK,20MM
92024-044
 $13.04
Available to order.
Add to View Price
#41-1 WASHER
92200-1065
 $6.42
Available to order.
Add to View Price
#42 ENGINE SPROCKET,16T
13144-063
 $84.49
Available to order.
Add to View Price
#42 SPROCKET-OUTPUT,17T(#530)
13144-1009
 $53.96
Available to order.
Add to View Price
#43 COLLAR,ENG SPROCKET
92027-288
 $37.83
Available to order.
Add to View Price
#44 RING-O
92055-035
 $4.84
Available to order.
Add to View Price
#45 SEAL-OIL,HTC 32 52 10
92050-024
Superseded by 92049-1506
 $7.89
Available to order.
Add to View Price
#46 SHAFT,OUTPUT
13128-5005
 $171.70
Available to order.
Add to View Price
#46 SHAFT,OUTPUT
13128-1012
 $180.52
Available to order.
Add to View Price
#47 GEAR,OUTPUT 2ND,31T
13129-1047
Superseded by 13260-1514
 $110.77
Available to order.
Add to View Price
#48 WASHER,TOOTHED,30.5X38X1
92024-069
 $5.95
Available to order.
Add to View Price
#49 CIRCLIP-TYPE-C,30MM
480J3000
 $6.02
Unavailable
#50 TOP GEAR,OUTPUT SHAFT
13129-1033
 $108.90
Available to order.
Add to View Price
#51 GEAR,OUTPUT 3RD,28T
13129-1048
Superseded by 13260-1515
 $97.22
Available to order.
Add to View Price
#52 GEAR,OUTPUT 4TH,26T
13129-1049
Superseded by 13260-1516
 $103.78
Available to order.
Add to View Price
#53 LOW GEAR,OUTPUT SHAFT
13129-1046
 $107.13
Available to order.
Add to View Price
#54 BUSHING,26X34X16.6
92028-180
 $27.70
Available to order.
Add to View Price
#55 BALL-STEEL,5/32
600A0500
 $0.80
Available to order.
Add to View Price
