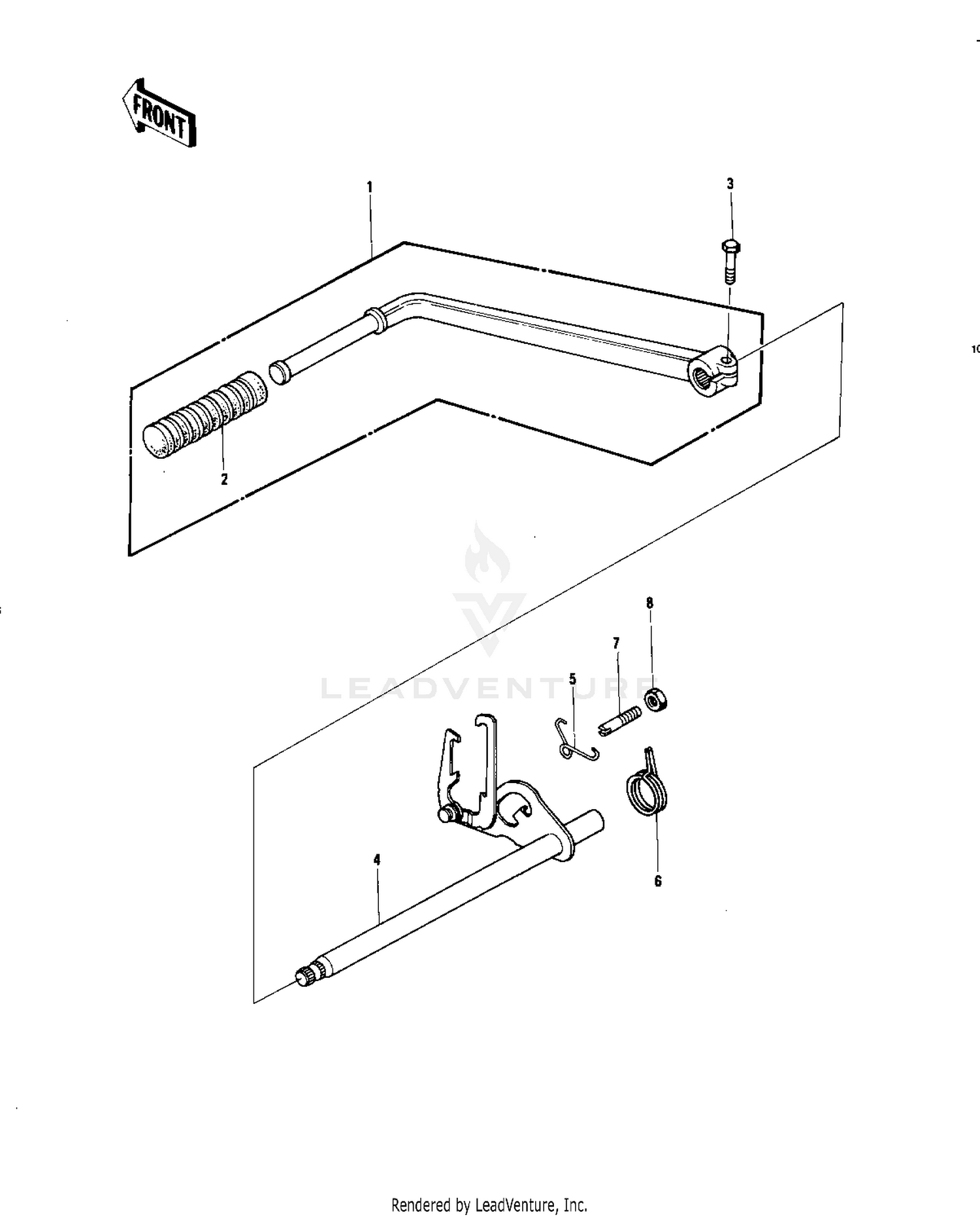

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY,GEAR CHANG
13242-006
|
$94.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
LEVER-ASSY-CHANGE
13242-1100
|
$106.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER,CHANGE PEDAL
92160-1036
Superseded by 92161-2382
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-UPSET
112N0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER ASSY,GEAR SFT
13161-042
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING,KICK PAWL
92083-018
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING,CHG PEDL RTRN
92083-028
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN CHANGE PEDAL SPRG
92043-057
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
