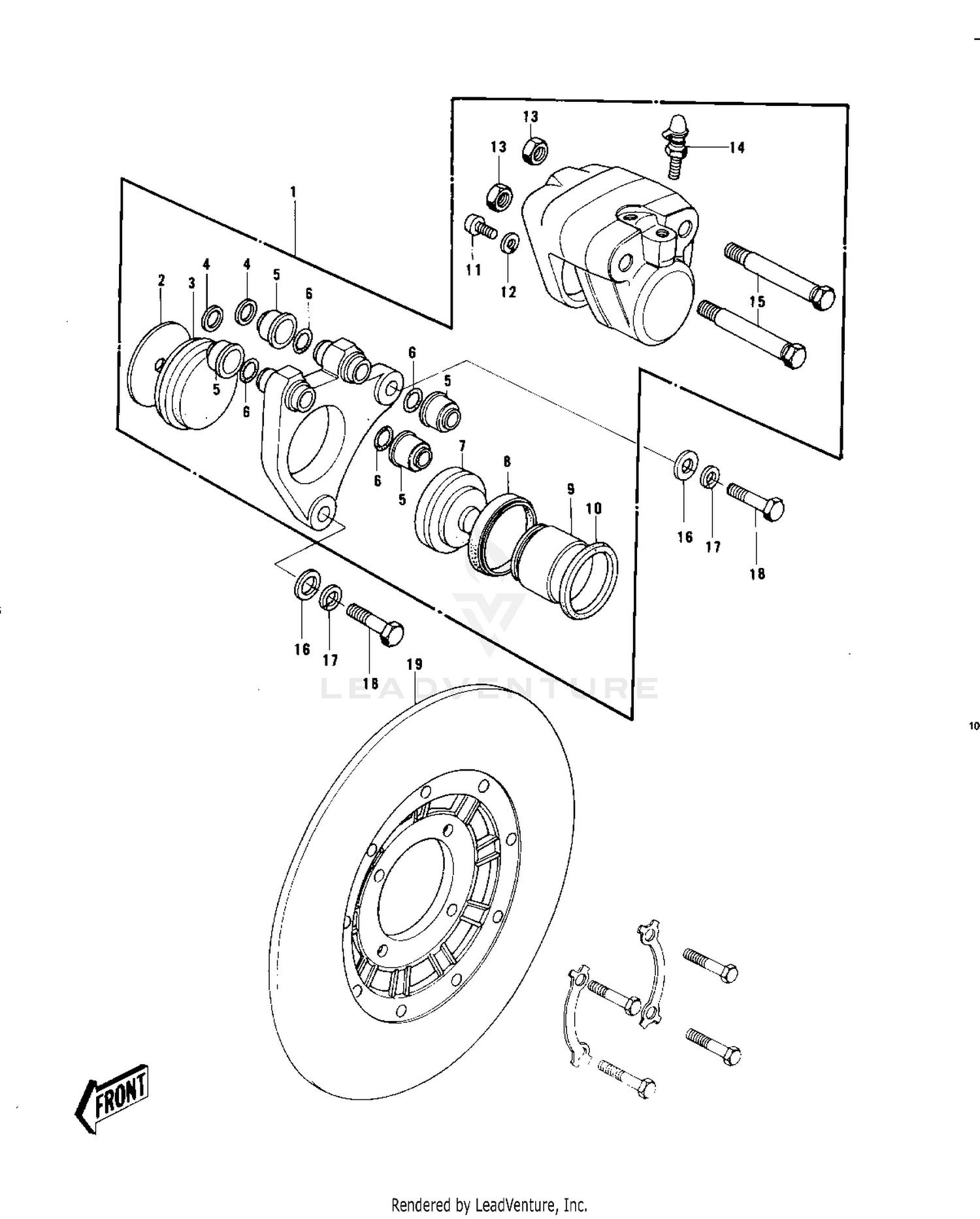

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY,FRONT
43041-030
|
$282.85 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY,FRONT
43041-030
|
$282.85 | ||
|
Unavailable |
|||
|
#1
CALIPER ASSY,FRONT
43041-1006
|
$497.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
43040-004
|
$9.65 | ||
|
Unavailable |
|||
|
#3
PAD B
43051-007
|
$35.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET,(FRONT)
43050-5001
|
$218.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG
43088-002
|
$10.38 | ||
|
Unavailable |
|||
|
#5
DUST SHILD,SHAFT
43052-005
|
$12.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
0 RING
43053-006
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD A
43050-006
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD SET,(FRONT)
43050-5001
|
$218.22 | ||
|
Unavailable |
|||
|
#8
DUST SEALD,RUBBER
43054-003
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON,CALIPER
43048-006
|
$64.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON,FRONT CALIPER
43048-009
|
$149.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
PACKING,PISTON SEAL
43049-002
Superseded by 43049-1098
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BLEEDER SET
43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
43045-006
|
$39.27 | ||
|
Unavailable |
|||
|
#16
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
92007-032
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
DISC PLATE,FRONT
41080-005
|
$498.64 | ||
|
Available to order. Add to View Price |
|||
