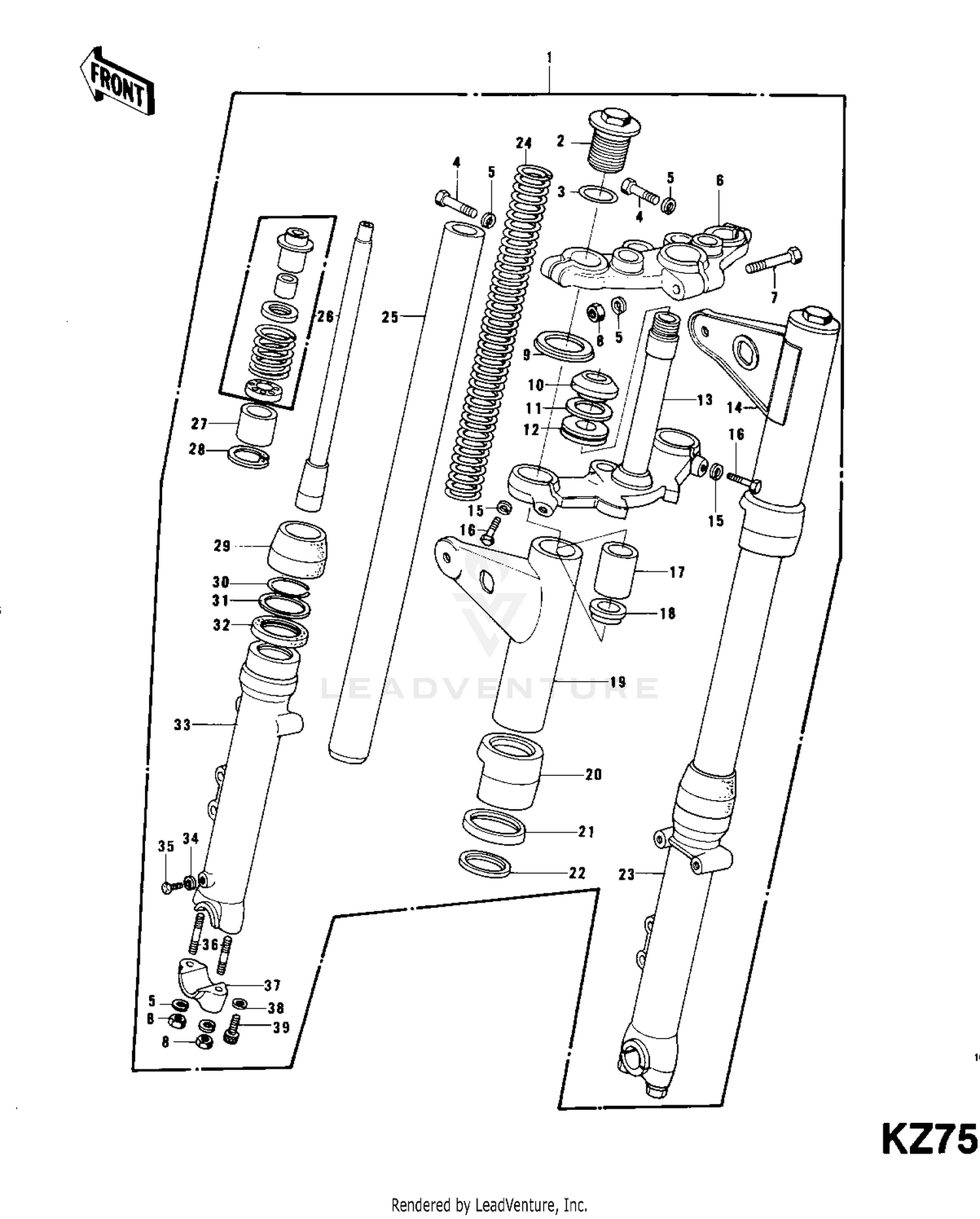

Front Fork (kz750-b1/b2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-172
|
$1,219.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-FORK TOP
44062-003
|
$47.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
'O' RING FORK TOP
44046-015
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-HEX HEAD.8M/M
44041-045
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEAD STEERING STEM
44039-071
|
$135.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-STEERING STEM HD
44041-042
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,FORK COVER
44064-005
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACE,STEERING STEM BEARING
92047-012
Superseded by 92048-0033
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,30.5X50X0.6
92022-231
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL-OIL,STEERING STEM
92056-003
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
STEM,STEERING
44037-093
|
$423.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,R.H
44034-076
|
$88.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-HEX HEAD,12X36
92003-064
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
44028-040
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE,FORK SPRING
44028-031
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER,L.H.FORK
44033-076
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE,FORK COVER
44064-025
|
$29.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER,FORK COU GUID
44064-008
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET,FORK COVER
44045-038
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE,RH,FORK OUTER
44006-063
|
$487.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,FORK
44026-071
|
$78.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE,FORK INNER
44013-057
|
$182.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CYLINDER-FORK
44022-027
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
PISTON,FORK
44018-009
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP,FORK PISTON
44044-019
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SHEILD,FORK
44010-032
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
RING-SNAP,FORK OIL
92033-1100
|
$14.41 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-OIL SEAL FIT
44043-044
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL-OIL,FORK OUTER P
92049-1216
|
$22.38 | ||
|
Available to order. Add to View Price |
|||
|
#33
TUBE,LH,FORK OUTER
44005-065
|
$309.62 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#36
STUD,8X35
92004-1009
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER,FRONT AXLE
44063-014
|
$32.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
