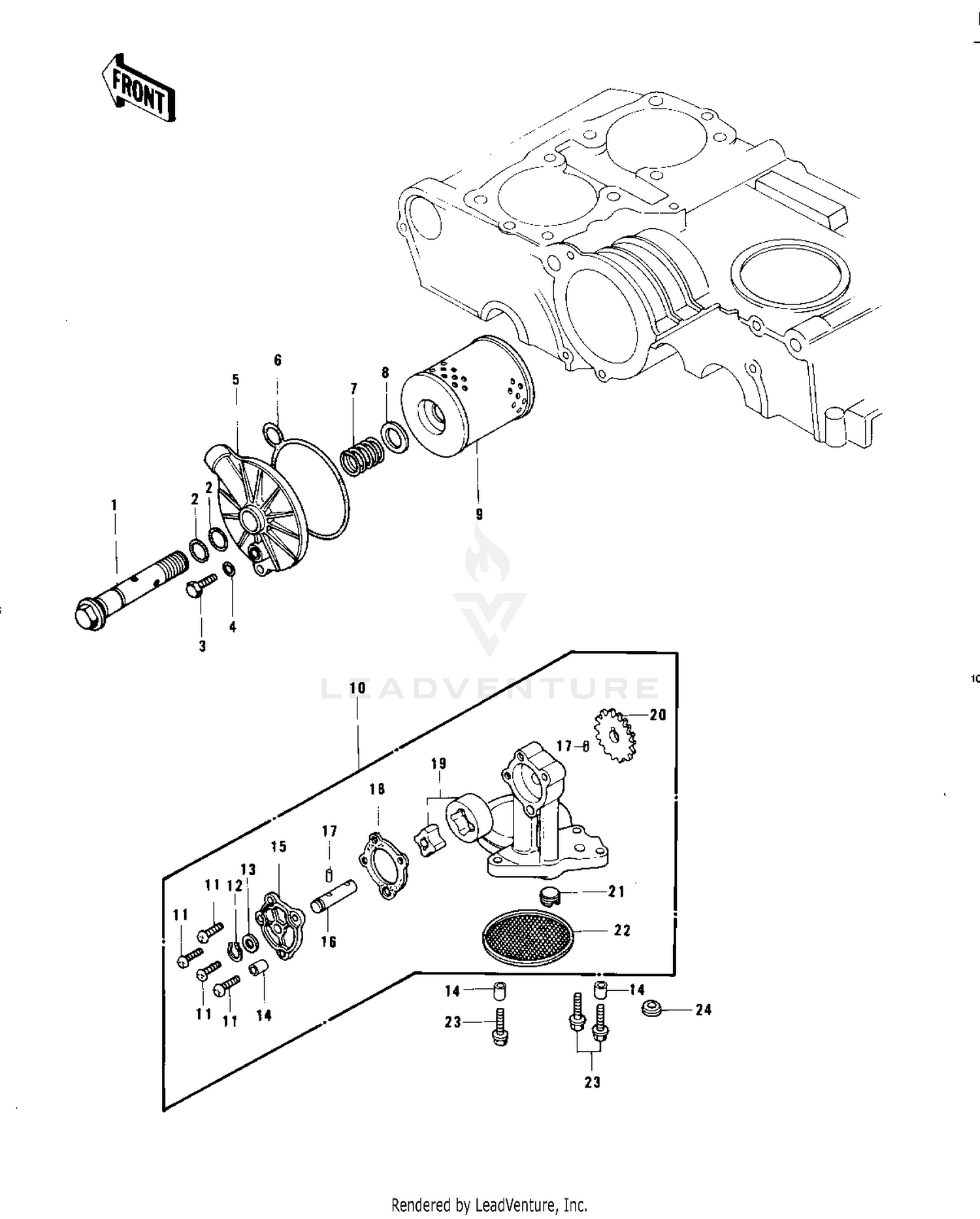

Oil Pump/oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,OIL FILTER
92003-189
|
$104.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG,OIL DRAIN
92066-024
|
$16.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING,8MM
670B1508
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,OIL FILTER
16146-002
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
92055-084
|
$31.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,OIL FILTER
92081-1018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,20.5X30X1
92022-1012
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
ELEMENT,OIL FILTER
16099-002
|
$15.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL PUMP ASSY
16082-062
|
$276.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP-TYPE-C,11MM
480J1100
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,11.2X15X1
92022-311
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN,DOWEL,8X10
92043-1302
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,OIL PUMP
16142-004
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,OIL PUMP
16086-004
|
$23.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN,DOWEL,4X12.8
92042-041
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET,OIL PUMP
16145-003
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROTOR ASSY,OIL PUMP
16154-003
|
$84.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,OIL PUMP
16085-024
|
$53.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW,SLOTTED
92013-008
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
STRAINER,OIL PUMP
16111-004
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,HEX HEAD,6X41
92003-109
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING,0.D=18MM
92055-048
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
