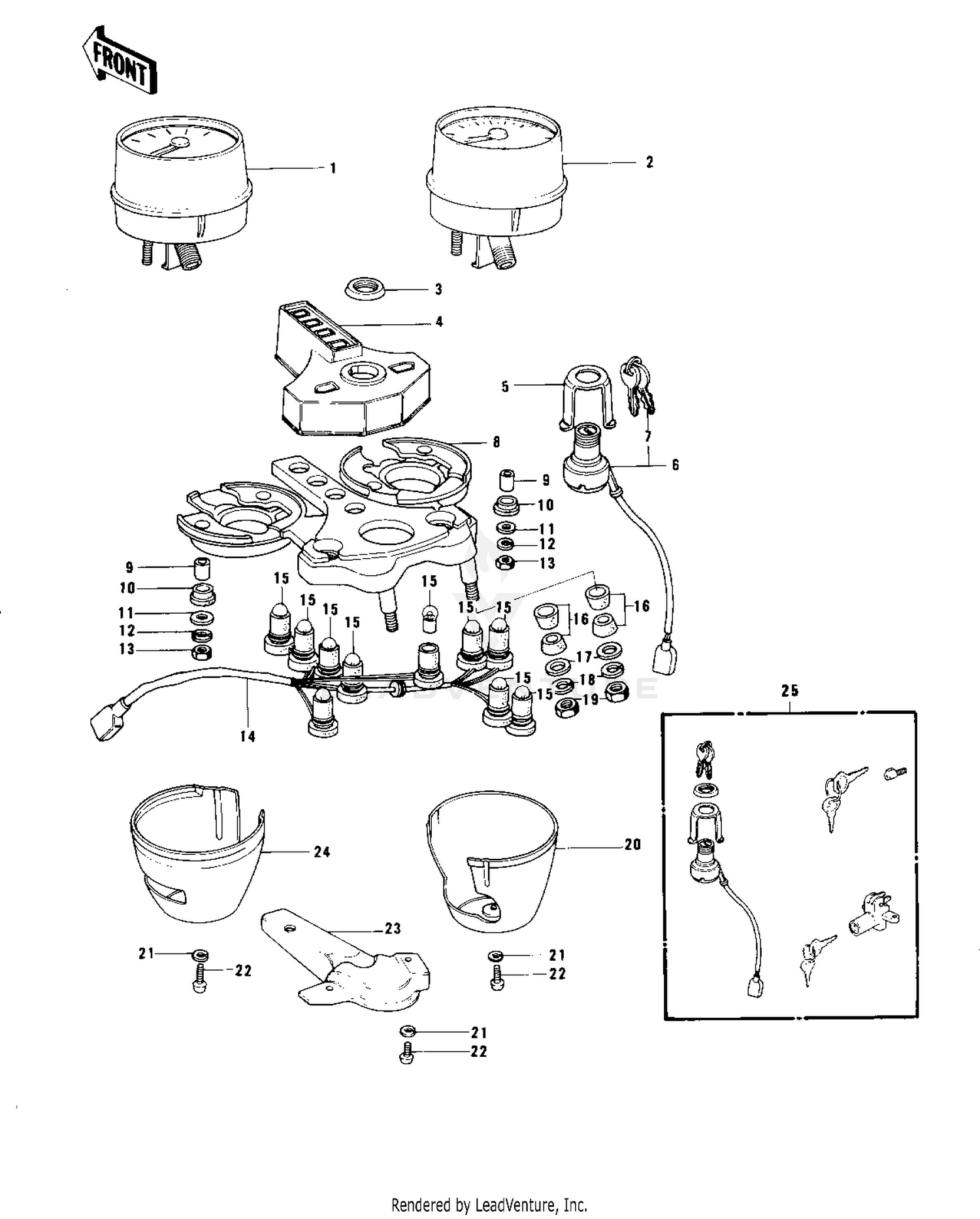

Meters/ignition Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER,MPH
25006-052
|
$513.12 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPEEDOMETER,MPH
25005-1037
|
$586.96 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPEEDO ASSY,KPH (Canada)
25006-054
|
$557.12 | ||
|
Unavailable |
|||
|
#1
SPEEDOMETER ASSY,KPH (Canada)
25005-1013
|
$557.12 | ||
|
Unavailable |
|||
|
#2
TACHOMETER ASSY
25015-1008
|
$313.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,IGNITION SW LOCK
27007-004
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,METER,INDICATER
25023-015
|
$210.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER IGNITION SW
27019-003
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH,IGNITION
27005-083
|
$102.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH-ASSY,IGNITION
27005-5006
|
$108.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY SET,#801
27008-068-01
|
$30.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY SET,#845
27008-068-45
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY,BLANK
27008-1014
|
$22.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY-LOCK,BLANK
27008-1103
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,METER
25008-045
Superseded by 25008-1005
|
$250.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR,METER
92027-211
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
92075-172
Superseded by 92161-2323
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,PLAIN,5MM
92022-241
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX,5MM
312B0500
Superseded by 312AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
SOCKET,SPEEDOMETER
25011-049
|
$182.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULB 12V 3W
92069-018
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBBER
92075-080
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER,TACHOMETER
25012-011
|
$137.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-SPRING
461F0300
Superseded by 461DA0300
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER,METER BRACKET
25024-006
|
$27.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER,SPEEDOMETER
25012-010
|
$134.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOCK SET,KZ750B4
27004-5029
|
$178.70 | ||
|
Available to order. Add to View Price |
|||
