1977 Kawasaki KZ750B/E Handlebar OEM Parts

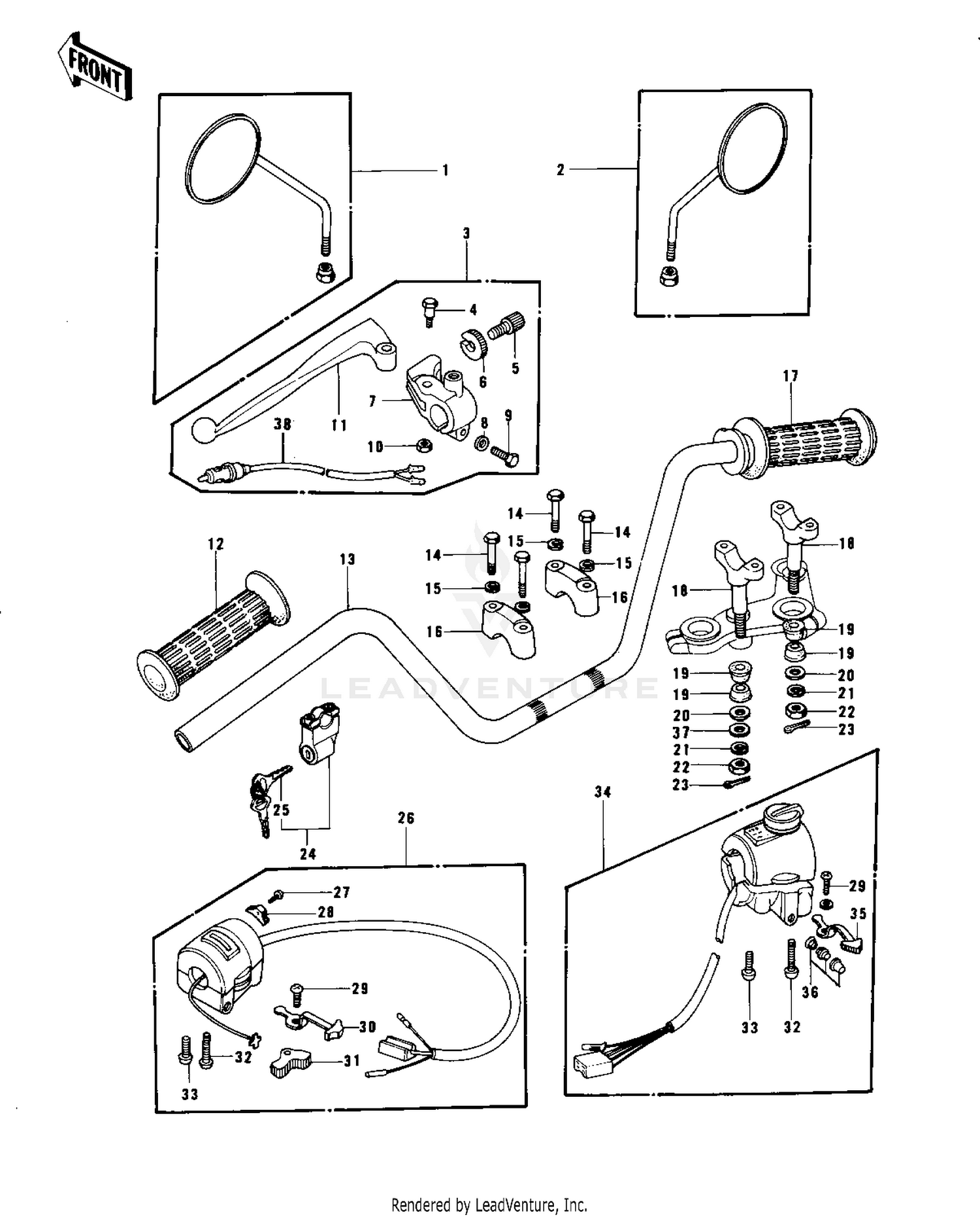

Handlebar Diagram

Item	MSRP	Qty
#1 REAR VIEW MIRROR,L.H 56003-019	$66.42
Available to order. Add to View Price
#2 REAR VIEW MIRROR,R.H 56002-029	$72.82
Available to order. Add to View Price
#3 LEVER ASSY,CLUTCH 46076-049 Superseded by 46076-054	$98.74
Available to order. Add to View Price
#3 LEVER ASSY,CLUTCH 46076-054	$98.74
Unavailable
#4 BOLT,HEX HEAD 92007-047	$13.28
Available to order. Add to View Price
#5 SCREW,CABLE ADJUST,8MM 46055-003	$15.75
Available to order. Add to View Price
#6 NUT,CABLE ADJUST LOCK,8MM 46056-005	$8.55
Available to order. Add to View Price
#6 NUT,CABLE ADUST NUT 46056-007	$13.75
Available to order. Add to View Price
#7 HOLDER,CLUTCH LEVER 46094-017	$38.63
Available to order. Add to View Price
#7 HOLDER,CLUTCH LEVER 46094-019	$68.16
Available to order. Add to View Price
#8 WASHER-PLAIN,6MM 411B0600 Superseded by 411AA0600	$2.84
Available to order. Add to View Price
#8 WASHER-PLAIN-SMALL 410B0600 Superseded by 410AA0600	$1.28
Available to order. Add to View Price
#9 BOLT-UPSET 112B0622 Superseded by 112BA0622	$3.62
Available to order. Add to View Price
#9 BOLT-UPSET,6X25 112G0625 Superseded by 112BA0625	$3.62
Available to order. Add to View Price
#10 NUT,LOCK 6MM 92017-014	$7.25
Available to order. Add to View Price
#11 LEVER,CLUTCH 46092-023	$34.59
Available to order. Add to View Price
#12 RUBBER,L.H GRIP 46075-028	$38.45
Available to order. Add to View Price
#13 HANDLEBAR 46003-036	$149.17
Available to order. Add to View Price
#14 BOLT 8X38 92001-1405	$15.91
Available to order. Add to View Price
#15 WASHER-SPRING,8MM 461F0800 Superseded by 461DA0800	$0.40
Available to order. Add to View Price
#16 HOLDER-HANDLEBAR 46012-008	$36.30
Available to order. Add to View Price
#17 GRIP ASSY,THROTTLE 46019-038	$113.50
Available to order. Add to View Price
#18 HOLDER-HANDLEBAR LOW 46012-010	$29.57
Available to order. Add to View Price
#19 DAMPER RUBBER,HANDLE 92075-275	$10.64
Available to order. Add to View Price
#20 WASHER-HANDLEBAR FIT 92022-196	$4.48
Available to order. Add to View Price
#21 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
#22 NUT-HEX-FINE 314B1000 Superseded by 314AA1000	$0.67
Available to order. Add to View Price
#22 NUT-HEX-FINE,10MM 315B1000 Superseded by 315AA1000	$0.58
Available to order. Add to View Price
#23 PIN-SNAP 554A0800 Superseded by 554DA0800	$1.32
Available to order. Add to View Price
#24 LOCK,HELMET 27039-001	$43.67
Available to order. Add to View Price
#26 HOUSING ASSY,CONT,L.H 46091-1079	$208.04
Available to order. Add to View Price
#27 SCREW CNTSNK HD 3X8 221B0308A	$5.79
Available to order. Add to View Price
#28 KNOB,LIGHTING SW L.H 46044-013	$11.93
Available to order. Add to View Price
#29 SCREW,3X5 220B0305A Superseded by 92009-1123	$0.58
Available to order. Add to View Price
#30 KNOB,LIGHTING SW L.H 46043-005	$12.18
Available to order. Add to View Price
#31 BUTTON, HORN PUSH 46028-006	$28.85
Available to order. Add to View Price
#32 SCREW-PAN-CROS 220B0535 Superseded by 220AA0535	$3.58
Available to order. Add to View Price
#32 SCREW-PAN-CROS 220B0540 Superseded by 220AA0540	$3.58
Available to order. Add to View Price
#33 SCREW-PAN-CROS 220B0530 Superseded by 220AA0530	$3.58
Available to order. Add to View Price
#34 HOUSING ASSY,R.H CONT 46091-1033	$151.76
Available to order. Add to View Price
#34 HOUSING ASSY,R.H CONT 46091-1033	$151.76
Unavailable
#34 HOUSING ASSY,R.H 46091-1039	$118.72
Available to order. Add to View Price
#34 HOUSING ASSY,R.H 46091-1039	$118.72
Unavailable
#34 HOUSING ASSY,CONT,R.H 46091-1078	$134.19
Available to order. Add to View Price
#35 KNOB,LIGHTING SW R.H 46043-004	$5.05
Available to order. Add to View Price
#36 SWITCH ASSY,HORN BUTN 27010-1009	$8.88
Available to order. Add to View Price
#37 WASHER,10.5X20X1 92022-239	$3.80
Available to order. Add to View Price
#38 SWITCH,CLUTCH 27043-002	$38.34
Unavailable
