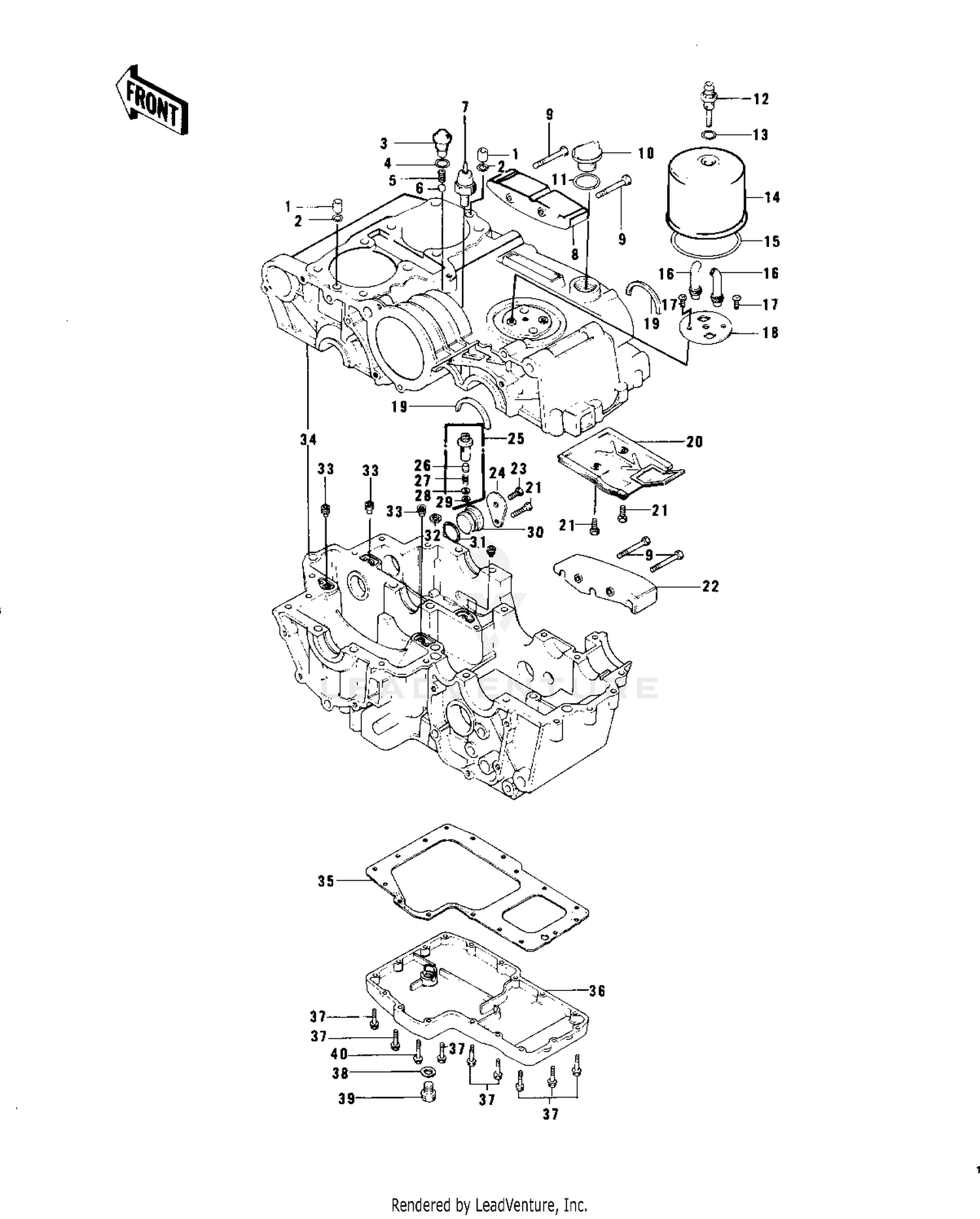

Crankcase/breather Cover/oil Pan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING
92055-093
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG,FILTER COVER
92066-050
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING,18MM
670B2018
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
92081-109
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH,OIL PRESSURE
27010-1157
|
$41.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH,OIL PRESSURE
27010-1157
|
$41.08 | ||
|
Unavailable |
|||
|
#8
SLIPPER,PRIMARY CHAIN
12053-020
|
$40.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,FLANGED,8X35
92001-1577
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP-OIL FILLER
16115-013
Superseded by 16115-1062
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,BREATHER FITTING
92003-098
|
$48.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY,BREATHER
14070-003
|
$28.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY,BREATHER
14070-007
|
$44.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING,91MM
92055-052
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE,BREATHER PLATE
92059-118
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE,BREATHER
92059-140
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN-CROS,6X18
220B0618
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE,BREATHER
14068-007
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING-POSITION
14013-004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE,BREATHER
14068-008
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#22
SLIPPER,PRIMARY CHAIN
12053-021
|
$38.86 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
92026-115
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE-ASSY-RELIEF
16130-1001
|
$39.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE-ASSY-RELIEF
16130-1001
|
$39.58 | ||
|
Unavailable |
|||
|
#26
PISTON,RELEAF VALVE
16126-002
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,RELEAF VALVE
16133-003
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER,RELEAF VALVE
92026-097
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP, 12MM
481J1200
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG
92066-049
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
0 RING
670B3030
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
O RING,0.D=18MM
92055-048
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW,SLOTTED
92013-007
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
SET-CRANKCASE
14001-5092
|
$1,359.12 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, OIL PAN
16112-004
Superseded by 11060-1432
|
$45.77 | ||
|
Available to order. Add to View Price |
|||
|
#36
PAN,OIL
16110-004
|
$113.17 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT-FLANGED,6X25
130G0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#38
GASKET,12X22X2
92065-097
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG,OIL DRAIN,12X15
92066-1174
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEX HEAD, 6X34
92003-159
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
