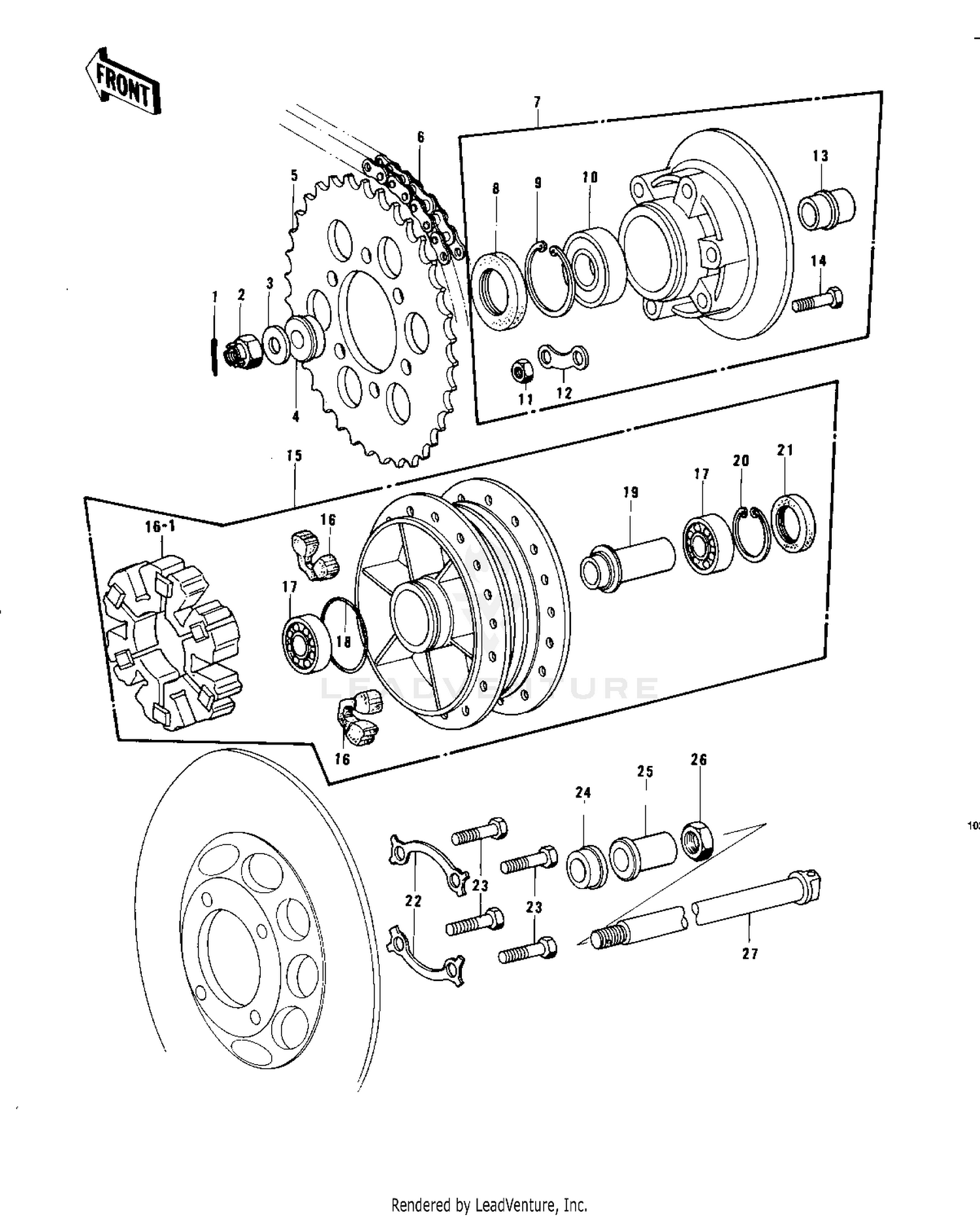

Rear Hub/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN-COTTER,4.0X30
550D4030
Superseded by 550AA4030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,PLAIN,20MM
92022-248
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR,REAR AXLE
42032-060
|
$44.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET,REAR,38T
42041-1054
|
$112.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAIN,530X106 SH-D
92057-1044
|
$411.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
COUPLING ASSY,RR HUB
42008-028
|
$180.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL-OIL,AJN40627
92050-027
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING-SNAP,62MM
92033-1044
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING-BALL,6206-9C3
601B6206
Superseded by 92045-0110
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER LOCK
92088-007
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLEEVE
42036-024
|
$77.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
92001-161
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRUM ASSY,REAR BRAKE
42005-048
|
$518.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHOCK DAMPER
42014-025
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#16-1
SHOCK DAMPER
42014-032
|
$58.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING BALL #6304
601B6304
|
$35.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR,BRG
42010-030
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,LOCK
92088-024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,LOCK
92088-023
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
92001-160
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR,REAR AXLE
42032-061
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SLEEVE
42036-025
|
$30.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
92016-057
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#27
AXLE,REAR
42031-052
|
$85.34 | ||
|
Available to order. Add to View Price |
|||
