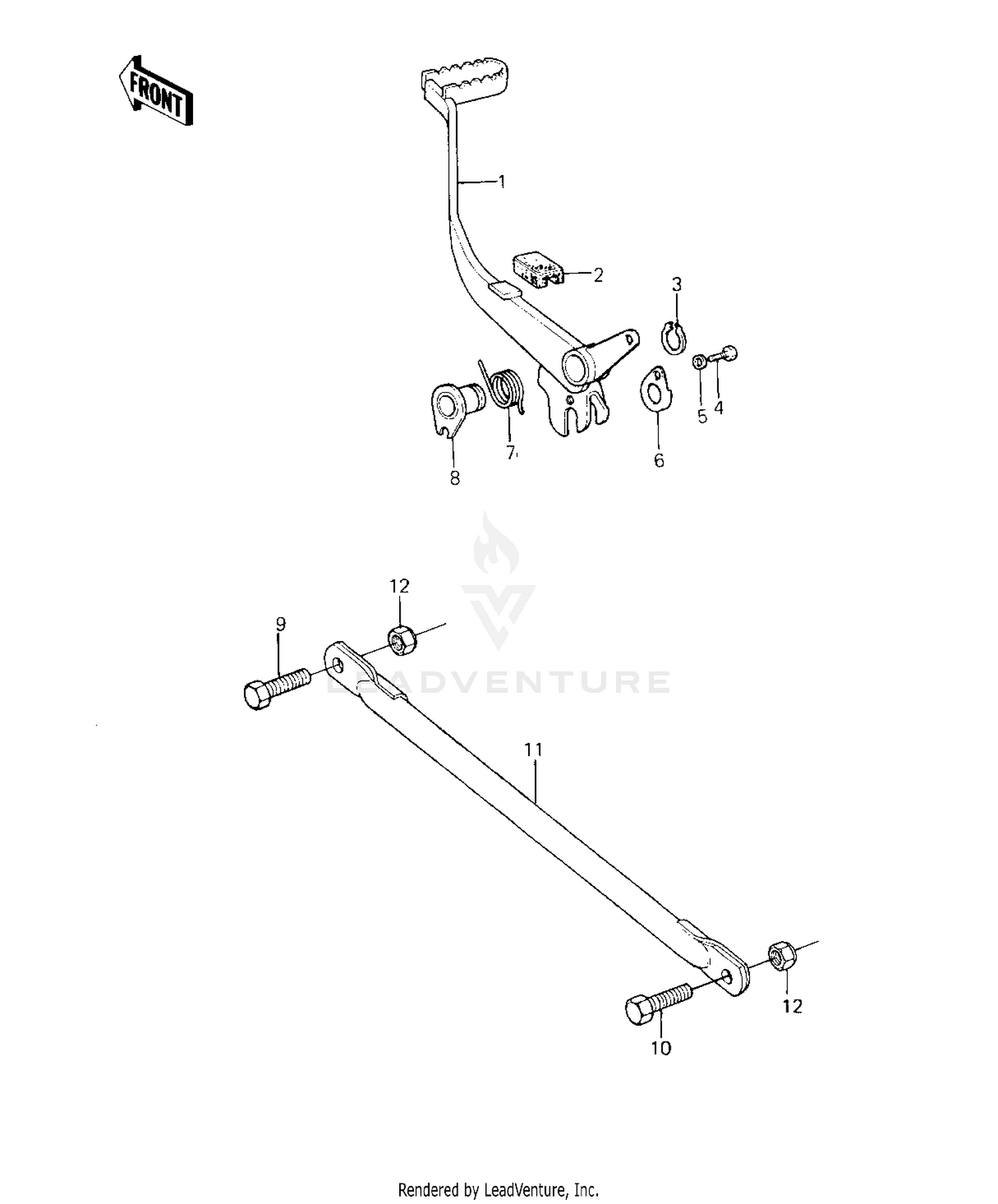

1980 Kawasaki KE125 BRAKE PEDAL/TORQUE LINK ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,BRAKE
43001-058
|
$99.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER RUBBER,BK PDL
92075-220
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP-TYPE-C,22MM
480J2200
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE
43081-002
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING BRAKE PEDAL
43005-032
|
$7.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR,BRAKE PEDAL
92027-210
|
$34.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,HEX HEAD,10X22
113G1022
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,10X28
113G1028
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
TORQUE LINK,REAR BRAK
43007-048
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,10MM
92019-016
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
