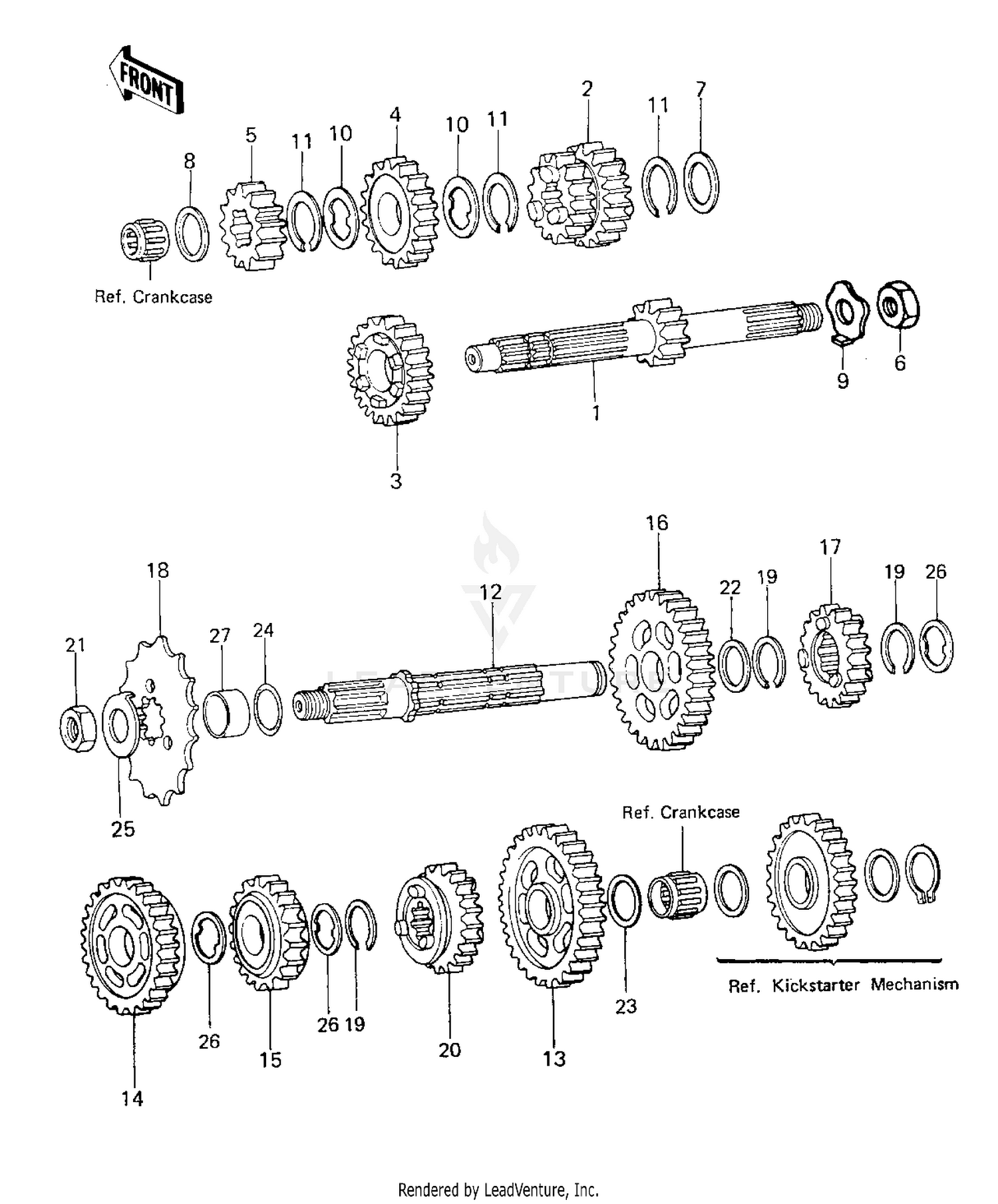

1980 Kawasaki KE125 TRANSMISSION ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,DRIVE
13127-045
|
$107.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
3RD&4TH GEAR,DRIVE SF
13129-1010
|
$129.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
5TH GEAR,DRIVE SHAFT
13129-1018
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
TOP GEAR,DRIVE,SHAFT
13129-1021
|
$84.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
2ND GEAR,DRIVE SHAFT
13130-036
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,14MM
315B1400
Superseded by 315AA1400
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,18.3X22X0.5
92022-271
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,14.3X24X1
92022-272
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-LOCK,14MM
92024-046
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,LOCK
92024-055
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING-SNAP
92033-028
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT,OUTPUT
13128-040
|
$158.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOW GEAR,OUTPUT SHAFT
13129-050
|
$88.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
3RD GEAR,OUTPUT SHAFT
13129-1011
|
$92.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
4TH GEAR,OUTPUT SHAFT
13129-1015
|
$103.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
2ND GEAR,OUTPUT SHAFT
13131-043
|
$49.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOP GEAR,OUTPUT SHAFT
13137-043
|
$88.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET-OUTPUT,14T
13144-1058
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
ENGINE SPROCKET,13T
13144-053
|
$45.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
ENGINE SPROCKET,1ST
13144-054
|
$47.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING-SNAP
92033-028
|
$8.24 | ||
|
Unavailable |
|||
|
#20
5TH GEAR,OUTPUT SHAFT
13248-003
|
$47.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,14MM
315B1400
Superseded by 315AA1400
|
$2.03 | ||
|
Unavailable |
|||
|
#22
WASHER,18.3X22X0.5
92022-271
|
$5.14 | ||
|
Unavailable |
|||
|
#23
WASHER,PLAIN
92022-273
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING-O,17.5X1.5
92055-022
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,
92024-052
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER,LOCK
92024-055
|
$4.82 | ||
|
Unavailable |
|||
|
#27
COLLAR,ENG SPROCKET
92027-1077
|
$19.13 | ||
|
Available to order. Add to View Price |
|||
