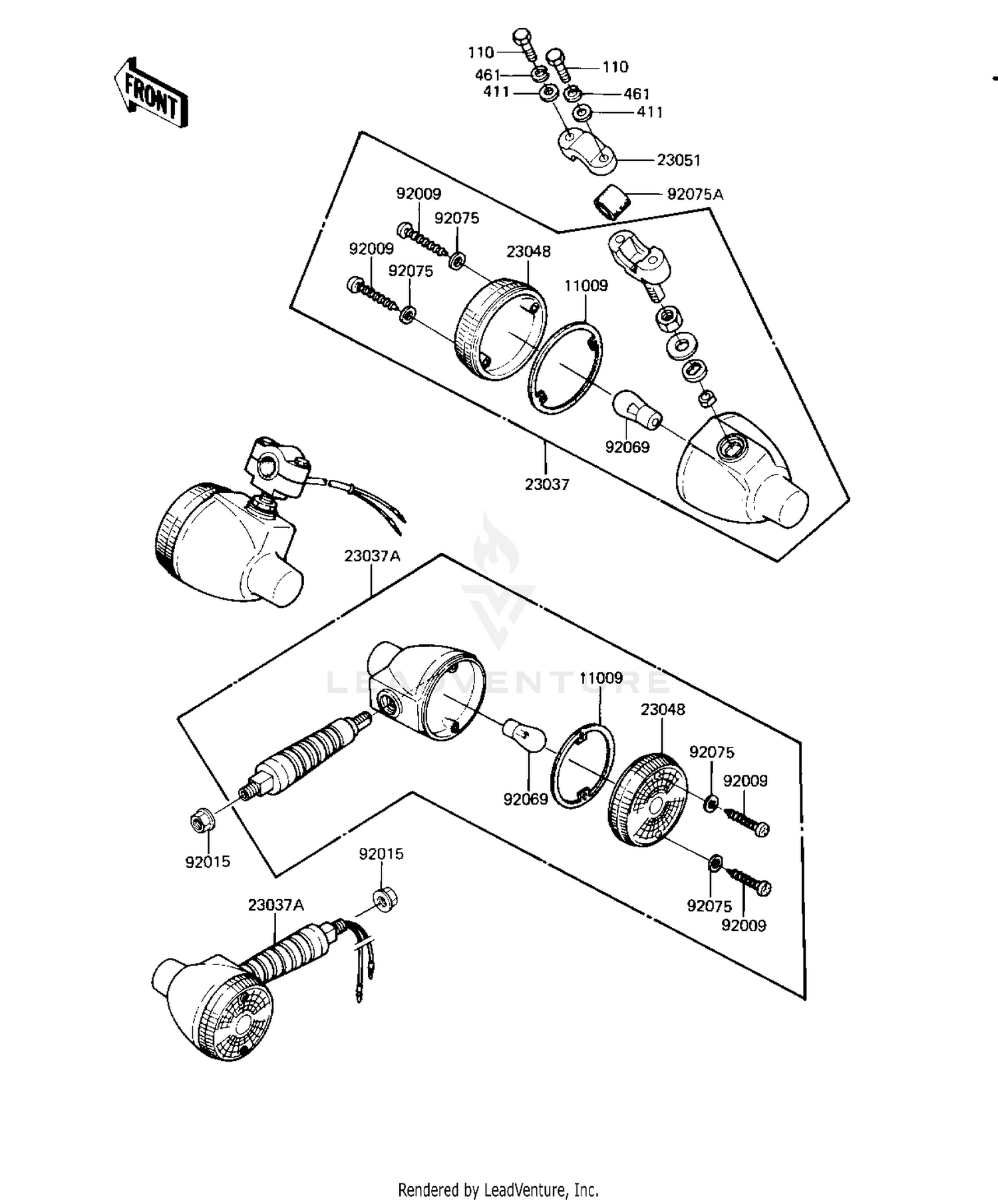

1980 Kawasaki KE125 TURN SIGNALS ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,SGNL LAMP LENS
11009-1128
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#23037
LAMP ASSY,FR SIGNAL
23037-1039
|
$83.42 | ||
|
Available to order. Add to View Price |
|||
|
#23037A
LAMP ASSY,SIGNAL
23037-1087
|
$64.68 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP
23048-1076
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#23051
BRACKET,F SIGNAL LAMP
23051-1018
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING
92009-1056
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1428
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,6V 21CP
92069-056
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#92075
WASHER,PLAIN,4MM
23058-002
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER
23066-003
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT,HEX HEAD,5X30
110B0530A
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN-SMALL
411B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
