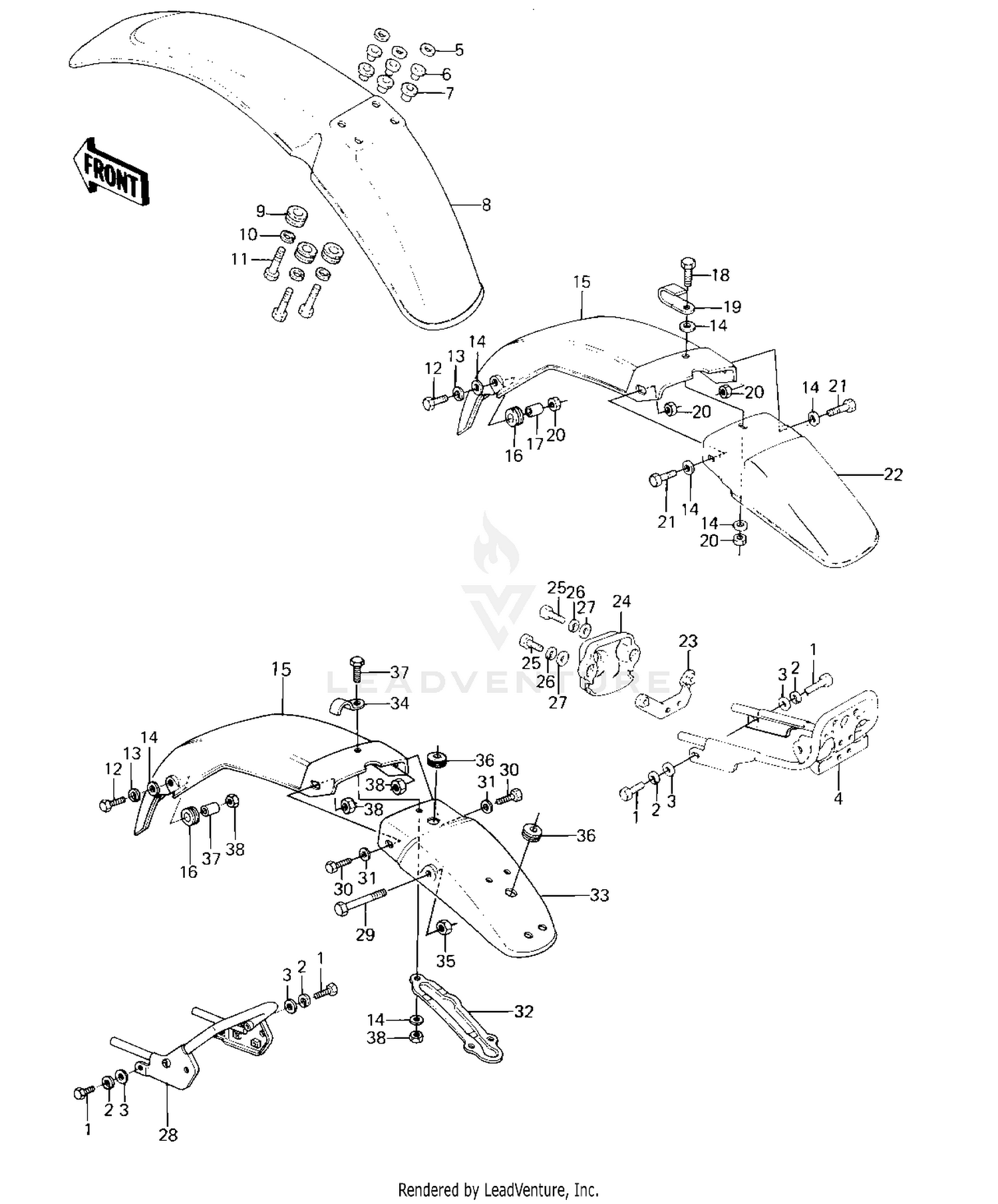

1980 Kawasaki KE125 FENDERS ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY,REAR
39137-1008
|
$92.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,7X24X1.6
92022-228
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR,L=11.1
92027-194
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER RUBBER
92075-103
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER-FR,F.RED
35004-1030-6L
|
$92.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,RR FEND
92075-121
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#14
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Unavailable |
|||
|
#15
FENDER-RR
35022-100
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBBER
92075-105
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
92027-103
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.10 | ||
|
Unavailable |
|||
|
#19
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
FENDER-RR,F.RED
35022-1053-6L
|
$29.41 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,TAIL LAMP
11034-1740
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER,TAIL LAMP
14025-1169
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#27
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Unavailable |
|||
|
#28
STAY-COMP,RR
39137-1011
|
$89.86 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-SMALL-UPSET,8X45
115G0845
Superseded by 115BA0845
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#32
GUSSET,REAR FENDER
35021-005
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#33
FENDER-RR,RED
35022-1083-B1
|
$72.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP WIRING HARNESS
35024-002
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT,LOCK,8MM
92015-1124
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET,TAIL LAMP WIRE
92071-079
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Unavailable |
|||
|
#38
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Unavailable |
|||
