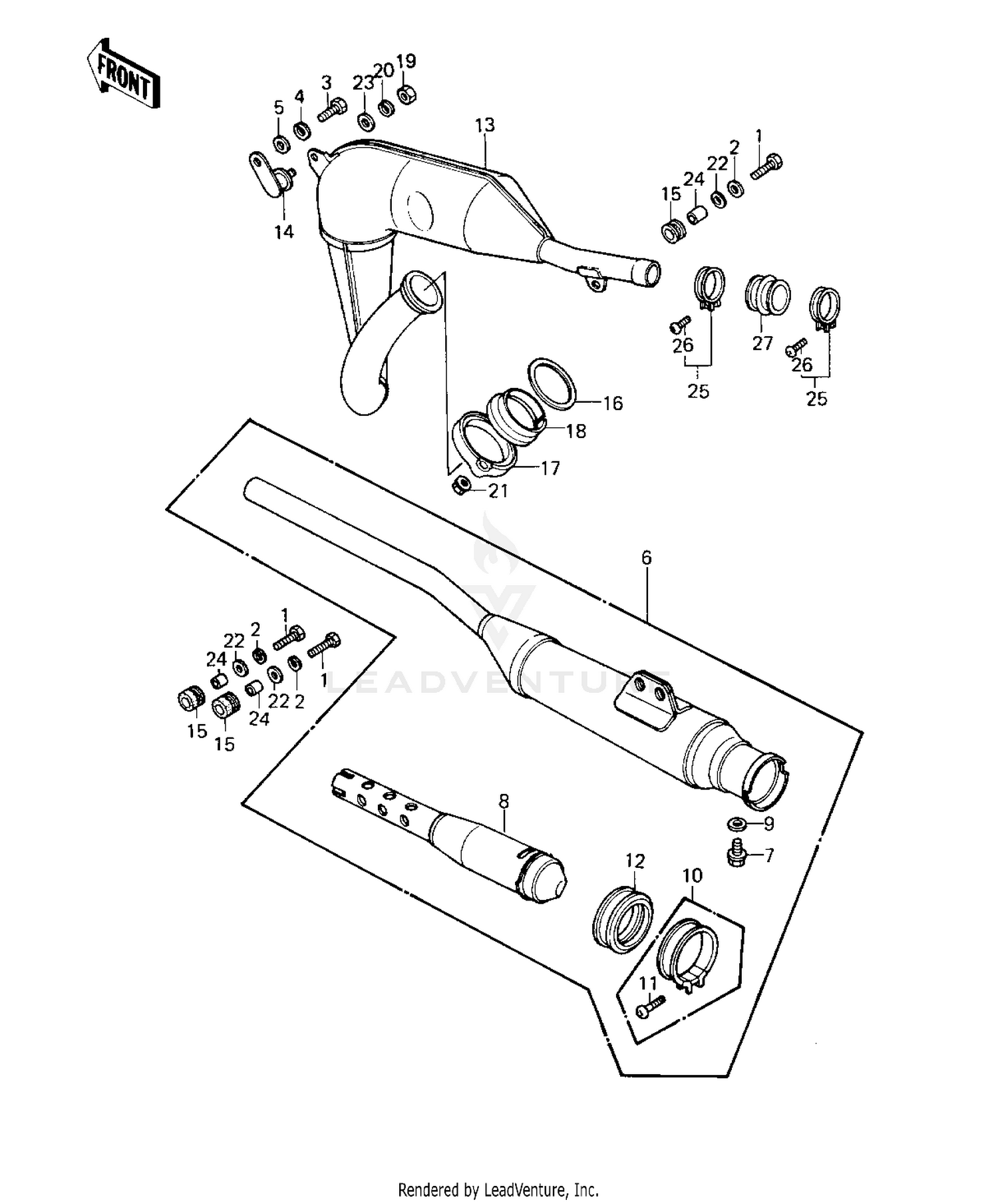

1980 Kawasaki KE125 MUFFLER ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT HEX HEAD 8X28
114G0828
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Unavailable |
|||
|
#5
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER
18001-1279
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAFFLE PIPE,MUFFLER
49099-1028
|
$69.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
92037-171
Superseded by 92171-1563
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SHIELD,MUFFLER
92093-1013
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY-MUFFLER
18006-1135
|
$332.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,MUFFLER
18061-060
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER RUBBER-MUFFLER
18063-005
|
$4.85 | ||
|
Unavailable |
|||
|
#16
GASKET,EXHAUST PIPE
18067-008
Superseded by 11060-1496
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER,EXHAUST PIPE
18069-057
|
$53.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
INSERT,EXHAUST HOLDER
18070-007
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Unavailable |
|||
|
#21
NUT,LOCK,8MM
92017-013
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,8X26X2.3
92022-1564
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,8.5X20X1.6
92022-1561
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR,8.8X12X10.7
92027-102
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP,CONNECTOR
92037-1127
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-PAN-CROS,5X25
220B0525
Superseded by 220AA0525
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL,MUFFLER CONNECT
92093-1020
|
$26.28 | ||
|
Available to order. Add to View Price |
|||
