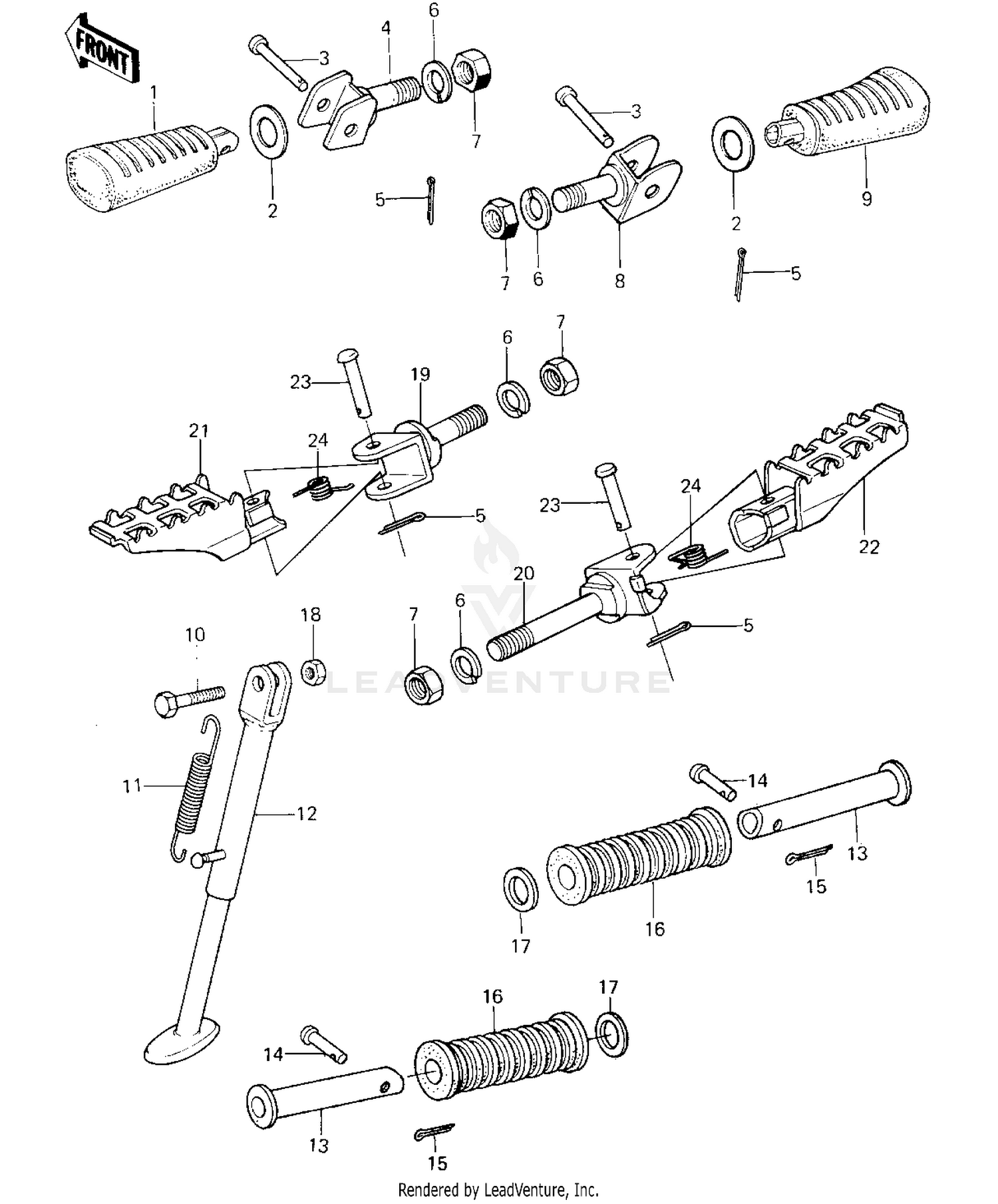

1980 Kawasaki KE125 FOOTRESTS/STAND ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEP-ASSY,FR,LH
34027-1114
|
$32.54 | ||
|
Unavailable |
|||
|
#2
WASHER,25X36X2.3
92022-250
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,8X31
92043-080
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,FOTRST BAR,LH
34003-051
|
$50.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN-COTTER,2.5X15
550D2515
Superseded by 550AA2515
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER SPRING 14MM
461F1400
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,14MM
314B1400
Superseded by 314AA1400
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,FOTRST BAR,RH
34003-052
|
$50.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
STEP-ASSY,FR,RH
34027-1115
|
$39.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEX HEAD 10X35
92001-1252
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING,SIDE STAND
34025-008
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND-SIDE
34024-1043
|
$57.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
STEP,RR
34028-009
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN,6X28
92043-1464
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER,REAR FOOTREST
92076-024
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-PLAIN (OPT)
92022-199
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER-STEP,FR,LH
34003-1112
|
$50.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER-STEP,RH
34003-1111
|
$45.17 | ||
|
Available to order. Add to View Price |
|||
|
#21
STEP,L.H FR FOOTREST
34028-1013
|
$40.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
STEP,R.H FR FOOTREST
34028-1014
|
$45.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN,8X31
92043-080
|
$5.14 | ||
|
Unavailable |
|||
|
#24
SPRING,FR FOOTREST
92081-1133
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
