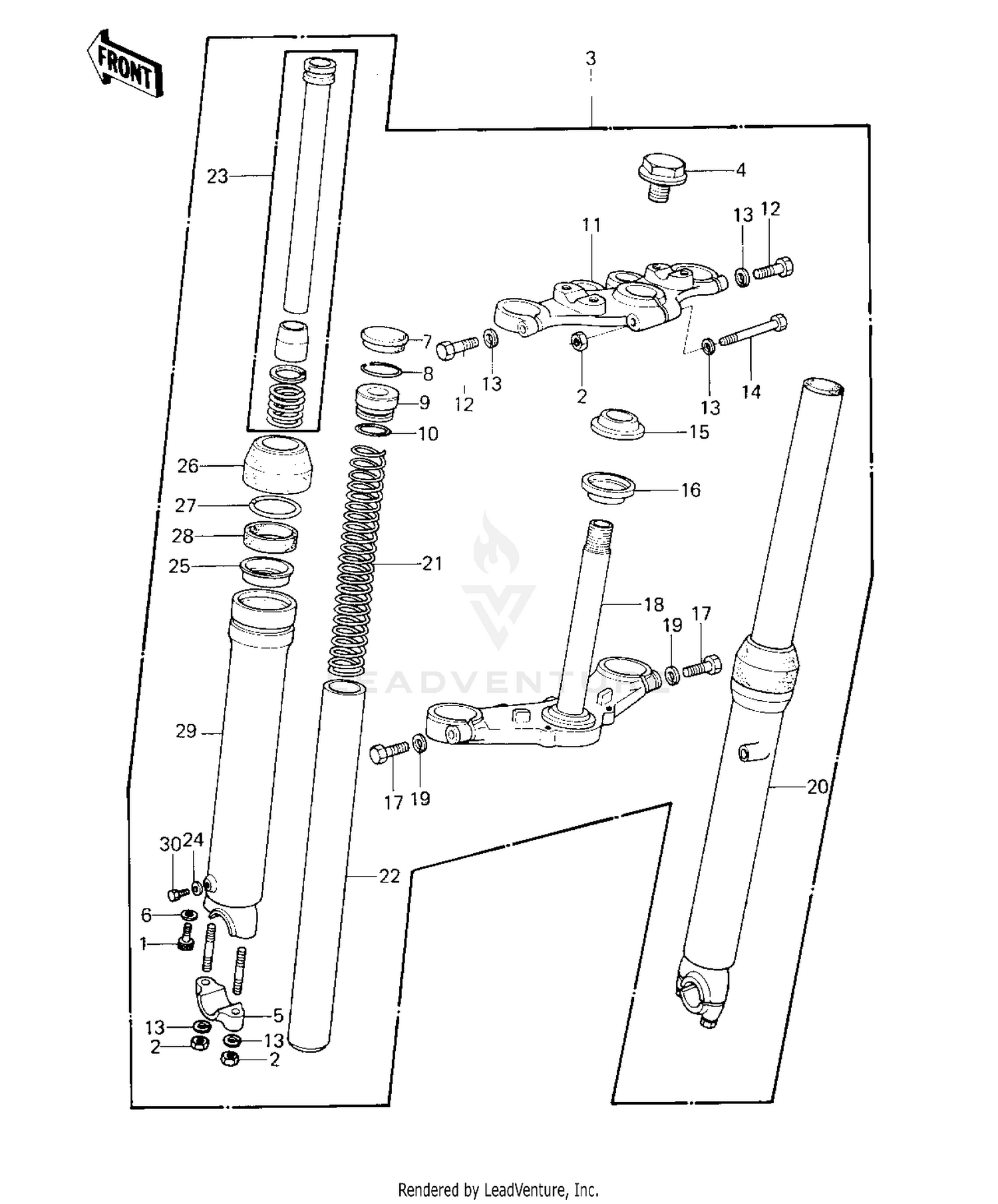

1980 Kawasaki KE125 FRONT FORK ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,FORK CYLINDER
44041-078
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,LOCK,8MM
92015-1124
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK-FRONT
44001-1230
|
$683.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,STEERING STEM HE
92001-1741
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER,FRONT AXLE
44063-009
|
$36.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,RUBBER,FORK TOP
11012-1119
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING-SNAP
44044-023
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT-FORK SPRING
44029-022
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-O
44046-025
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
HEAD,STEERING STEM
44039-1030
|
$202.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,HEX HEAD,8X40
92001-1063
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,HEX HEAD,8X55
92001-1064
|
$9.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONE STERNG BERG LOW
92047-010
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL,STEERING STEM
44010-027
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,HEX HEAD 10X35
92001-1252
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
STEM,STEERING
44037-1042
|
$130.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE,RH,FORK OUTER
44006-1045
|
$180.52 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING,FORK
44026-1049
|
$46.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE,FRONT INNER
44013-1033
|
$393.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
CYLINDER-FORK
44022-1037
|
$64.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET,DRAIN PLUG
44045-047
Superseded by 44045-052
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER,OUTER TUBE
92026-1073
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SHIELD,FORK
44010-026
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING-SNAP,45MM
44044-020
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL,FORK
44009-018
|
$31.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
TUBE,LH,FORK OUTER
44005-1045
|
$180.52 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
