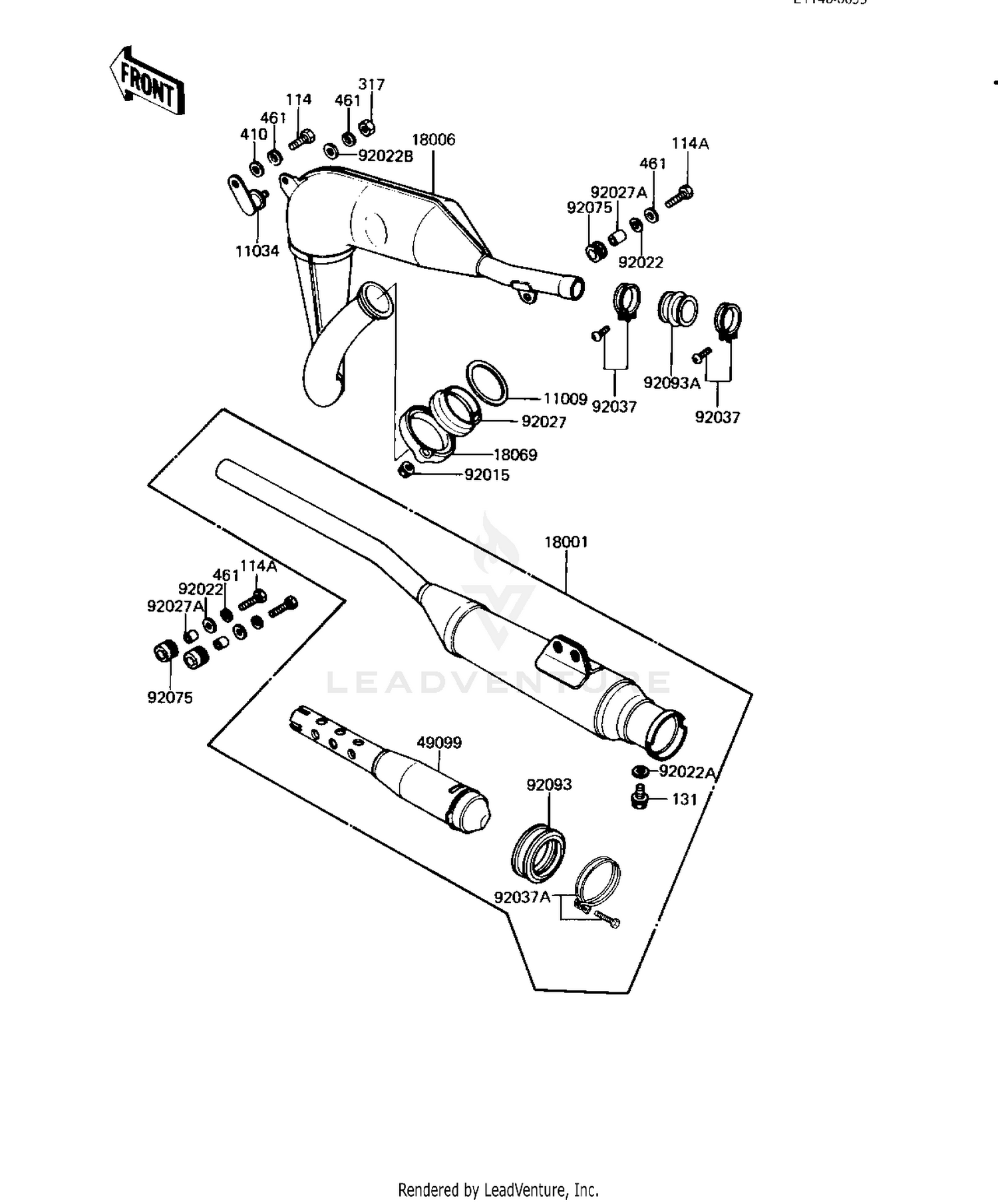

1980 Kawasaki KE125 MUFFLER ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,EXHAUST PIPE
18067-008
Superseded by 11060-1496
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#11034
BRACKET,MUFFLER
18061-060
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#18001
MUFFLER
18001-1279
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#18006
BODY-MUFFLER
18006-1135
|
$332.35 | ||
|
Available to order. Add to View Price |
|||
|
#18069
HOLDER,EXHAUST PIPE
18069-057
|
$53.69 | ||
|
Available to order. Add to View Price |
|||
|
#49099
BAFFLE PIPE,MUFFLER
49099-1028
|
$69.85 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92017-013
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8X26X2.3
92022-1564
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,8.5X20X1.6
92022-1561
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92027
INSERT,EXHAUST HOLDER
18070-007
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,8.8X12X10.7
92027-102
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,CONNECTOR
92037-1127
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP MUFFLER
92037-1190
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER-MUFFLER
18063-005
|
$4.85 | ||
|
Unavailable |
|||
|
#92093
DUST SHIELD,MUFFLER
92093-1013
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,MUFFLER CONNECT
92093-1020
|
$26.28 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#114A
BOLT HEX HEAD 8X28
114G0828
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#131
BOLT-FLANGED,6X8
130B0608
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
