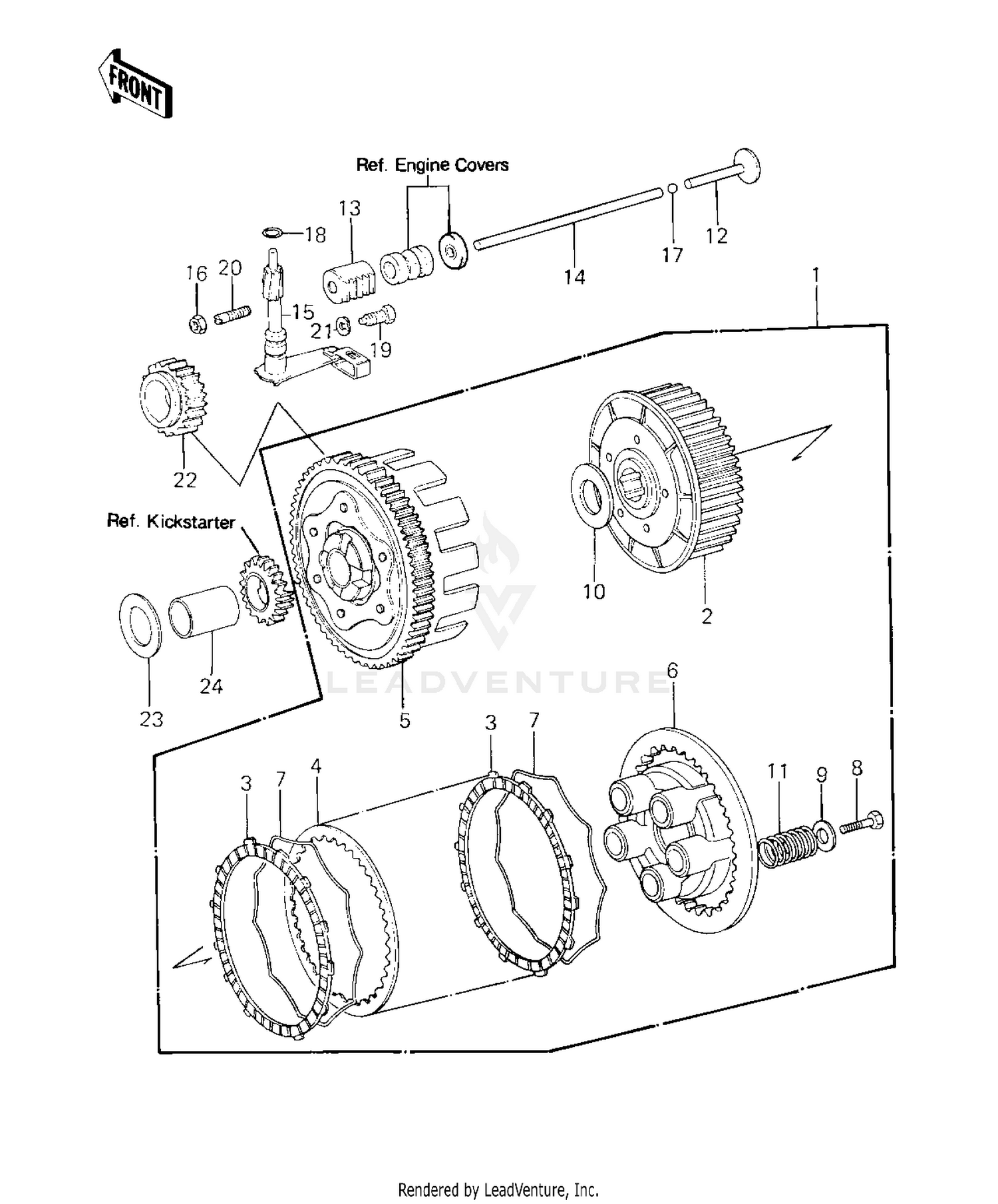

1980 Kawasaki KE125 CLUTCH ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
Item | MSRP | Qty | |
---|---|---|---|
#1
CLUTCH-ASSY
13081-1053
|
$222.80 | ||
Available to order. Add to View Price |
|||
#2
CLUTCH-ASSY
13081-1053
|
$222.80 | ||
Unavailable |
|||
#2
HUB,CLUTCH
13087-038
|
$80.24 | ||
Available to order. Add to View Price |
|||
#3
PLATE-FRICTION
13088-1015
|
$19.82 | ||
Available to order. Add to View Price |
|||
#4
PLATE CLUTCH STEEL
13089-003
|
$13.71 | ||
Available to order. Add to View Price |
|||
#5
HOUSING CLUTCH
13095-1034
|
$419.66 | ||
Available to order. Add to View Price |
|||
#5
HOUSING CLUTCH
13095-1034
|
$419.66 | ||
Unavailable |
|||
#6
PLATE-CLUTCH SPRING
13187-004
|
$39.82 | ||
Available to order. Add to View Price |
|||
#7
RING-CLUTCH STEEL
13229-002
|
$12.73 | ||
Available to order. Add to View Price |
|||
#8
BOLT,5X18
92003-078
|
$4.46 | ||
Unavailable |
|||
#9
WASHER-PLAIN,5MM
92022-167
|
$2.68 | ||
Available to order. Add to View Price |
|||
#10
WASHER,17.3X30X1.4
92022-270
|
$9.15 | ||
Available to order. Add to View Price |
|||
#11
SPRING,CLUTCH
92081-123
|
$8.48 | ||
Available to order. Add to View Price |
|||
#12
PUSHER-CLTCH SPRG PLT
13116-016
|
$19.42 | ||
Available to order. Add to View Price |
|||
#13
ROD,CLTCH RELESE PUSH
13116-026
|
$33.72 | ||
Available to order. Add to View Price |
|||
#14
ROD,CLUTCH PUSH,LONG
13116-027
|
$15.57 | ||
Available to order. Add to View Price |
|||
#15
SHAFT ASY,CLTCH RELES
13234-003
|
$92.92 | ||
Available to order. Add to View Price |
|||
#16
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
Available to order. Add to View Price |
|||
#17
BALL STEEL 7/32'
600A0700
|
$1.49 | ||
Available to order. Add to View Price |
|||
#18
O RING,10MM
670B2010
|
$1.47 | ||
Available to order. Add to View Price |
|||
#19
BOLT,CLUTCH RELEASE
92003-130
|
$5.60 | ||
Available to order. Add to View Price |
|||
#20
SCREW,SLOTTED,6X26
92014-015
|
$7.40 | ||
Available to order. Add to View Price |
|||
#21
WASHER,LOCK
92031-009
|
$4.26 | ||
Available to order. Add to View Price |
|||
#22
GEAR,PRIMARY 22T
13097-1040
|
$132.29 | ||
Available to order. Add to View Price |
|||
#22
GEAR,PRIMARY 22T
13097-1040
|
$132.29 | ||
Unavailable |
|||
#23
WASHER,17.3X30X1.4
92022-270
|
$9.15 | ||
Unavailable |
|||
#24
BUSHING,CLUTCH
92028-138
|
$25.92 | ||
Available to order. Add to View Price |
