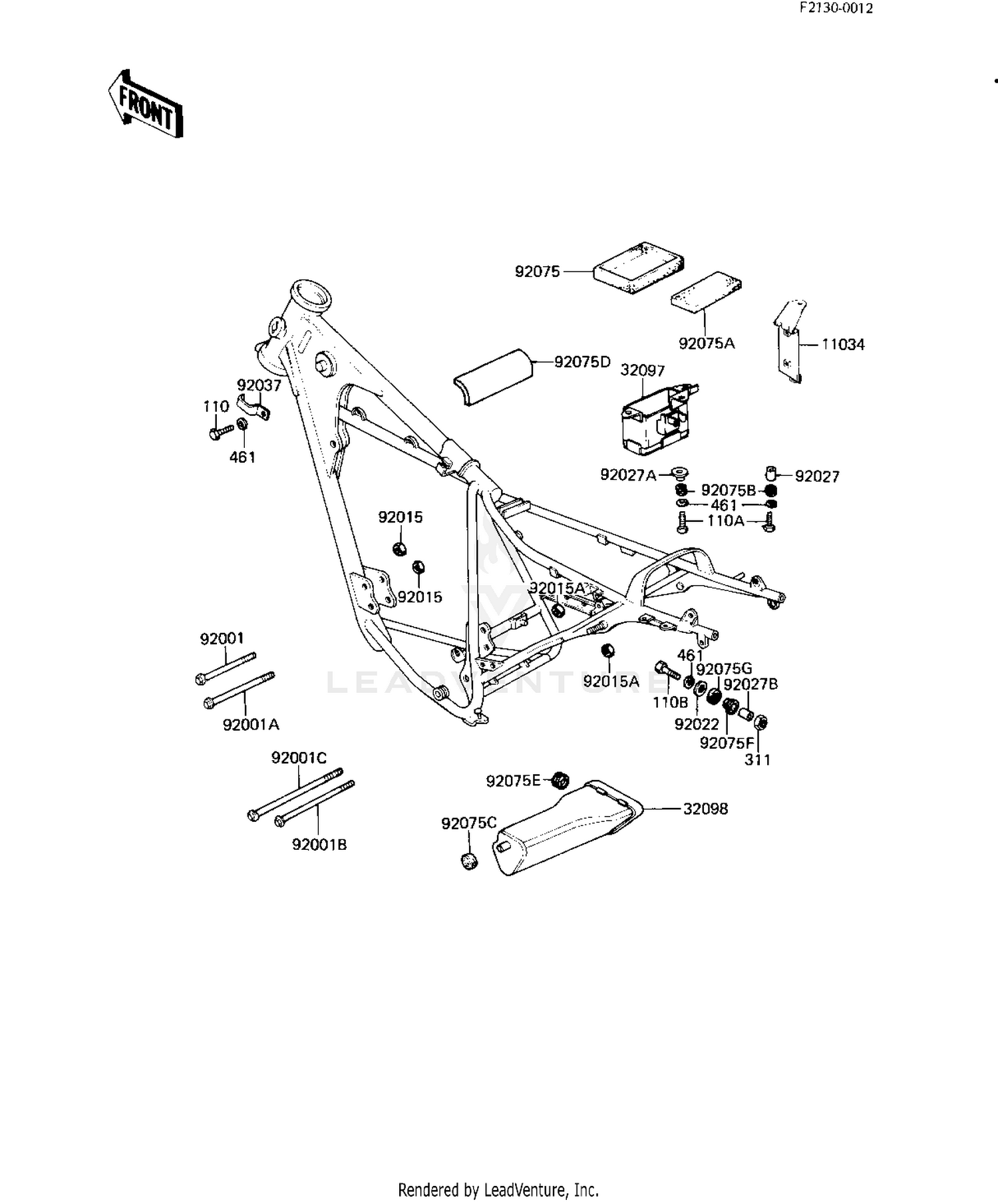

1980 Kawasaki KE125 FRAME FITTINGS ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,REGULATOR
11034-1798
|
$10.47 | ||
|
Available to order. Add to View Price |
|||
|
#32097
CASE-BATTERY
32097-030
|
$26.10 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE,TOOL
32098-022
|
$19.23 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,8X65
92001-1582
Superseded by 92002-1349
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT FLANGED,8X70
92001-1583
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,10X115
92001-1603
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,10X130
92001-1604
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,10MM
92015-1429
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X24X1.6
92022-228
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-103
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=7
92027-153
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,6.8X10X12
92027-162
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,WIRE HARNESS
92037-150
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#92075
MAT-BATTERY SIDE
32103-023
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
MAT,BATTERY
32103-027
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER
92075-051
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER RUBBER
92075-107
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075D
DAMPER,AIR CLEANER
92075-1085
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#92075E
DAMPER RUBBER-OIL TNK
92075-150
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#92075F
DAMPER,MALE
92075-174
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92075G
DAMPER,FEMALE
92075-175
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#110B
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
