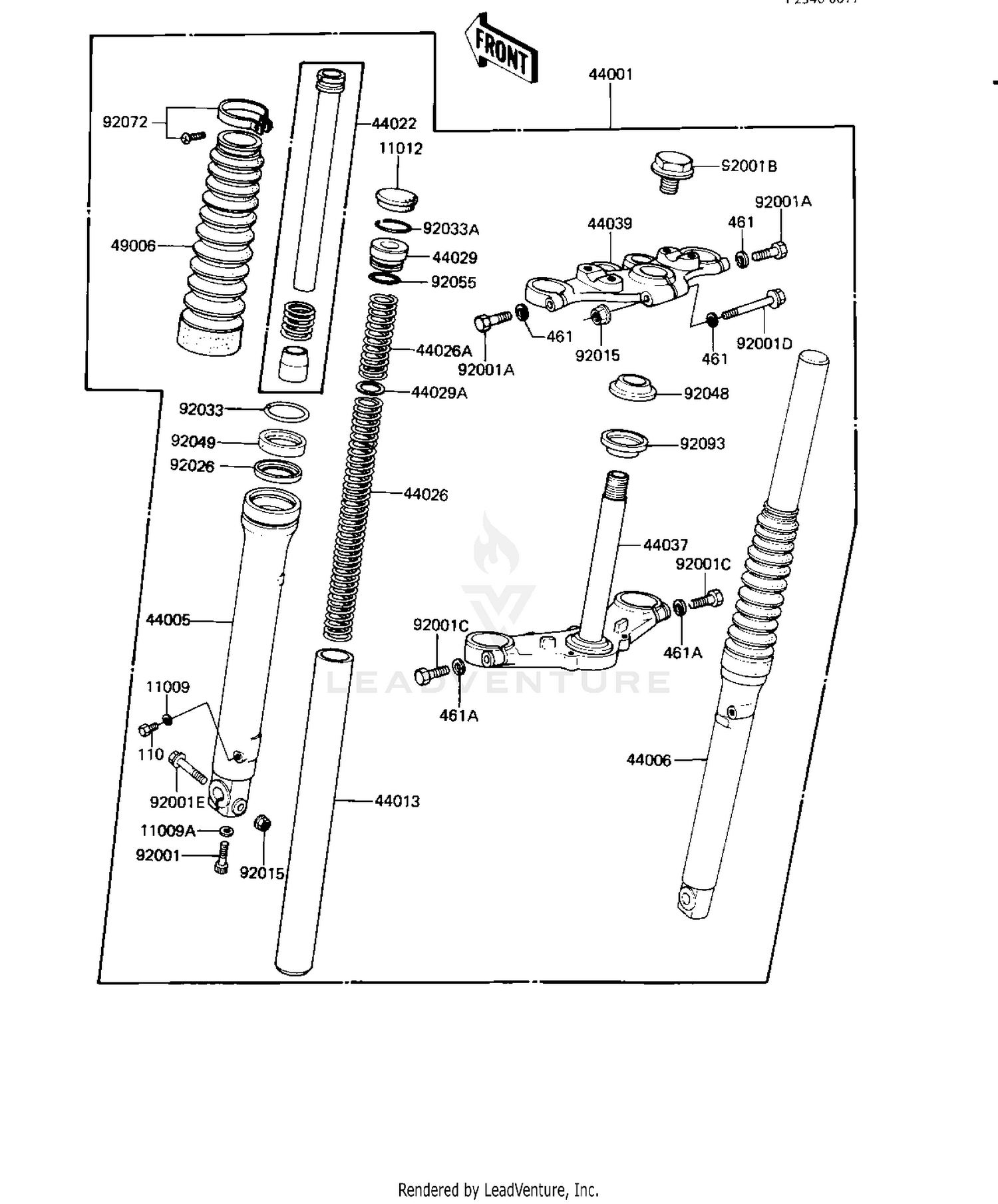

1980 Kawasaki KE125 FRONT FORK (KE125-A9) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,DRAIN PLUG
44045-047
Superseded by 44045-052
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK
11012-1124
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT,BLACK
44001-1297-6Z
|
$541.54 | ||
|
Available to order. Add to View Price |
|||
|
#44005
TUBE,LH,FORK OUTER
44005-1074
|
$186.07 | ||
|
Available to order. Add to View Price |
|||
|
#44006
TUBE,RH,FORK OUTER
44006-1074
|
$186.07 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1069
|
$161.98 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1065
|
$61.70 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,LWR
44026-1119
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,UPP
44026-1137
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-022
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
SEAT-FORK SPRING
44029-1033
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER,WG
44037-1078
|
$228.82 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1048
|
$112.85 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK,BLACK
49006-1047-6Z
|
$38.94 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
44041-078
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,HEX HEAD,8X40
92001-1063
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,STEERING STEM HE
92001-1741
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,HEX HEAD 10X35
92001-1252
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#92001E
BOLT,FLANGED,8X50
92001-1486
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1055
Superseded by 92015-1398
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK OUTER
92026-1099
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,45MM
44044-020
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
44044-023
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92048
CONE STERNG BERG LOW
92047-010
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER
92049-1080
|
$21.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
44046-025
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,FORK,FR
92072-1038
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,STEERING STEM
44010-027
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
