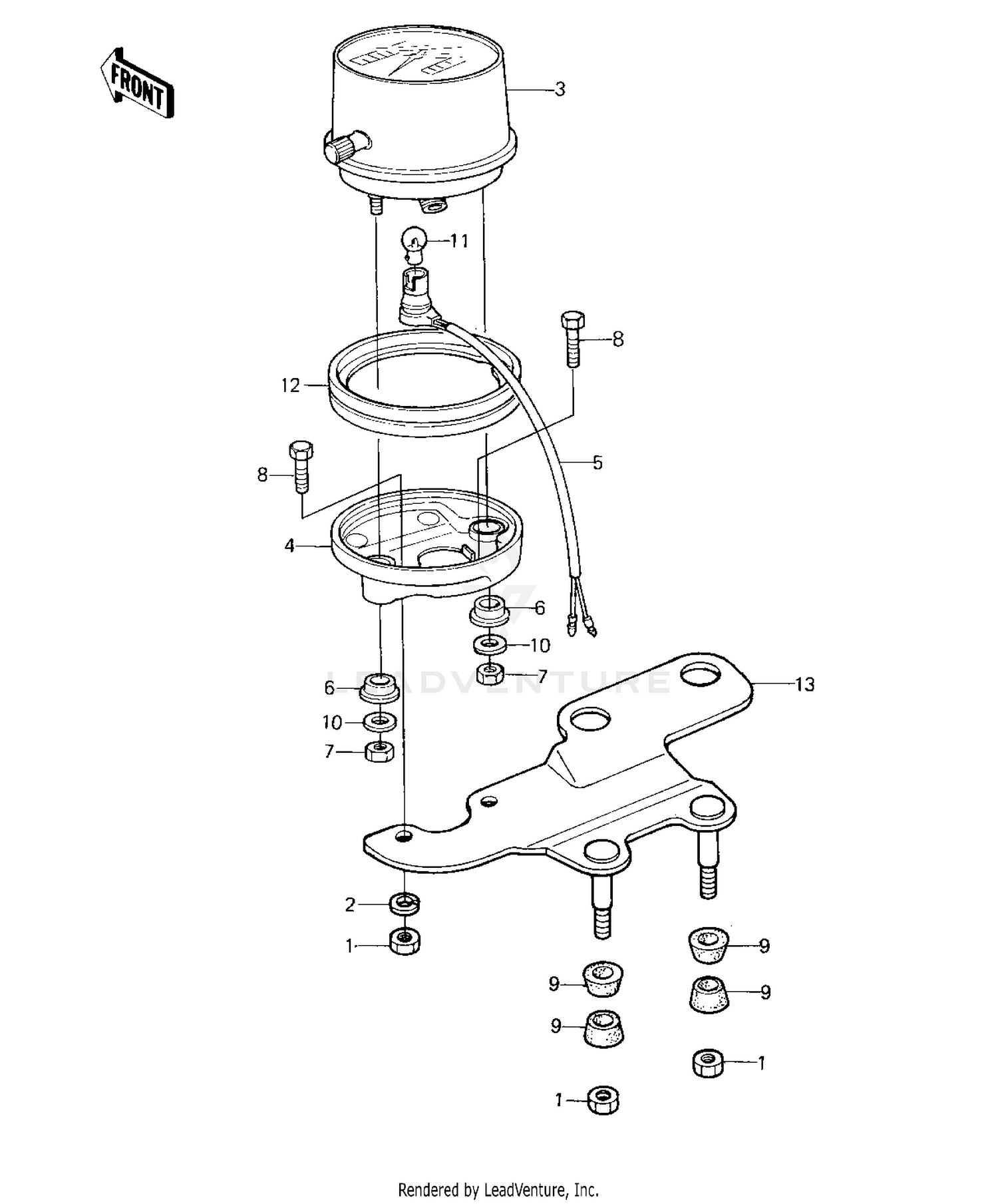

1980 Kawasaki KE125 METER ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER,KM/H&MPH
25005-1049
|
$347.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER,KM/H (Canada)
25005-1074
|
|||
|
Unavailable |
|||
|
#4
COVER,METER
14025-1075
|
$32.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET ASSY,SPEEDOMET
25010-021
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER RUBBER,MET FIT
25019-023
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,HEX HEAD,6X14
92003-204
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,METER
92075-248
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,5.2X16X1.2
92022-263
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB-6V 3W
92069-053
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER,METER
92075-1102
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,METER
25008-1025
|
$58.73 | ||
|
Available to order. Add to View Price |
|||
