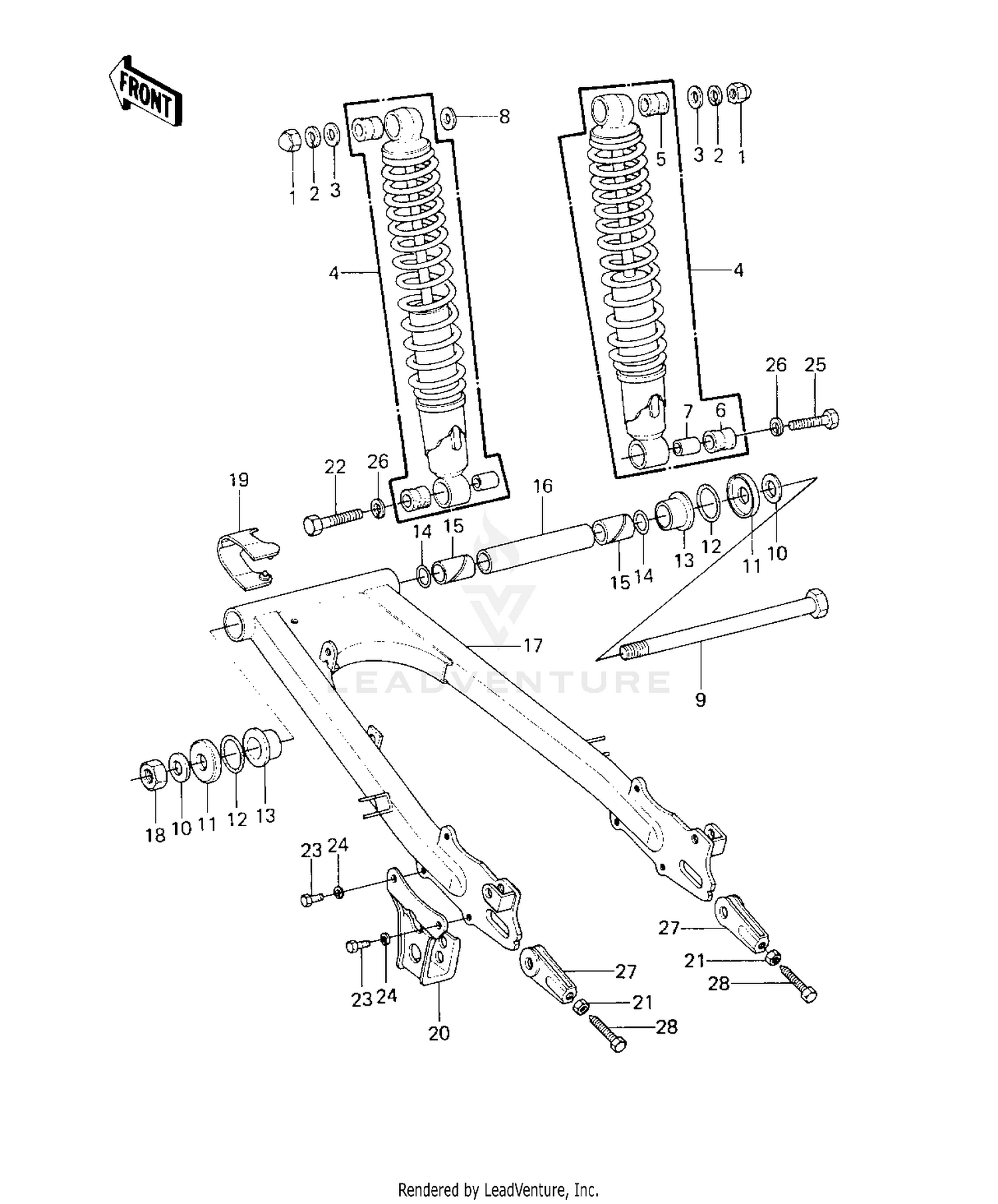

1980 Kawasaki KE125 SWING ARM/SHOCK ABSORBERS ('80-'81 A7/A8 OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT,CAP,10MM
92020-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,10.5X26X2.3
92022-044
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHOCK ABSBR RR
45014-1092
|
$246.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHOCK ABSBR RR
45014-1092
|
$246.88 | ||
|
Unavailable |
|||
|
#5
BUSH A-SHCK ABS RUBER
45017-010
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER,SHOCKABSORBER
92075-1020
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH SHCK ABS PVT SFT
45016-003
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT-SWING ARM PIVOT
33032-034
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Unavailable |
|||
|
#11
CAP-SWINGING ARM
33035-005
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
0 RING,30MM
671B2530
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSHING-SWING ARM
33033-009
|
$92.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
0 RING,16MM
92055-001
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
SLEEVE-SWINGING ARM
33034-016
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,SWING ARM,LONG
33036-007
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWING ARM
33001-1060
|
$155.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT,LOCK,12MM
92019-009
Superseded by 92210-1373
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD,CHAIN,FR
55020-1063
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUARD,CHAIN
55020-1026
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.14 | ||
|
Unavailable |
|||
|
#26
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Unavailable |
|||
|
#27
ADJUSTER,CHAIN
33040-1001
|
$21.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,8X50
92001-1399
Superseded by 92002-1076
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
