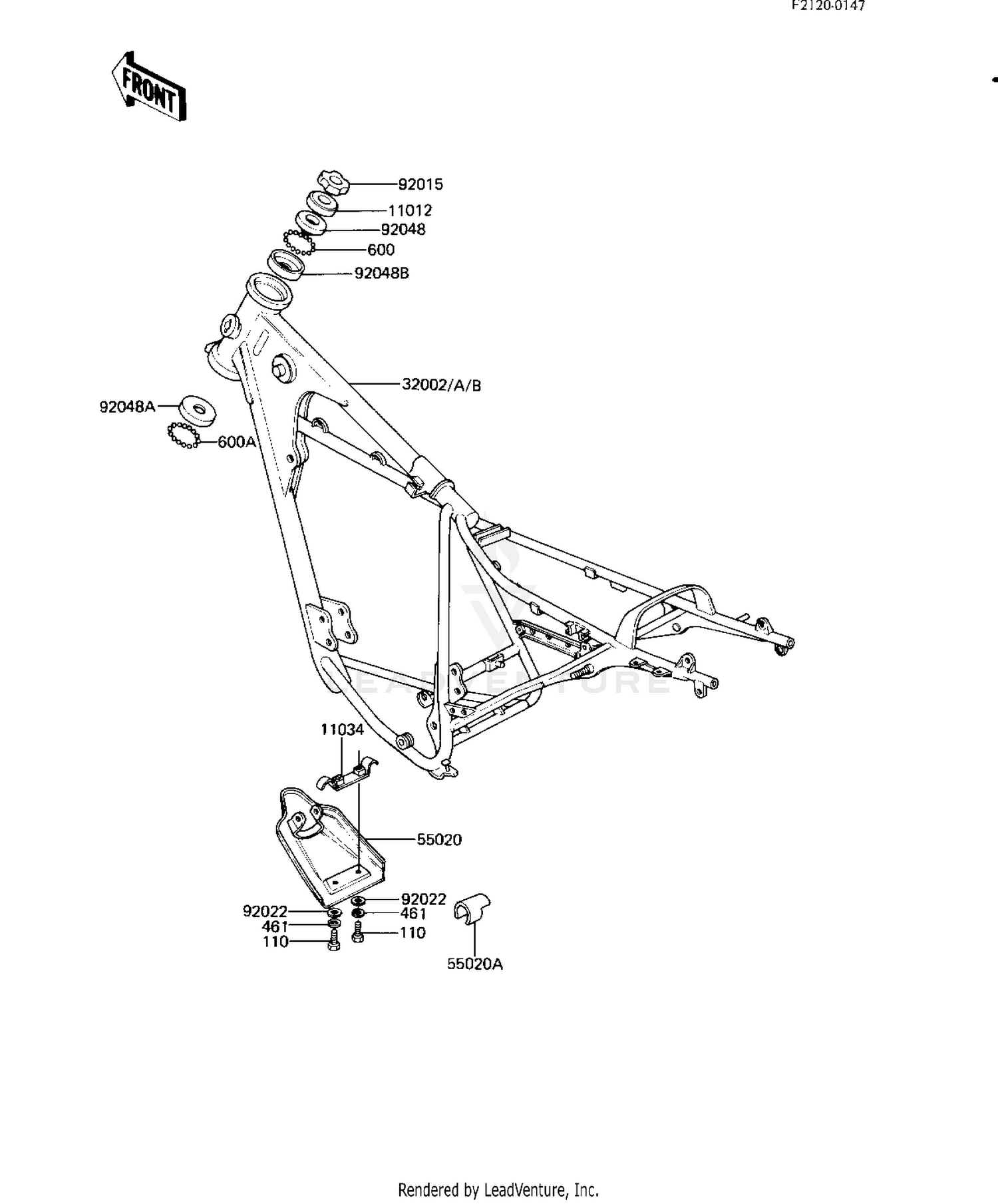

1980 Kawasaki KE125 FRAME ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,STEERING STEM
46098-018
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#11034
BRACKET,ENGINE GUARD
55016-008
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#32002
FRAME-COMP
32002-1307
|
$512.63 | ||
|
Available to order. Add to View Price |
|||
|
#32002A
FRAME-COMP,US (Canada)
32002-1487
|
|||
|
Unavailable |
|||
|
#32002B
FRAME-COMP,US (Canada)
32002-1487
|
|||
|
Unavailable |
|||
|
#55020
GUARD,ENGINE
55011-020
|
$43.93 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,CHAIN
55020-1045
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,STEERING STEM
92090-022
|
$19.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,STEERING STEM BEARING
92047-014
Superseded by 92048-0035
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#92048A
RACE STEERING BEARING
92048-005
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#92048B
RACE,STEERING STEM BEARING
92048-009
Superseded by 92048-0038
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,3/16
600A0600
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#600A
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
