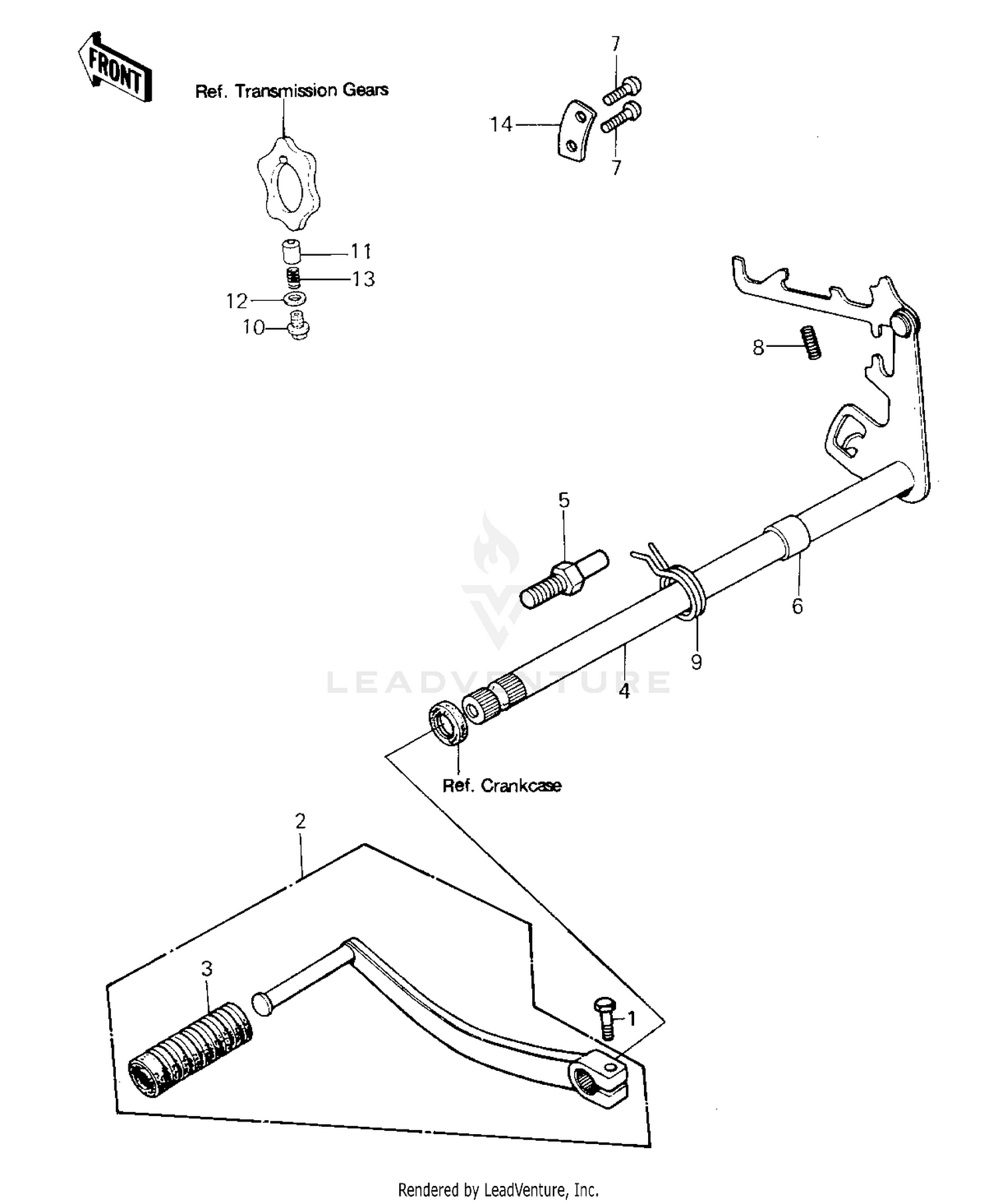

1980 Kawasaki KE125 GEAR CHANGE MECHANISM ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER-ASSY-CHANGE,PED
13242-1272
|
$62.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER ASY,GEAR SHIFT
13161-040
|
$84.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR,GEAR CHNG LEV
92027-205
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING,KICK PAWL
92081-124
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,TENSION
92081-1129
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,10MM
92001-131
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
92043-076
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
92065-090
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
92081-112
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE CHNG DRUM PSTN
13169-002
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
