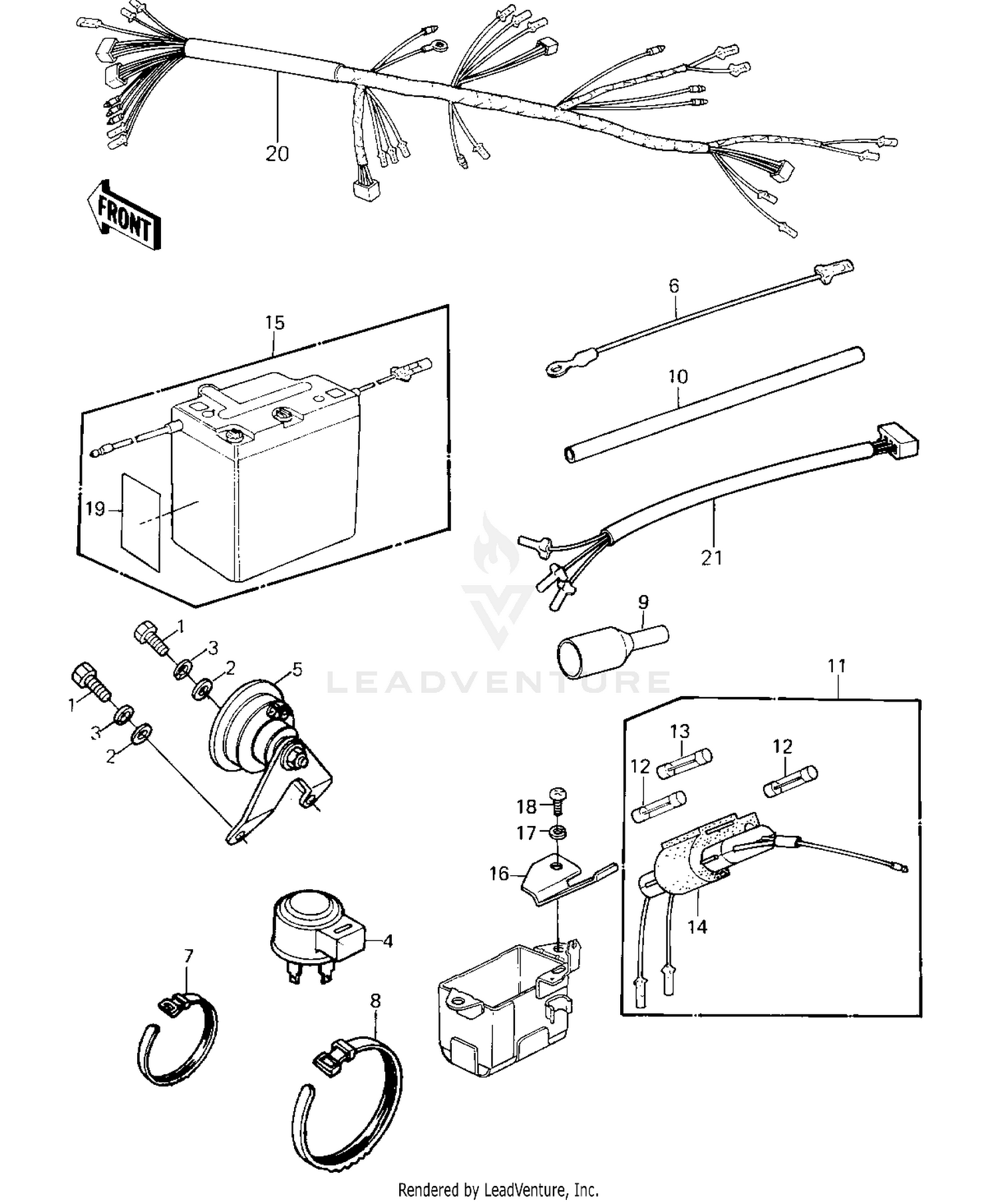

1980 Kawasaki KE125 CHASSIS ELECTRICAL EQUIPMENT ('80-'81 A7 OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
RELAY-TURN SIGNAL
27002-013
|
$44.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
HORN
27003-1008
|
$49.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE,LEAD
26011-093
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND,L=123
92072-030
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND,L=123
92072-030
|
$4.66 | ||
|
Unavailable |
|||
|
#8
BAND,L=218
92072-032
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND,L=218
92072-032
|
$4.66 | ||
|
Unavailable |
|||
|
#9
COVER,REAR HARNESS
14025-1183
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE,6X7X380
92059-1143
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE ASSY
26004-1010
|
$30.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE,GLASS TUBE,6.4X30,15
26006-1003
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE,GLASS TUBE,6.4X30,10
26006-1002
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER RUBBER
92075-1044
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
YUA BAT 6N6-1D-2
K26012-034
|
$43.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,FUSE
11034-1368
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRING HARNESS,MAIN
26001-1133
|
$96.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRING HARNESS,MAIN
26001-1161
|
$93.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
HARNESS,MAIN
26001-1225
|
$103.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRING HARNESS,TL LMP
26002-046
|
$16.60 | ||
|
Unavailable |
|||
