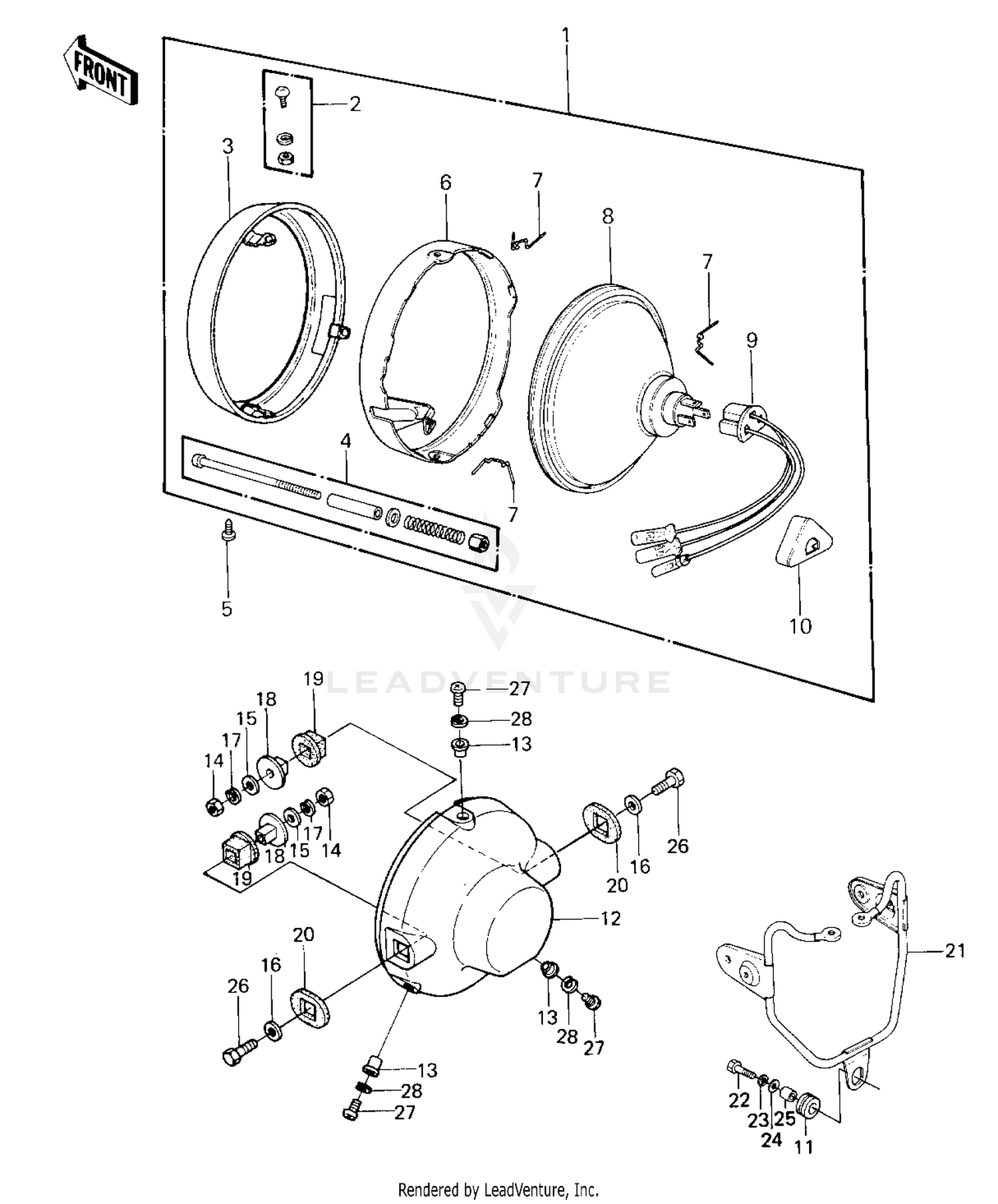

1980 Kawasaki KE125 HEADLIGHT ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP UNIT,HEAD
23004-1030
|
$211.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW SET,LENS UNIT
23013-007
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM,HEAD LAMP
23006-1004
|
$66.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW ASSY,FOCUS AJST
23013-5001
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER,SEALED BEAM
23072-002
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP,HEAD LAMP LENS
23009-015
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEALED BEAM UNIT
23007-055
|
$64.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
SOCKET ASSY,HD LIGHT
23008-044
|
$20.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,HD LAMP SOCKET
23081-001
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
92075-209
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY-COMP-HEAD LAMP
23005-1007-6Z
Superseded by 23005-1007
|
$75.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
23021-010
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN,8MM
411D0800
Superseded by 411S0800
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR,HEAD LAMP
92027-1105
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER RUBBER,HD LAMP
92075-1077
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER RUBBER,HD LAMP
92075-1078
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET,HEAD LMP BODY
11034-1701
|
$84.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR,6.8X10X12
92027-241
Superseded by 92027-162
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-SMALL,8X32
114N0832
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Unavailable |
|||
|
#28
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
