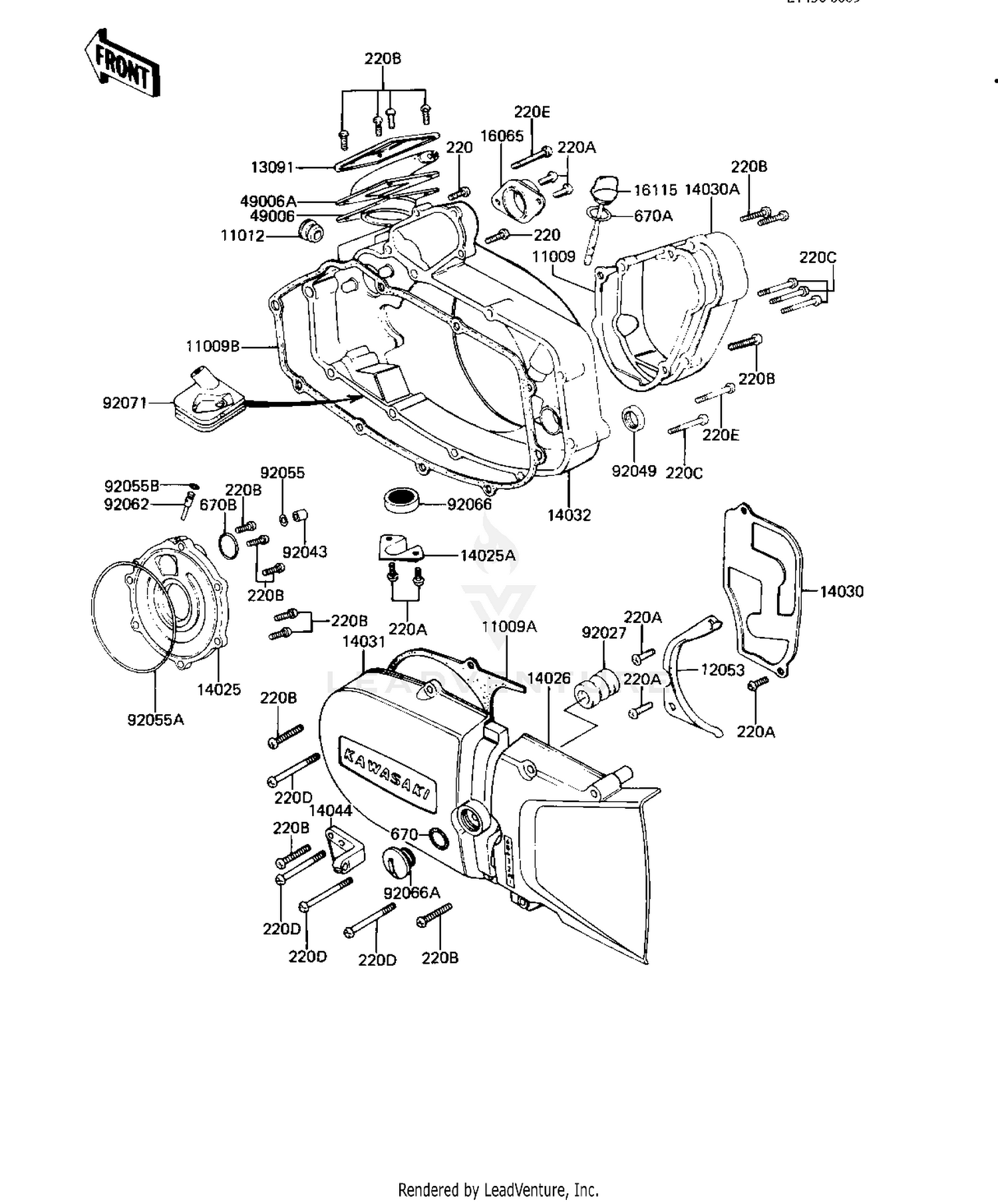

1980 Kawasaki KE125 ENGINE COVERS ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,CARBURETOR CVR
11009-1277
Superseded by 11060-1520
|
$13.54 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,GENERATOR COVR
14045-017
Superseded by 11060-1599
|
$13.54 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET, CLUTCH COVER
14046-029
Superseded by 11060-1530
|
$31.84 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP CARB MOUNT HOLE
14039-001
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE,CHAIN
14077-003
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,CARBRETOR CAP
14065-007
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,ROTARY DISC
14019-055
|
$80.14 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,FUEL DRAIN
14076-006
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER CHAIN
14026-1029
Superseded by 14026-1030
|
$62.25 | ||
|
Available to order. Add to View Price |
|||
|
#14030
COVER,OIL PUMP
14030-060
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#14030A
COVER,CARBURETOR
14030-1013
|
$84.25 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER,MAGNETO,F.BLACK
14031-1053
|
$140.60 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER,CLUTCH
14032-1035
|
$132.52 | ||
|
Available to order. Add to View Price |
|||
|
#14044
HOLDER,WIRE GUIDE
14044-012
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER,CARBURETOR
16065-033
|
$23.52 | ||
|
Available to order. Add to View Price |
|||
|
#16115
PLUG,OIL FILLER
16115-020
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#49006
CAP,CARBURETOR
14038-039
|
$49.57 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
CAP,CARBURETOR
14038-040
|
$20.52 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-207
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN DOWEL 8X16
92042-017
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SB16244
92049-002
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,8MM
92055-029
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
O RING,VALVE COVER
92055-057
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
O RING
92055-080
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE
92062-012
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#92066
DRAIN,FUEL
16116-006
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,L.H ENG COVER
92067-017
|
$18.52 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,OVERFLOW
16136-009
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN+-
214B0516A
Superseded by 214AA0516
|
$0.17 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#220C
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#220D
SCREW-PAN-CROS,6X35
220B0635
Superseded by 220AA0635
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#220E
SCREW-PAN HEAD,6X45
220B0645
Superseded by 220AA0645
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#670A
O RING,20MM
670B2020
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#670B
O RING,28MM
670B3028
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
