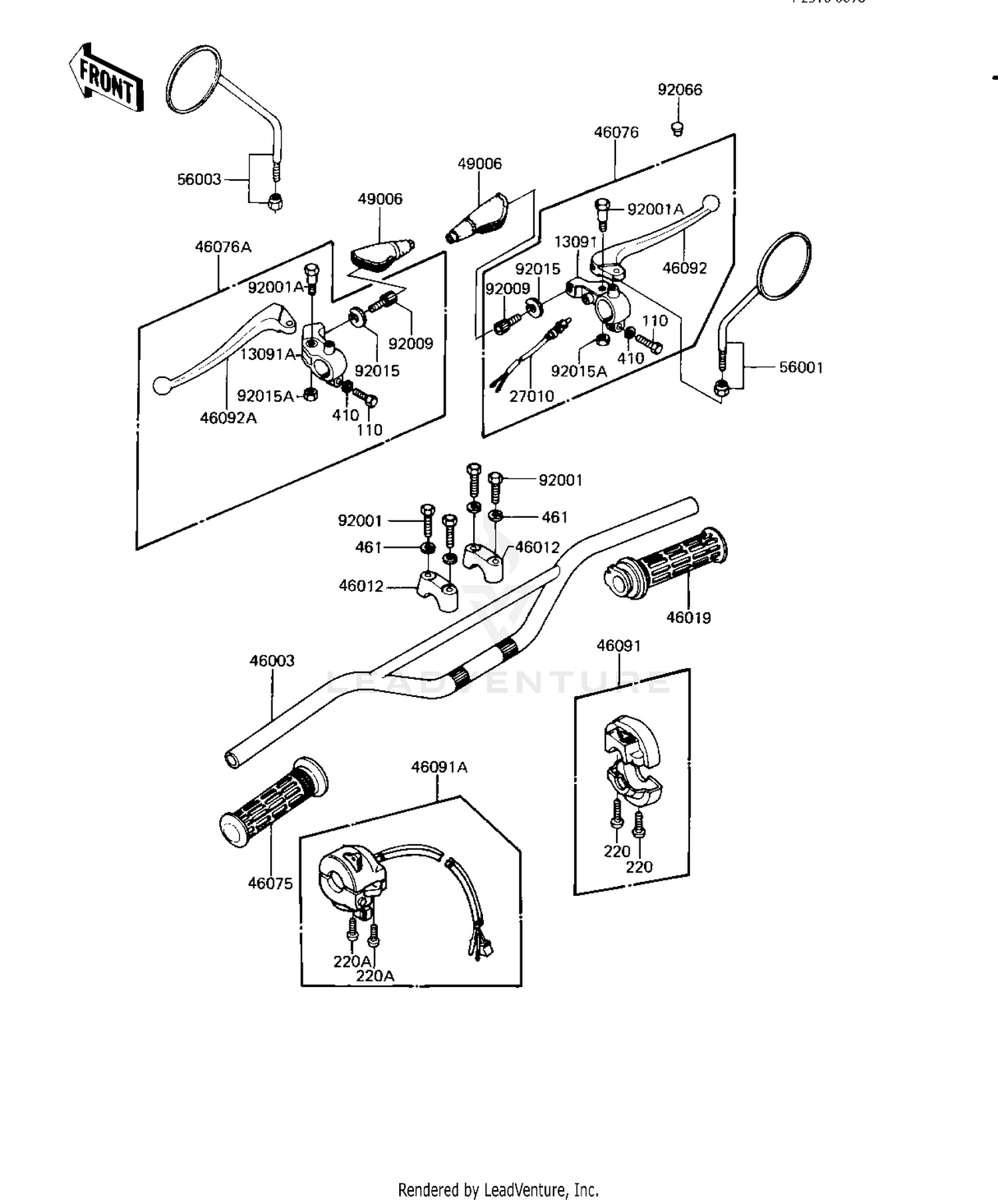

1980 Kawasaki KE125 HANDLEBAR ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER-FR BRK LEV,BLK
46060-009-21
|
$38.04 | ||
|
Available to order. Add to View Price |
|||
|
#13091A
HOLDER,F.BLACK
46094-011-21
|
$33.50 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH-FR. BRAKE LAMP
27021-004
|
$33.46 | ||
|
Available to order. Add to View Price |
|||
|
#46003
HANDLEBAR
46004-033
|
$178.30 | ||
|
Available to order. Add to View Price |
|||
|
#46012
HOLDER,HANDLEBAR
46012-014
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#46019
GRIP ASSY,THROTTLE
46019-1005
|
$34.63 | ||
|
Available to order. Add to View Price |
|||
|
#46075
GRIP,L.H.
46075-1004
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#46076
LEVER ASSY,FRNT BRAKE
46021-031
|
$43.95 | ||
|
Unavailable |
|||
|
#46076A
LEVER ASSY,CLUTCH
46076-044
|
$38.59 | ||
|
Available to order. Add to View Price |
|||
|
#46091
HOUSING ASSY,CONT,R.H
46091-1041
|
$57.48 | ||
|
Unavailable |
|||
|
#46091A
HOUSING-ASSY-CONTROL
46091-1097
|
$87.41 | ||
|
Available to order. Add to View Price |
|||
|
#46092
LEVER FRONT BRAKE
46058-004
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#46092A
LEVER-CLUTCH
46092-015
|
$19.34 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,LEVER HOLDER
49006-1017
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#56001
REAR VIEW MIRROR,R.H
56002-020
|
$62.24 | ||
|
Available to order. Add to View Price |
|||
|
#56003
REAR VIEW MIRROR,L.H
56003-009
|
$62.24 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT 8X38
92001-1405
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,HEX HEAD,5X22
92007-046
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,CABLE ADJUST,8MM
46055-003
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CABLE ADJUST LOCK,8MM
46056-005
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT-LOCK,5MM
92019-014
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
110N0625
Superseded by 112N0625
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220B0518
Superseded by 220AA0518
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X22
220B0522
Superseded by 220AA0522
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,6MM
410D0600
Superseded by 410S0600
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
