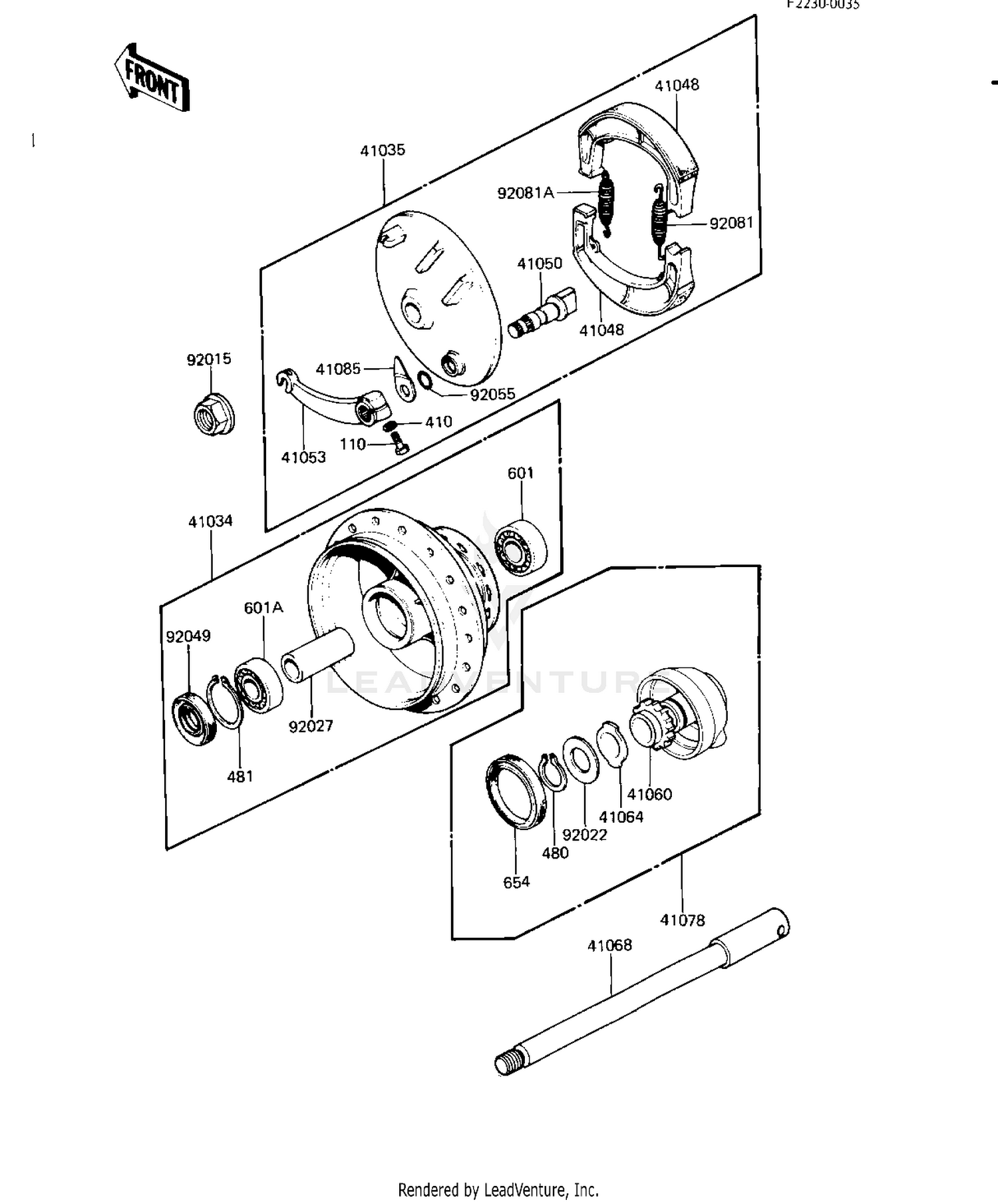

1980 Kawasaki KE125 FRONT HUB/BRAKE ('82-'83 A9/A10) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,FR BRK
41034-1024
|
$199.62 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASY,FR BRK
41035-1035
|
$220.59 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-015
Superseded by 41048-1091
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM SHAFT,FRONT BRAKE
41050-012
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER,FRNT BRAKE CAM
41053-020
|
$63.87 | ||
|
Available to order. Add to View Price |
|||
|
#41060
GEAR,SPEEDOMETER
41059-024
|
$34.04 | ||
|
Available to order. Add to View Price |
|||
|
#41064
RECEIVER,SPEED GEAR
41064-011
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FR
41068-1064
|
$45.34 | ||
|
Available to order. Add to View Price |
|||
|
#41078
CASE-ASSY-METER GEAR
41078-1019
|
$82.19 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR,BK SHOE
41085-002
Superseded by 41085-008
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,12MM
92015-1156
Superseded by 92015-1426
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,THRUST
41065-004
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#92027
SPACER,FR HUB BEARING
41039-025
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,FR BK DRUM
92050-059
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,11MM
92055-004
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1766
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE SHOE
92081-1550
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0622
Superseded by 112BA0622
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,19MM
480J1900
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,37MM
481J3700
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6201C3
601B6201
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING BALL #6301
601B6301
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#654
OIL SEAL
654A405208
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
