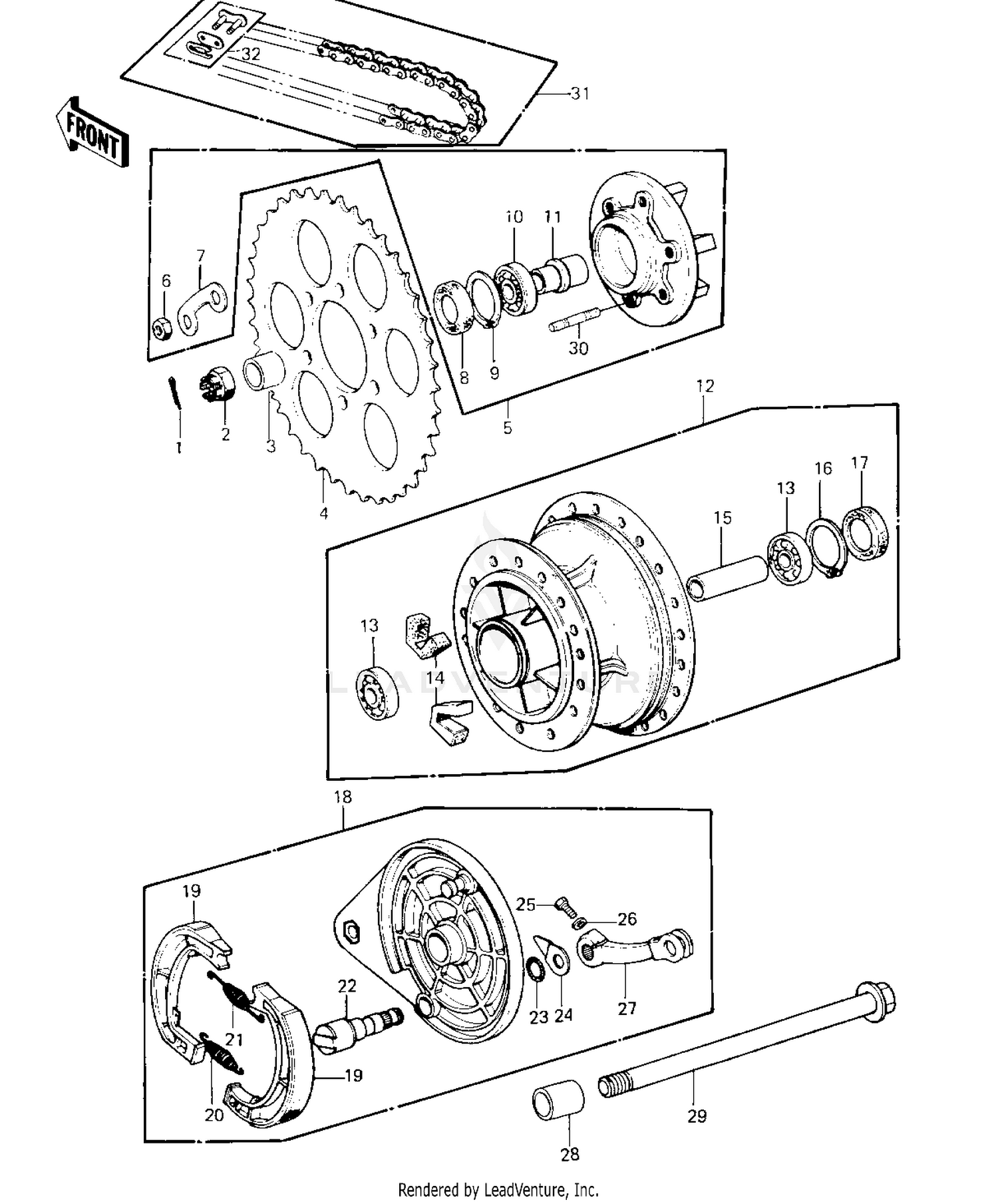

1980 Kawasaki KE125 REAR HUB/BRAKE/CHAIN ('80-'81 A7/A8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
Item | MSRP | Qty | |
---|---|---|---|
#1
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.01 | ||
Available to order. Add to View Price |
|||
#2
NUT CASTLE 14MM
92103-006
|
$23.96 | ||
Available to order. Add to View Price |
|||
#3
COLLAR,RR BRAKE,L=22
92027-1253
|
$8.96 | ||
Available to order. Add to View Price |
|||
#4
REAR SPROCKET.50T
42041-146
|
$89.74 | ||
Available to order. Add to View Price |
|||
#4
REAR SPROCKET,54T
42041-147
|
$78.84 | ||
Available to order. Add to View Price |
|||
#5
COUPLING-ASSY,RR HUB
42033-1028
|
$133.86 | ||
Available to order. Add to View Price |
|||
#6
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
Available to order. Add to View Price |
|||
#7
WASHER,SPROCKET LOCK
92088-019
|
$5.79 | ||
Available to order. Add to View Price |
|||
#8
SEAL-OIL,26X42X8
92050-060
|
$16.75 | ||
Available to order. Add to View Price |
|||
#9
RING-SNAP,42MM
92033-1041
|
$5.79 | ||
Available to order. Add to View Price |
|||
#10
BEARING BALL #6004
601B6004
|
$12.13 | ||
Available to order. Add to View Price |
|||
#11
SLEEVE,RR HUB COUPLNG
42036-018
|
$24.51 | ||
Available to order. Add to View Price |
|||
#12
DRUM-ASSY,RR BRK
41034-1025
|
$482.58 | ||
Available to order. Add to View Price |
|||
#13
BEARING-BALL,#6202C3
601B6202
|
$8.26 | ||
Available to order. Add to View Price |
|||
#14
DAMPER,REAR HUB SHOCK
42014-023
|
$16.45 | ||
Available to order. Add to View Price |
|||
#15
SPACER,RR HUB BEARING
42010-029
|
$20.52 | ||
Available to order. Add to View Price |
|||
#16
CIRCLIP-TYPE-C,35MM
481J3500
|
$1.92 | ||
Available to order. Add to View Price |
|||
#17
SEAL-OIL,22X35X8
654A223508
Superseded by 92049-1348
|
$9.04 | ||
Available to order. Add to View Price |
|||
#18
PANEL-ASSY-BRAKE,RR
41035-1036
Superseded by 41035-1356
|
$259.22 | ||
Available to order. Add to View Price |
|||
#19
SHOE-BRAKE
42019-010
Superseded by 41048-1076
|
$35.27 | ||
Available to order. Add to View Price |
|||
#20
SPRING,BRAKE SHOE
92081-1550
|
$8.90 | ||
Available to order. Add to View Price |
|||
#21
SPRING,BRAKE SHOE
92081-1766
|
$7.53 | ||
Available to order. Add to View Price |
|||
#22
CAM SHAFT,REAR BRAKE
42026-025
|
$17.68 | ||
Available to order. Add to View Price |
|||
#23
0 RING,11MM
92055-004
|
$4.48 | ||
Available to order. Add to View Price |
|||
#24
INDICATOR,BK SHOE
41085-002
Superseded by 41085-008
|
$13.01 | ||
Available to order. Add to View Price |
|||
#25
BOLT-UPSET
112G0622
Superseded by 112BA0622
|
$3.48 | ||
Available to order. Add to View Price |
|||
#26
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
Available to order. Add to View Price |
|||
#27
LEVER,REAR BRAKE CAM
42029-030
|
$72.84 | ||
Available to order. Add to View Price |
|||
#28
COLLAR,RR BRAKE,L=25
92027-1254
|
$21.02 | ||
Available to order. Add to View Price |
|||
#29
AXLE,REAR,15X247
41068-1049
|
$60.77 | ||
Available to order. Add to View Price |
|||
#30
STUD,8X17
92004-1015
|
$4.69 | ||
Available to order. Add to View Price |
|||
#31
CHAIN,DRIVE,EK428SH-R
92057-030
Superseded by 92057-1341
|
$95.86 | ||
Available to order. Add to View Price |
|||
#32
JOINT-CHAIN
92058-1015
|
$5.07 | ||
Available to order. Add to View Price |
